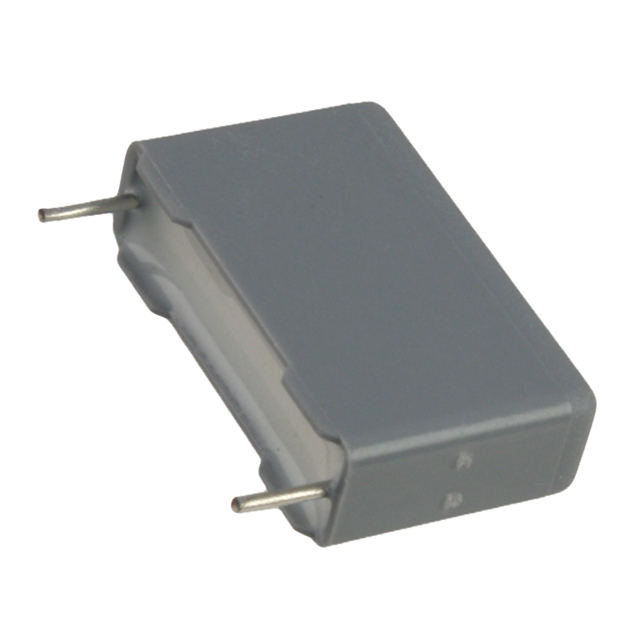

BFC23386 Series

Catalog

SAFETY CAPACITORS .012UF 20% 300VOLTS

Part	Size / Dimension Length	Size / Dimension Width	Height - Seated (Max)	Voltage Rating - AC	Tolerance	Capacitance	Lead Spacing	Ratings	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Voltage Rating - DC	Package / Case	Termination	Dielectric Material	Mounting Type
Vishay Dale BFC233862123	0.689 in	0.197 in	0.433 in	300 V	20 %	0.012 µF	0.591 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233860152	0.394 in	0.157 in	0.354 in	300 V	20 %	1500 pF	0.295 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233862823	1.024 in	0.335 in	0.709 in	300 V	20 %	0.082 µF	0.886 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233860394	1.22 in	0.709 in	1.102 in	300 V	20 %	0.39 µF	1.083 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233864392	0.394 in	0.197 in	0.413 in	300 V	20 %	3900 pF	0.295 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233868165	0.492 in	0.197 in	0.433 in	300 V	10 %	5600 pF	0.394 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233868175	1.024 in	0.276 in	16.51 mm	300 V	10 %	47 nF	0.591 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233868404	0.492 in	0.157 in	0.394 in	300 V	20 %	1800 pF	0.394 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233868452	0.492 in	0.157 in	0.394 in	300 V	10 %	3300 pF	0.394 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
Vishay Dale BFC233865102	0.394 in	0.157 in	0.354 in	300 V	10 %	1000 pF	0.295 in	AEC-Q200 Y2	-55 °C	105 °C	Automotive EMI RFI Suppression	1 kV	Radial	PC Pins	Metallized Polypropylene (PP)	Through Hole
