CONSMB003 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

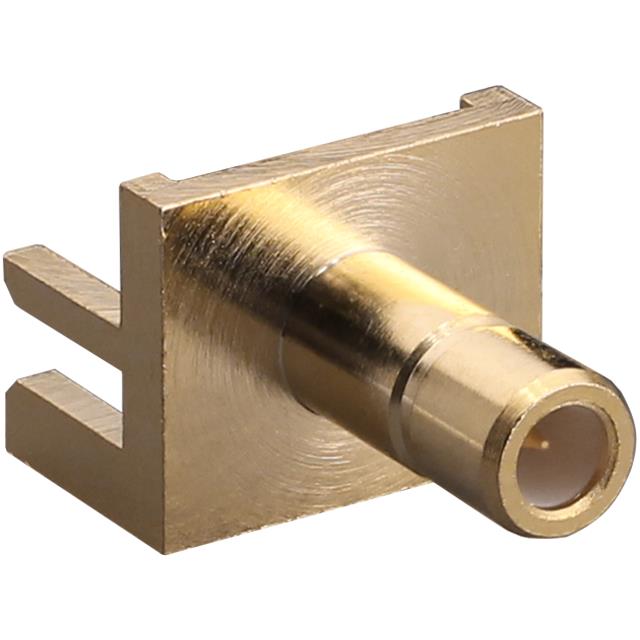

CONN SMB JACK STR 50OHM EDGE MNT
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Body Finish | Center Contact Plating | Shield Termination | Mounting Type | Number of Ports | Connector Style | Frequency - Max [Max] | Housing Color | Contact Termination | Center Contact Material | Fastening Type | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 750 VDC | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 500 | Gold | Gold | Solder | Board Edge End Launch | 1 | SMB | 6.5 GHz | Gold | Solder | Brass | Snap-On | 50 Ohms | Jack Male Pin |
