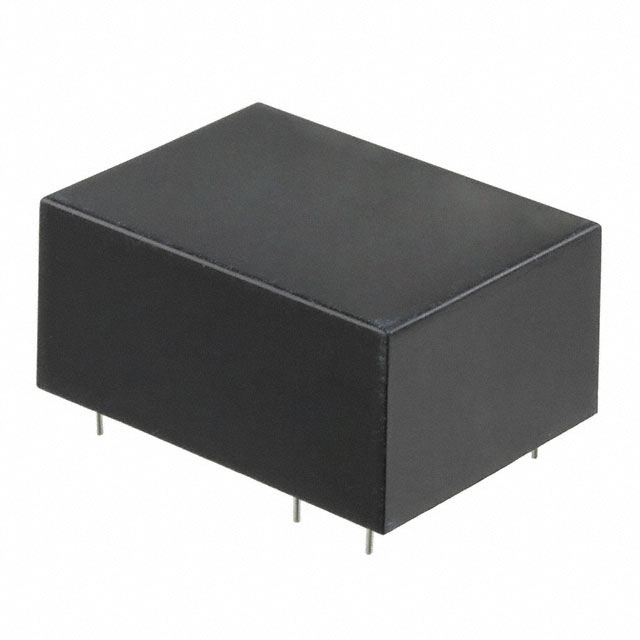

RAC04-S_DC/230 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 12V 0.333A 4W 6-PIN TUBE

Part	Load Regulation	Line Regulation	Weight [custom]	Weight [custom]	Approval Agency	Applications	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Number of Outputs	Efficiency	Voltage - Output 1	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Power (Watts)	Current - Output (Max)
Recom Power RAC04-12SC/230	0.5 %	0.2 %	0.069 lb	31.3 g	CE cULus	ITE (Commercial)	Enclosed	80 ¯C	-40 °C	SCP	17.1 mm	1.07 in	1.44 in	36.7 mm	27.2 mm	0.67 in	Through Hole	1	77 %	12 V	7-DIP Module 6 Leads	80 VAC	264 VAC	333 mA	4 W
Recom Power RAC04-12DC/230					CE cULus	ITE (Commercial)	Enclosed	80 ¯C	-40 °C	SCP	17.1 mm	1.07 in	1.44 in	36.7 mm	27.2 mm	0.67 in	Through Hole	2	78 %	12 V	7-DIP Module 6 Leads	80 VAC	264 VAC	166 mA	4 W
Recom Power RAC04-05DC/230					CE cULus	ITE (Commercial)	Enclosed	80 ¯C	-40 °C	SCP	17.1 mm	1.07 in	1.44 in	36.7 mm	27.2 mm	0.67 in	Through Hole	2	76 %	5 V	7-DIP Module 6 Leads	80 VAC	264 VAC		4 W	400 mA
Recom Power RAC04-05SC/230					CE cULus	ITE (Commercial)	Enclosed	80 ¯C	-40 °C	SCP	17.1 mm	1.07 in	1.44 in	36.7 mm	27.2 mm	0.67 in	Through Hole	1	75 %	5 V	7-DIP Module 6 Leads	80 VAC	264 VAC	0.8 A	4 W

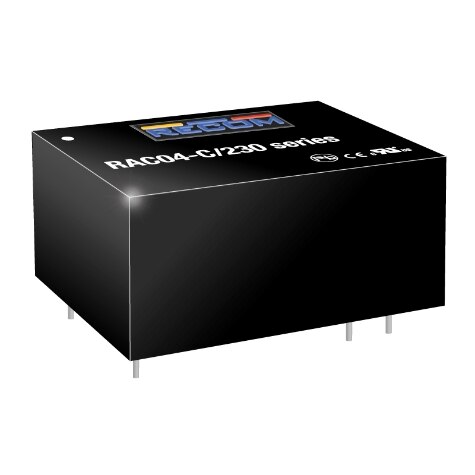

Recom Power RAC04-15SC/230					CE cULus	ITE (Commercial)	Enclosed	80 ¯C	-40 °C	SCP	17.1 mm	1.07 in	1.44 in	36.7 mm	27.2 mm	0.67 in	Through Hole	1	78 %	15 V	7-DIP Module 6 Leads	80 VAC	264 VAC	267 mA	4 W
Recom Power RAC04-3.3SC/230					CE cULus	ITE (Commercial)	Enclosed	80 ¯C	-40 °C	SCP	17.1 mm	1.07 in	1.44 in	36.7 mm	27.2 mm	0.67 in	Through Hole	1	72 %	3.3 V	7-DIP Module 6 Leads	80 VAC	264 VAC	1.2 A	4 W
Recom Power RAC04-0512DC/230					CE cULus	ITE (Commercial)	Enclosed	80 ¯C	-40 °C	SCP	17.1 mm	1.07 in	1.44 in	36.7 mm	27.2 mm	0.67 in	Through Hole	2	75 %	5 V	7-DIP Module 6 Leads	80 VAC	264 VAC		4 W	33 mA 720 mA
