CQB50W8 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 50W 9-75VIN 48VOUT 1.05A NLOG

Part	Standard Number	Package / Case	Supplier Device Package	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Type	Efficiency	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Control Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Cincon Electronics Co. LTD CQB50W8-36S48N	62368-1	Full Brick	Full Brick	Adjustable Output Remote On/Off	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Isolated Module	91 %	ITE (Commercial) Railway	3000 V	75 V	48 V	105 C	-40 °C	CB CE cURus UKCA	50 W	Through Hole	1	1.05 A	Active Low Enable

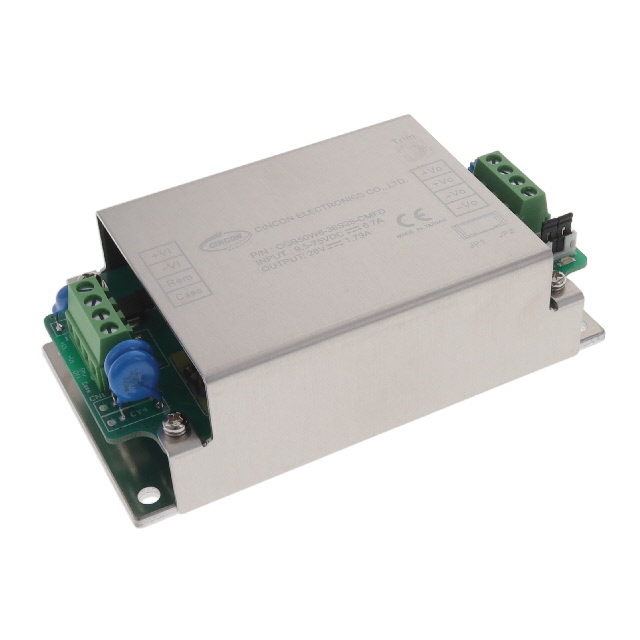

Cincon Electronics Co. LTD CQB50W8-36S28-CMFD	50155 62368-1				116.8 mm						9.5 V	Enclosed	90 %	ITE (Commercial) Railway	4.2 kV	75 V	28 V	105 C	-40 °C	CE	50 W	Chassis Mount	1	1.79 A		37 mm	1.46 in	63.4 mm	2.49 in	4.6 in
Cincon Electronics Co. LTD CQB50W8-36S12	62368-1	Full Brick	Full Brick	Adjustable Output Remote On/Off	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Isolated Module	91 %	ITE (Commercial) Railway	3000 V	75 V	12 V	105 C	-40 °C	CB CE cURus UKCA	50 W	Through Hole	1	4.17 A	Active High Enable
Cincon Electronics Co. LTD CQB50W8-36S24	62368-1	Full Brick	Full Brick	Adjustable Output Remote On/Off	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Isolated Module	90 %	ITE (Commercial) Railway	3000 V	75 V	24 V	105 C	-40 °C	CB CE cURus UKCA	50 W	Through Hole	1	2.08 A	Active High Enable

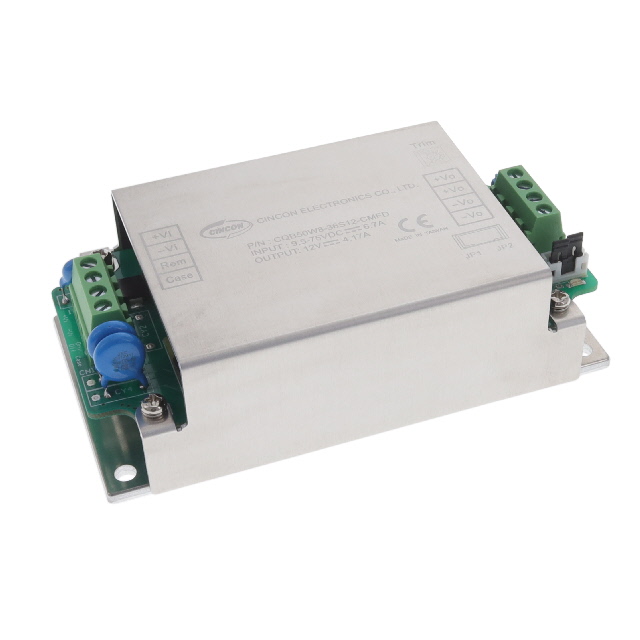

Cincon Electronics Co. LTD CQB50W8-36S12-CMFD	50155 62368-1				116.8 mm						9.5 V	Enclosed	90 %	ITE (Commercial) Railway	4.2 kV	75 V	12 V	105 C	-40 °C	CE	50 W	Chassis Mount	1	4.17 A		37 mm	1.46 in	63.4 mm	2.49 in	4.6 in
Cincon Electronics Co. LTD CQB50W8-36S28	62368-1	Full Brick	Full Brick	Adjustable Output Remote On/Off	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Isolated Module	90 %	ITE (Commercial) Railway	3000 V	75 V	28 V	105 C	-40 °C	CB CE cURus UKCA	50 W	Through Hole	1	1.79 A	Active High Enable
Cincon Electronics Co. LTD CQB50W8-36S28-CMFC	50155 62368-1				116.8 mm	2.4 in	1.26 "	4.6 "			9.5 V	Open Frame	90 %	ITE (Commercial) Railway	4.2 kV	75 V	28 V	105 C	-40 °C	CE	50 W	Chassis Mount	1	1.79 A		32 mm		61 mm
Cincon Electronics Co. LTD CQB50W8-36S28N	62368-1	Full Brick	Full Brick	Adjustable Output Remote On/Off	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	9 V	Isolated Module	90 %	ITE (Commercial) Railway	3000 V	75 V	28 V	105 C	-40 °C	CB CE cURus UKCA	50 W	Through Hole	1	1.79 A	Active Low Enable

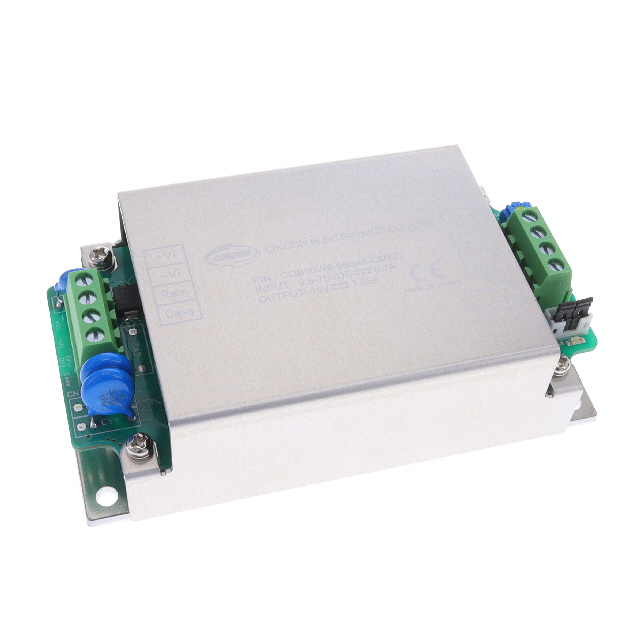

Cincon Electronics Co. LTD CQB50W8-36S48-CMFD	50155 62368-1				116.8 mm						9.5 V	Enclosed	90 %	ITE (Commercial) Railway	4.2 kV	75 V	48 V	105 C	-40 °C	CE	50 W	Chassis Mount	1	1.05 A		37 mm	1.46 in	63.4 mm	2.49 in	4.6 in
Cincon Electronics Co. LTD CQB50W8-36S15-CMFD	50155 62368-1				116.8 mm						9.5 V	Enclosed	90 %	ITE (Commercial) Railway	4.2 kV	75 V	15 V	105 C	-40 °C	CE	50 W	Chassis Mount	1	3.33 A		37 mm	1.46 in	63.4 mm	2.49 in	4.6 in
