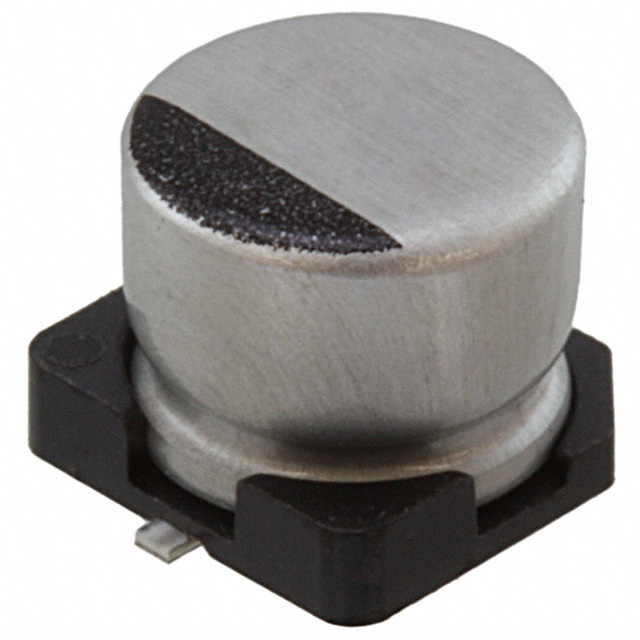

SEV Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Mounting Type	Ripple Current @ High Frequency	Tolerance	Ratings	Applications	Lifetime @ Temp.	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Rubycon 35SEV100M8X10.5	100 µF	Radial Can - SMD	0.315 in	8 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	Surface Mount	336 mA	20 %	AEC-Q200	Automotive	2000 Hrs	280 mA	85 °C	-40 C	Polar	35 V	0.413 "	10.5 mm
Rubycon 10SEV470M8X10.5	470 µF	Radial Can - SMD	0.315 in	8 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	Surface Mount	456 mA	20 %	AEC-Q200	Automotive	2000 Hrs	380 mA	85 °C	-40 C	Polar	10 V	0.413 "	10.5 mm
Rubycon 50SEV47M8X10.5	47 µF	Radial Can - SMD	0.315 in	8 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	Surface Mount	360 mA	20 %	AEC-Q200	Automotive	2000 Hrs	240 mA	85 °C	-40 C	Polar	50 VDC	0.413 "	10.5 mm
Rubycon 63SEV330M18X16.5	330 µF	Radial Can - SMD	0.709 in	18 mm	19 mm	19 mm	0.748 in	0.748 in	Surface Mount	816 mA	20 %	AEC-Q200	Automotive	2000 Hrs	680 mA	85 °C	-40 C	Polar	63 V		17 mm	0.669 "
Rubycon 100SEV220M16X21.5	220 µF	Radial Can - SMD	0.63 in	16 mm	17 mm	17 mm	0.669 in	0.669 in	Surface Mount	798 mA	20 %	AEC-Q200	Automotive	2000 Hrs	665 mA	85 °C	-40 C	Polar	100 V				0.866 in	22 mm

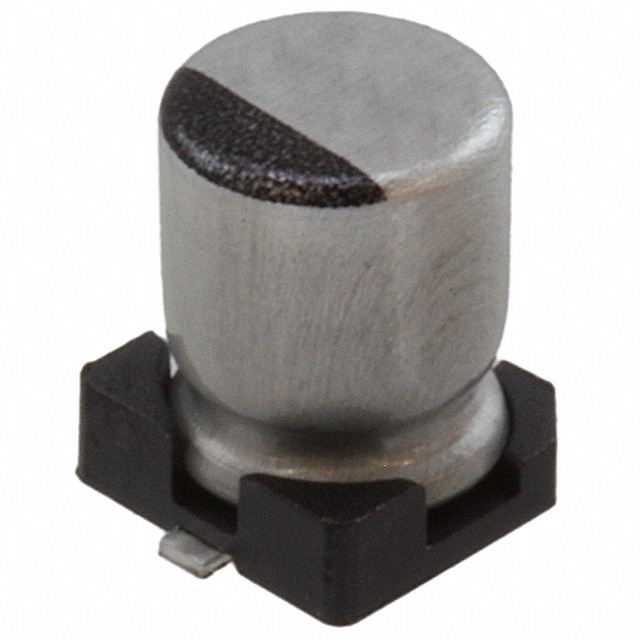

Rubycon 6.3SEV22M4X5.5	22 µF	Radial Can - SMD	0.157 in	4 mm	4.3 mm	4.3 mm	0.169 in	0.169 "	Surface Mount	43.5 mA	20 %	AEC-Q200	Automotive	2000 Hrs	29 mA	85 °C	-40 C	Polar	6.3 VDC	0.217 "	5.5 mm
Rubycon 35SEV4R7M4X5.5	4.7 µF	Radial Can - SMD	0.157 in	4 mm	4.3 mm	4.3 mm	0.169 in	0.169 "	Surface Mount	27 mA	20 %	AEC-Q200	Automotive	2000 Hrs	18 mA	85 °C	-40 C	Polar	35 V	0.217 "	5.5 mm
Rubycon 16SEV3300M16X21.5	3.3 mF	Radial Can - SMD	0.63 in	16 mm	17 mm	17 mm	0.669 in	0.669 in	Surface Mount	1.6675 A	20 %	AEC-Q200	Automotive	2000 Hrs	1.45 A	85 °C	-40 C	Polar	16 V				0.866 in	22 mm
