SSL1D Series

Catalog

SSR RELAY SPST-NO 3.5A 1-24V

Part	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Load Current	Approval Agency	Voltage - Load [Max]	Voltage - Load [Min]	Supplier Device Package	Output Type	Voltage - Input [Max]	Voltage - Input [Min]
SCHNEIDER ELECTRIC SSL1D03BD	Through Hole	4-SIP Module	-20 ░C	70 °C	PC Pin	3.5 A	CE CSA GOST UL	24 V	1 V	4-SIP	DC	30 V	15 V
SCHNEIDER ELECTRIC SSL1D101BD	Through Hole	4-SIP Module	-20 ░C	70 °C	PC Pin	100 mA	CE CSA GOST UL	48 V	1 V	4-SIP	DC	30 V	16 V
SCHNEIDER ELECTRIC SSL1D03JDPV	DIN Rail	Module	-20 ░C	70 °C	Screw Terminal	3.5 A	CE CSA GOST UL	24 V	1 V		DC	12 VDC	4 V
SCHNEIDER ELECTRIC SSL1D03JDPR	DIN Rail	Module	-20 ░C	70 °C	Screw Terminal	3.5 A	CE CSA GOST UL	24 V	1 V		DC	12 VDC	4 V
SCHNEIDER ELECTRIC SSL1D03JD	Through Hole	4-SIP Module	-20 ░C	70 °C	PC Pin	3.5 A	CE CSA GOST UL	24 V	1 V	4-SIP	DC	12 VDC	3 V
SCHNEIDER ELECTRIC SSL1D101JDPV	DIN Rail	Module	-20 ░C	70 °C	Screw Terminal	100 mA	CE CSA GOST UL	48 V	1 V		DC	12 VDC	4 V

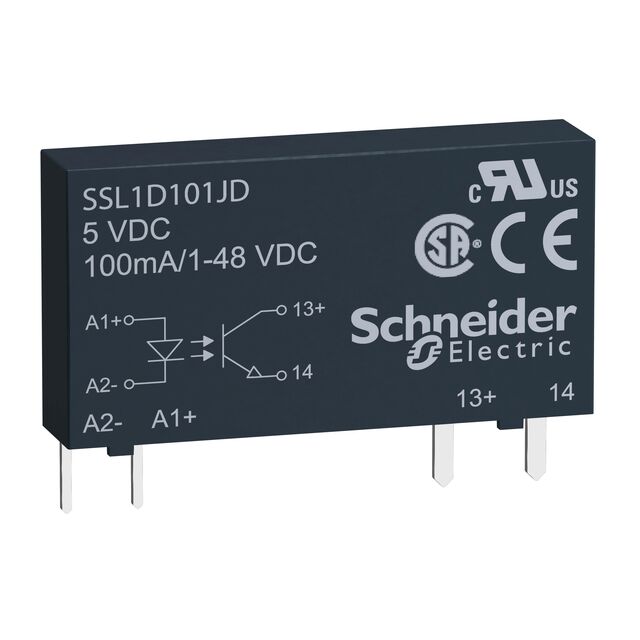

SCHNEIDER ELECTRIC SSL1D101JD	Through Hole	4-SIP Module	-20 ░C	70 °C	PC Pin	100 mA	CE CSA GOST UL	48 V	1 V	4-SIP	DC	12 VDC	3 V
SCHNEIDER ELECTRIC SSL1D101BDPV	DIN Rail	Module	-20 ░C	70 °C	Screw Terminal	100 mA	CE CSA GOST UL	48 V	1 V		DC	30 V	16 V
