CYT3BB5 Series

Manufacturer: INFINEON

Catalog

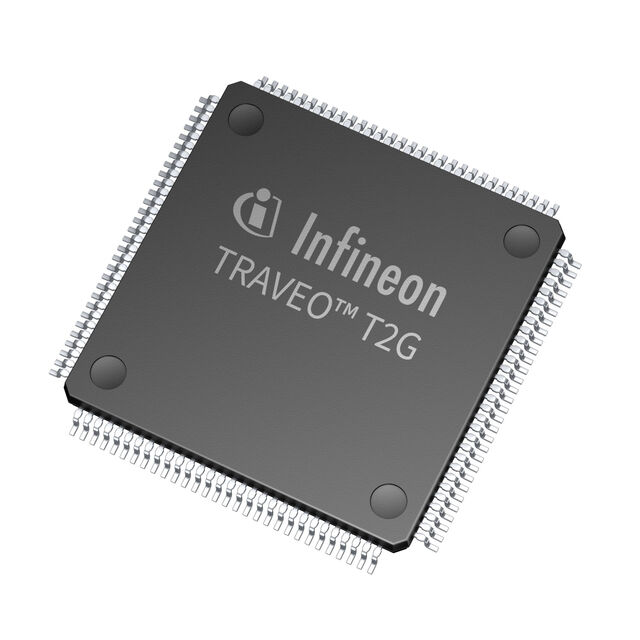

IC MCU 32BIT 4MB FLASH 100LQFP

Part	Connectivity	Number of I/O	Supplier Device Package	EEPROM Size	RAM Size	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Data Converters	Program Memory Size	Peripherals	Program Memory Type	Core Size	Core Size	Core Processor	Oscillator Type	Mounting Type	Speed	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]
INFINEON CYT3BB5CEBQ1AESGS	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	105 °C	A/D 37x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBQ1AEEGST	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	125 °C	A/D 37x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBQ0AESGS	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	105 °C	A/D 55x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBR0AESGST	eMMC I2C IrDA LINbus Microwire QSPI SD SDIO SmartCard SPI SSP UART/USART USB	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	105 °C	A/D 55x12b SAR	4.063 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM Temp Sensor WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBQ0AEEGS	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	125 °C	A/D 55x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBQ0AESGST	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	105 °C	A/D 55x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBR1AESGST	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	105 °C	A/D 37x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBQ0AEEGST	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	125 °C	A/D 55x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
INFINEON CYT3BB5CEBQ1AESGST	CANbus eMMC/SD Ethernet I2C LINbus SPI UART/USART	72	100-TEQFP (14x14)	256 K	768 K	100-LQFP Exposed Pad	-40 °C	105 °C	A/D 37x12b SAR	4.0625 MB	Brown-out Detect/Reset DMA I2S LVD POR PWM WDT	FLASH	32 Bit	Dual-Core	ARM® Cortex®-M0+ ARM® Cortex®-M7F	External Internal	Surface Mount	100 MHz 250 MHz	5.5 V	2.7 V
