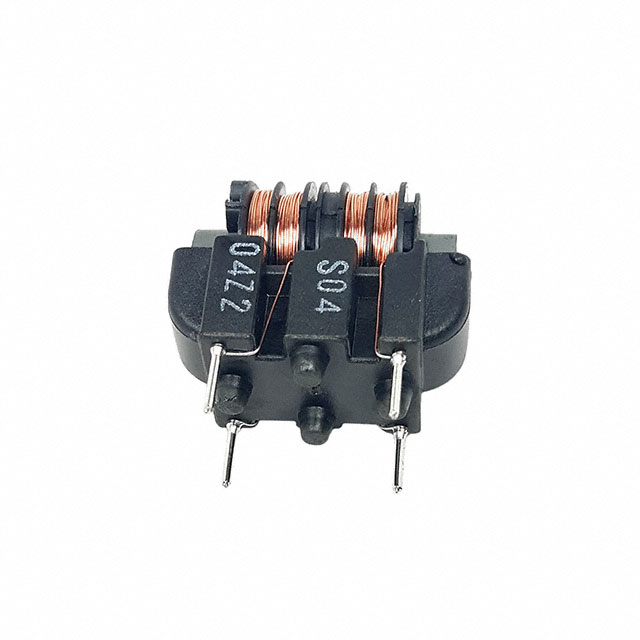

SSR10VS Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE CHOKE, 1.3MH, 3A
| Part | Number of Lines | DC Resistance (DCR) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Package / Case | Current Rating (Max) [Max] | Inductance @ Frequency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height (Max) [z] | Height (Max) [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2 | 60 mOhm | 120 °C | -25 °C | 250 V | Vertical 4 PC Pin | 3 A | 1.3 mH 10 kHz | 23.5 mm | 13 mm | 0.512 " | 0.925 " | 21 mm | 0.827 in | Through Hole |
 KEMET | 2 | 100 mOhm | 120 °C | -25 °C | 250 V | Vertical 4 PC Pin | 2.2 A | 2.6 mH 10 kHz | 23.5 mm | 13 mm | 0.512 " | 0.925 " | 21 mm | 0.827 in | Through Hole |
KEMET | 2 | 330 mOhm | 120 °C | -25 °C | 250 V | Vertical 4 PC Pin | 1.1 A | 10 kHz 11 mH | 23.5 mm | 13 mm | 0.512 " | 0.925 " | 21 mm | 0.827 in | Through Hole |
KEMET | 2 | 1.6 Ohm | 120 °C | -25 °C | 250 V | Vertical 4 PC Pin | 500 mA | 49.5 mH | 23.5 mm | 13 mm | 0.512 " | 0.925 " | 21 mm | 0.827 in | Through Hole |
