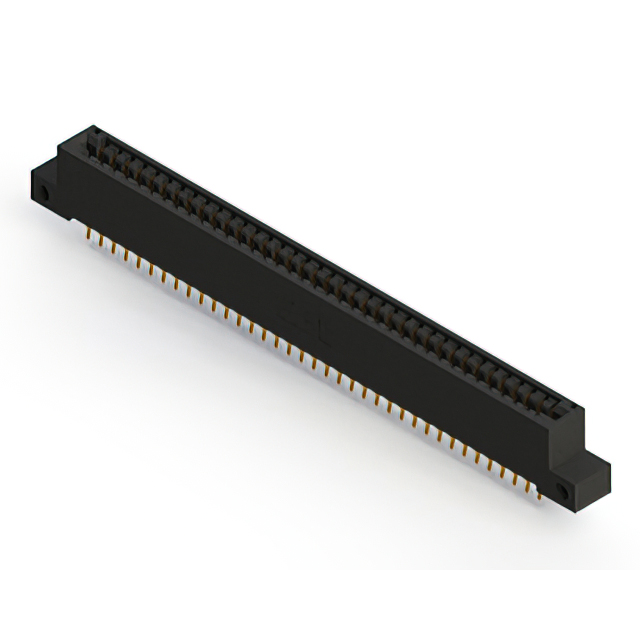

396-074 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 74POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions/Bay/Row | Gender | Pitch | Pitch | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Contact Finish | Number of Rows [custom] | Contact Type | Contact Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Color | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 3.25 mm | 0.128 " | Solder | Gold | 2 | Cantilever | Copper Alloy | Card Extender | -40 C | 105 ░C | Non Specified - Dual Edge | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 2.95 mm | 0.116 " | Wire Wrap | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | Wire Wrap | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 3.25 mm | 0.128 " | Solder | Gold | 2 | Cantilever | Copper Alloy | Card Extender | -40 C | 105 ░C | Non Specified - Dual Edge | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 3.25 mm | 0.128 " | Solder Wire Wrap | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Side Mount Opening Unthreaded | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 3.96 mm | 0.156 " | Solder | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | Solder | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 3.96 mm | 0.156 " | Solder | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 3.25 mm | 0.128 " | Solder Wire Wrap | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.25 Ám | 10 Áin | Dual | 37 | Female | 3.18 mm | 0.125 in | 74 | 3.25 mm | 0.128 " | Solder | Gold | 2 | Cantilever | Copper Alloy | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Flush Mount Side Opening Unthreaded |
