OSTOQ24 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

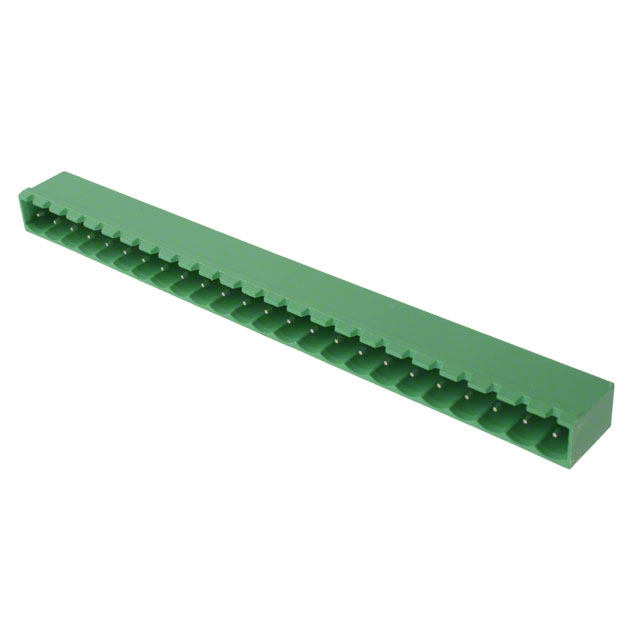

TERM BLOCK HDR 24POS VERT 5.08MM
| Part | Contact Tail Length | Contact Tail Length | Contact Material | Housing Material | Insulation Height [z] | Insulation Height [z] | Mounting Type | Material Flammability Rating | Contact Mating Finish | Number of Levels | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - UL | Type | Features | Termination Style | Number of Positions | Pitch | Pitch | Positions Per Level [custom] | Header Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 0.157 in | 4 mm | Brass | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | UL94 V-0 | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (4 Side) | Mating Flange | Solder | 24 | 5.08 mm | 0.2 in | 24 | Vertical |
On Shore Technology Inc. | 0.138 in | 3.5 mm | Brass | Thermoplastic | 3.5 mm | 0.138 " | Solder Through Hole | UL94 V-0 | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (4 Side) | Mating Flange | Solder | 24 | 3.81 mm | 0.15 in | 24 | 90° Right Angle |
 On Shore Technology Inc. | 0.157 in | 4 mm | Brass | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | Tin | 1 | -40 C | 115 °C | 300 V | Header Male Pins Shrouded (4 Side) | Solder | 24 | 5 mm | 0.197 in | 24 | 90° Right Angle | ||
On Shore Technology Inc. | 0.157 in | 4 mm | Brass | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (4 Side) | Solder | 24 | 5 mm | 0.197 in | 24 | Vertical | ||
On Shore Technology Inc. | 0.157 in | 4 mm | Brass | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (2 Side) | Solder | 24 | 7.62 mm | 0.3 in | 24 | Vertical | ||
On Shore Technology Inc. | 0.138 in | 3.5 mm | Brass | Thermoplastic | 3.5 mm | 0.138 " | Solder Through Hole | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (4 Side) | Solder | 24 | 3.81 mm | 0.15 in | 24 | 90° Right Angle | ||
 On Shore Technology Inc. | 0.138 in | 3.5 mm | Brass | Thermoplastic | 3.5 mm | 0.138 " | Solder Through Hole | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (4 Side) | Solder | 24 | 3.5 mm | 0.138 " | 24 | 90° Right Angle | ||
On Shore Technology Inc. | 0.138 in | 3.5 mm | Brass | Thermoplastic | 3.5 mm | 0.138 " | Solder Through Hole | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (4 Side) | Solder | 24 | 3.5 mm | 0.138 " | 24 | Vertical | ||
 On Shore Technology Inc. | 0.157 in | 4 mm | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | Tin | 1 | -40 C | 115 °C | 300 V | Header Male Pins Shrouded (4 Side) | Solder | 24 | 5.08 mm | 0.2 in | 24 | 90° Right Angle | |||
On Shore Technology Inc. | 0.157 in | 4 mm | Brass | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | Tin | 1 | -30 ░C | 105 ░C | 300 V | Header Male Pins Shrouded (2 Side) | Solder | 24 | 7.62 mm | 0.3 in | 24 | 90° Right Angle |
