ASB0405 Series

Catalog

FAN AXIAL 40X10MM 5VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Material - Blade	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Termination	Weight	Weight	Bearing Type	Static Pressure	Static Pressure	Air Flow	Air Flow	Width [y]	RPM	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Fan Type	Noise	Features	Operating Temperature [Max]	Operating Temperature [Min]

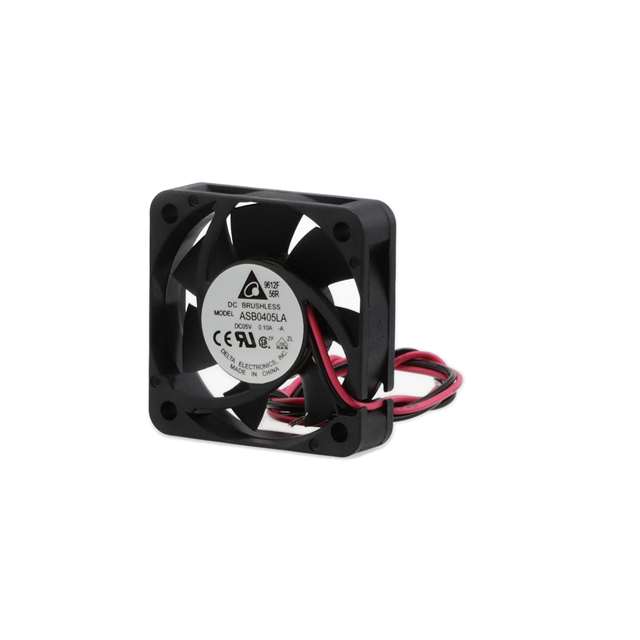

Delta Electronics ASB0405LA-A	30000 Hrs	5.5 V	4 VDC	50 mA	Plastic	Plastic	70 °C	-10 °C	5 V	2 Wire Leads	13.61 g	0.03 lb	Sleeve	0.068 in H2O	17 Pa	0.123 m³/min	4.4 CFM	10 mm	4000 RPM	CE CSA UL VDE	40 mm	40 mm	0.25 W	Tubeaxial
Delta Electronics ASB0405HHA-AF00	30000 Hrs	5.5 V	4.5 V		Plastic	Plastic	70 °C	-10 °C	5 V	3 Wire Leads	13.61 g	0.03 lb	Sleeve	0.19 in H2O	47.3 Pa	0.23 mł/min	8.2 CFM	10 mm	7000 RPM	CE CSA UL VDE	40 mm	40 mm	0.65 W	Tubeaxial	29.5 dB(A)	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics ASB0405SA-00	80000 Hrs	5.5 V	4.5 V	0.18 A	Plastic	Plastic	90 °C	-20 ░C	5 V	3 Wire Leads	13.61 g	0.03 lb	Sleeve	0.233 in H2O	58 Pa	0.249 mł/min	8.9 CFM	10.4 mm	8000 RPM		40 mm	40 mm	0.9 W	Tubeaxial	33.5 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	90 °C	-4 °F
