ABJ161 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Switch Function	Operating Position	Operating Position	Differential Travel	Differential Travel	Current Rating (Amps)	Circuit	Mounting Type	Release Force	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - AC	Overtravel [custom]	Overtravel [custom]	Termination Style	Actuator Type	Ingress Protection	Voltage Rating - DC	Operating Force	Electrical Life	Differential Travel
Panasonic Electronic Components ABJ1610619	On-Mom	0.217 in	5.5 mm	0.005 in	0.13 mm	100 mA	SPDT	Chassis Mount	25 gf	0.6 mm	0.024 in	85 °C	-40 C	1000000 Cycles	125 V	0.01 "	0.25 mm	Wire Leads	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	30 V	0.2 kgf	6000 Cycles
Panasonic Electronic Components ABJ1612409	On-Mom	0.268 in	6.8 mm	0.5 mm		1 A	SPDT	Chassis Mount	3.059 gf	3 mm	0.12 in	85 °C	-40 C	1000000 Cycles	125 V	0.02 "	0.5 mm	Wire Leads	Lever Straight	IP67 - Dust Tight Waterproof	30 V	40 gf	6000 Cycles	0.02 in
Panasonic Electronic Components ABJ1610609	On-Mom	0.217 in	5.5 mm	0.005 in	0.13 mm	2 A	SPDT	Chassis Mount	25 gf	0.6 mm	0.024 in	85 °C	-40 C	1000000 Cycles	125 V	0.01 "	0.25 mm	Wire Leads	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	30 V	0.2 kgf	6000 Cycles
Panasonic Electronic Components ABJ161241	On-Mom	0.268 in	6.8 mm	0.5 mm		100 mA	SPDT	Chassis Mount	3.059 gf	3 mm	0.12 in	85 °C	-40 C	1000000 Cycles	125 V	0.02 "	0.5 mm	Wire Leads	Lever Straight	IP67 - Dust Tight Waterproof	30 V	40 gf	6000 Cycles	0.02 in
Panasonic Electronic Components ABJ1610409	On-Mom	0.217 in	5.5 mm	0.005 in	0.13 mm	1 A	SPDT	Chassis Mount	15 gf	0.6 mm	0.024 in	85 °C	-40 C	1000000 Cycles	125 V	0.01 "	0.25 mm	Wire Leads	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	30 V	125 gf	6000 Cycles

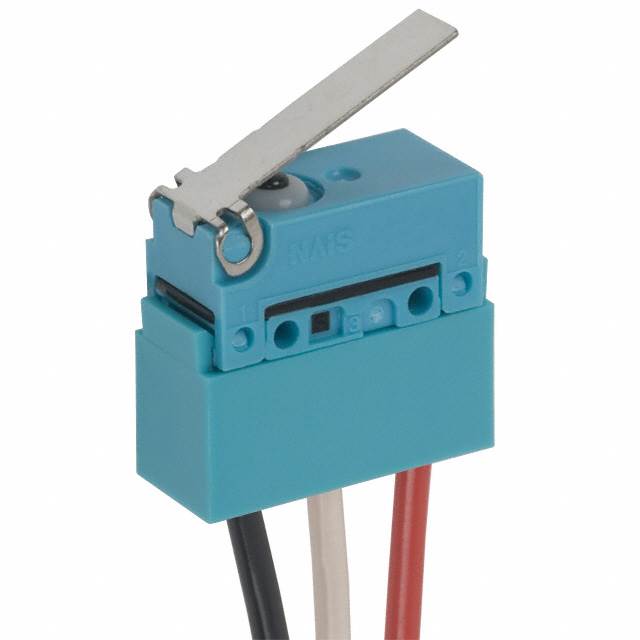

Panasonic Electronic Components ABJ1612609	On-Mom	0.268 in	6.8 mm	0.5 mm		2 A	SPDT	Chassis Mount	5.099 gf	3 mm	0.12 in	85 °C	-40 C	1000000 Cycles	125 V	0.02 "	0.5 mm	Wire Leads	Lever Straight	IP67 - Dust Tight Waterproof	30 V	65 gf	6000 Cycles	0.02 in

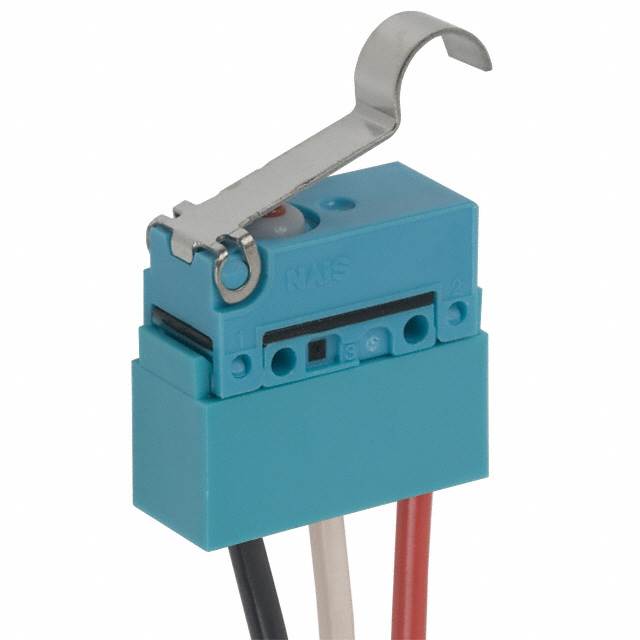

Panasonic Electronic Components ABJ1614409	On-Mom	0.386 in	9.8 mm	0.5 mm		1 A	SPDT	Chassis Mount	3.059 gf	3 mm	0.12 in	85 °C	-40 C	1000000 Cycles	125 V	0.02 "	0.5 mm	Wire Leads	Lever Simulated Roller	IP67 - Dust Tight Waterproof	30 V	40 gf	6000 Cycles	0.02 in
Panasonic Electronic Components ABJ161040	On-Mom	0.217 in	5.5 mm	0.005 in	0.13 mm	1 A	SPDT	Chassis Mount	15 gf	0.6 mm	0.024 in	85 °C	-40 C	1000000 Cycles	125 V	0.01 "	0.25 mm	Wire Leads	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	30 V	125 gf	30000 Cycles
Panasonic Electronic Components ABJ1614419	On-Mom	0.386 in	9.8 mm	0.5 mm		100 mA	SPDT	Chassis Mount	3.059 gf	3 mm	0.12 in	85 °C	-40 C	1000000 Cycles	125 V	0.02 "	0.5 mm	Wire Leads	Lever Simulated Roller	IP67 - Dust Tight Waterproof	30 V	40 gf	6000 Cycles	0.02 in
