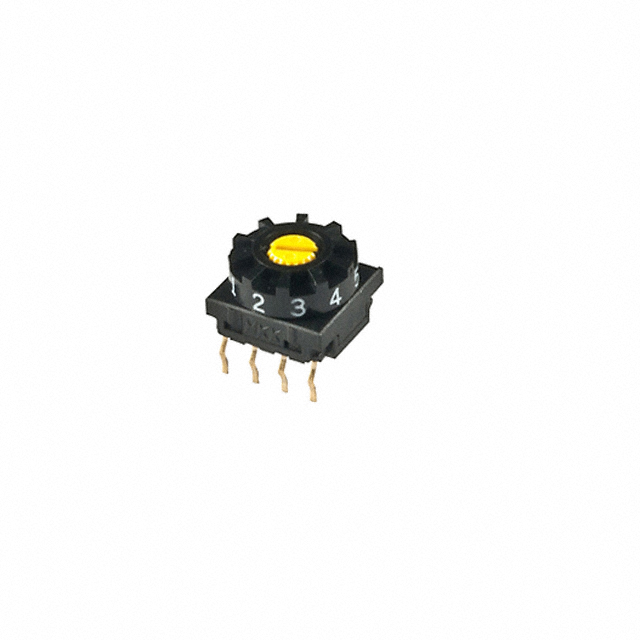

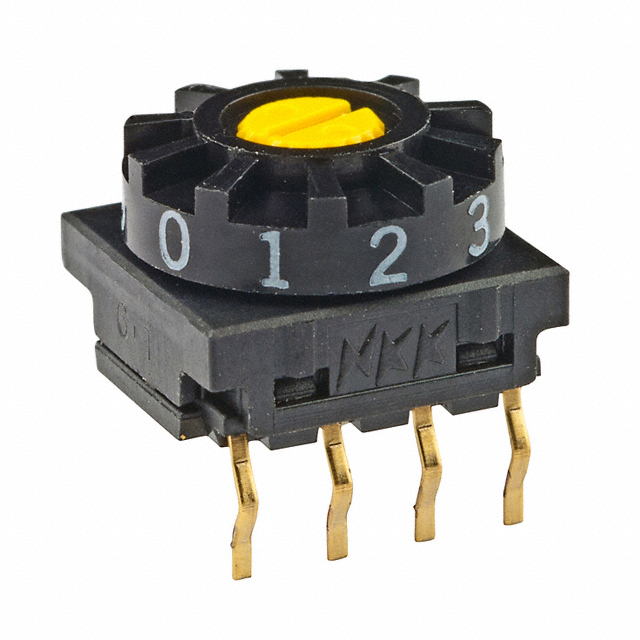

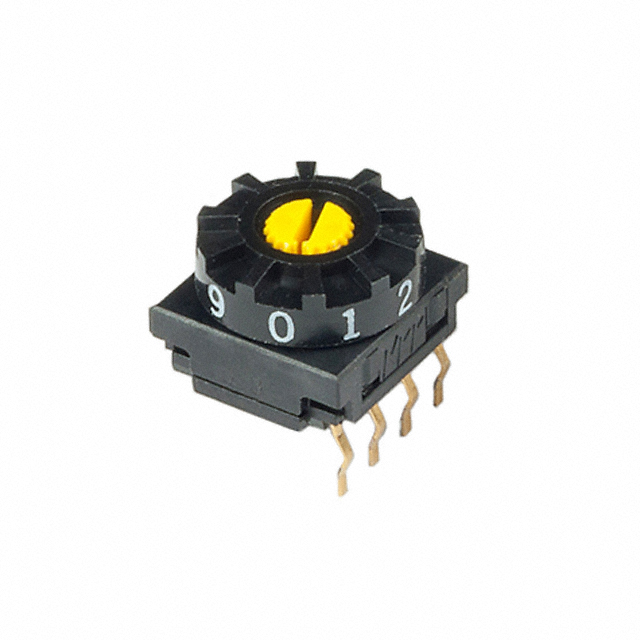

FR01SC10 Series
Manufacturer: NKK Switches
Beta
⌘K
SW ROTARY DIP BCD COMP 0.1A 5V
| Part | Mechanical Life | Electrical Life | Length [x] | Length [x] | Body Material | Current Rating (Amps) | Contact Material | Mounting Type | Number of Positions | Actuator Level | Termination Style | Circuit | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Voltage Rating | Washable | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Steps | 10000 Cycles | 0.394 in | 10 mm | Polyamide (PA) Nylon Glass Filled | 100 mA | Copper Alloy | Through Hole | 10 | Raised | PC Pin | BCD Complement | 2.54 mm | 0.1 " | 0.284 in | 7.21 mm | 85 °C | -25 °C | Gold | 5 V | Rotary with Knob | |
 NKK Switches | 10000 Steps | 10000 Cycles | 0.394 in | 10 mm | Polyamide (PA) Nylon Glass Filled | 100 mA | Copper Alloy | Through Hole | 10 | Raised | PC Pin | BCD Complement | 2.54 mm | 0.1 " | 0.284 in | 7.21 mm | 85 °C | -25 °C | Gold | 5 V | Rotary with Knob | |
 NKK Switches | 10000 Steps | 10000 Cycles | 0.394 in | 10 mm | Polyamide (PA) Nylon Glass Filled | 100 mA | Copper Alloy | Through Hole | 10 | Raised | PC Pin | BCD Complement | 2.54 mm | 0.1 " | 0.284 in | 7.21 mm | 85 °C | -25 °C | Gold | 5 V | Rotary with Knob |
