LMR36006-Q1 Series

4.2-V to 60-V, 0.6-A ultra-small synchronous step-down converter

Catalog

4.2-V to 60-V, 0.6-A ultra-small synchronous step-down converter

Part	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Output Type	Number of Outputs	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Output Configuration	Current - Output	Voltage - Input (Min) [Min]	Frequency - Switching	Qualification	Grade	Supplier Device Package	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Function	Voltage - Output (Max)	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Board Type	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output	Supplied Contents	Output Type
Texas Instruments LMR36006FSCQRNXTQ1	60 V	1 V	Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	2.1 MHz	AEC-Q100	Automotive	12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down
Texas Instruments LMR36006BRNXR	60 V	1 V	Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	1 MHz			12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down
Texas Instruments LMR36006CRNXR	60 V	1 V	Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	2.1 MHz			12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down
Texas Instruments LMR36006AQRNXTQ1	60 V	1 V	Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	400 kHz	AEC-Q100	Automotive	12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down
Texas Instruments LMR36006BRNXT			Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	1 MHz			12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down
Texas Instruments LMR36006BQRNXRQ1		1 V	Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	1 MHz	AEC-Q100	Automotive	12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down	57 V
Texas Instruments LMR36006FSCQRNXRQ1	60 V	1 V	Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	2.1 MHz	AEC-Q100	Automotive	12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down

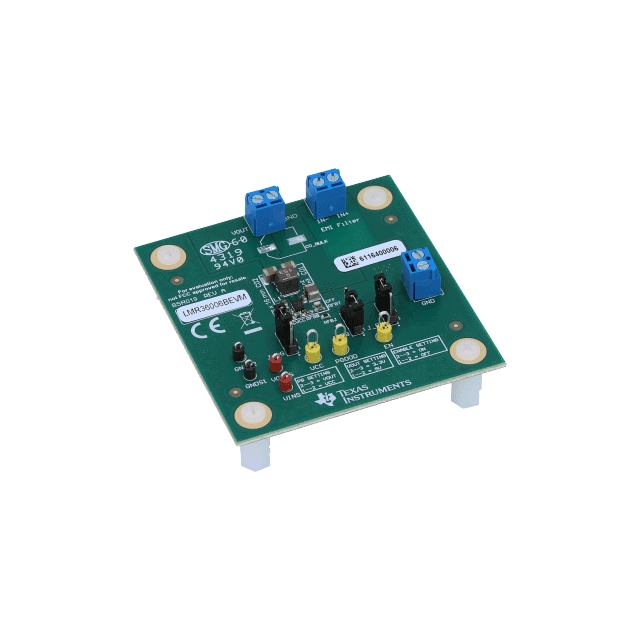

Texas Instruments LMR36006BEVM									600 mA		1 MHz									Buck	60 V	4.2 V	LMR36006B	Fully Populated	DC/DC Step Down	Non-Isolated	1	3.3 V 5 V	Board(s)
Texas Instruments LMR36006FSC3RNXRQ1		3.3 V		1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	2.1 MHz	AEC-Q100	Automotive	12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down												1.81 mOhm
Texas Instruments LMR36006AQRNXRQ1	60 V	1 V	Adjustable	1	12-PowerVFQFN	Surface Mount Wettable Flank	60 V	Positive	600 mA	4.2 V	400 kHz	AEC-Q100	Automotive	12-VQFN-HR (3x2)	Buck	150 °C	-40 °C	Step-Down

Catalog

4.2-V to 60-V, 0.6-A ultra-small synchronous step-down converter

Key Features

• AEC-Q100-qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designDesigned for automotive applicationsJunction temperature range –40°C to +150°CProtection features: thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, hiccup short-circuit protection0.2-V dropout with 0.6-A load (typical)±1.5% reference voltage tolerance3.3-V fixed-output voltage option availableSuited for scalable power suppliesPin compatible with:LMR36015-Q1(60 V, 1.5 A)LMR33620/30-Q1(36 V, 2 A, or 3 A)400-kHz, 2.1-MHz frequency option sIntegration reduces solution size and costSmall, 2-mm × 3-mm VQFN package with wettable flanksFew external componentsLow power dissipation across load spectrum94% efficiency at 400 kHz (12 VIN, 5 VOUT, 0.6 A)Increased light load efficiency in PFMLow operating quiescent current of 2 6 µAOptimized for ultra low EMI requirementsMeets CISPR25 class 5 standardHotRod™ package minimizes switch node ringingParallel input path minimizes parasitic inductanceSpread spectrum reduces peak emissionsCreate a custom design using the LMR36006-Q1 with theWEBENCH Power DesignerAEC-Q100-qualified for automotive applications:Temperature grade 1: –40°C to +125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designDesigned for automotive applicationsJunction temperature range –40°C to +150°CProtection features: thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, hiccup short-circuit protection0.2-V dropout with 0.6-A load (typical)±1.5% reference voltage tolerance3.3-V fixed-output voltage option availableSuited for scalable power suppliesPin compatible with:LMR36015-Q1(60 V, 1.5 A)LMR33620/30-Q1(36 V, 2 A, or 3 A)400-kHz, 2.1-MHz frequency option sIntegration reduces solution size and costSmall, 2-mm × 3-mm VQFN package with wettable flanksFew external componentsLow power dissipation across load spectrum94% efficiency at 400 kHz (12 VIN, 5 VOUT, 0.6 A)Increased light load efficiency in PFMLow operating quiescent current of 2 6 µAOptimized for ultra low EMI requirementsMeets CISPR25 class 5 standardHotRod™ package minimizes switch node ringingParallel input path minimizes parasitic inductanceSpread spectrum reduces peak emissionsCreate a custom design using the LMR36006-Q1 with theWEBENCH Power Designer

Description

The LMR36006-Q1 regulator is an easy-to-use, synchronous, step-down DC/DC converter. With integrated high-side and low-side power MOSFETs, up to 0.6 A of output current is delivered over a wide input voltage range of 4.2 V to 60 V. Tolerance goes up to 66 V. The LMR36006-Q1 uses peak-current-mode control to provide optimal efficiency and output voltage accuracy. Advanced high speed circuitry allows the LMR36006-Q1 to regulate from an input of 20 V to an output of 5 V at a fixed frequency of 2.1 MHz. Precision enable gives flexibility by enabling a direct connection to the wide input voltage or precise control over device start-up and shutdown. The power-good flag, with built-in filtering and delay, offers a true indication of system status eliminating the requirement for an external supervisor. The LMR36006-Q1 is in a HotRod™ package which enables low EMI, higher efficiency, and the smallest package to die ratio. The device requires few external components and has a pinout designed for simple PCB layout. The small solution size and feature set of the LMR36006-Q1 are designed to simplify implementation for a wide range of end equipment. The LMR36006-Q1 regulator is an easy-to-use, synchronous, step-down DC/DC converter. With integrated high-side and low-side power MOSFETs, up to 0.6 A of output current is delivered over a wide input voltage range of 4.2 V to 60 V. Tolerance goes up to 66 V. The LMR36006-Q1 uses peak-current-mode control to provide optimal efficiency and output voltage accuracy. Advanced high speed circuitry allows the LMR36006-Q1 to regulate from an input of 20 V to an output of 5 V at a fixed frequency of 2.1 MHz. Precision enable gives flexibility by enabling a direct connection to the wide input voltage or precise control over device start-up and shutdown. The power-good flag, with built-in filtering and delay, offers a true indication of system status eliminating the requirement for an external supervisor. The LMR36006-Q1 is in a HotRod™ package which enables low EMI, higher efficiency, and the smallest package to die ratio. The device requires few external components and has a pinout designed for simple PCB layout. The small solution size and feature set of the LMR36006-Q1 are designed to simplify implementation for a wide range of end equipment.
