NCSW Series

Catalog

LF SOLDER WIRE 96.5/3/0.5 TIN/SI

Part	Composition	Melting Point [Max]	Melting Point [Max]	Melting Point [Min]	Melting Point [Min]	Flux Type	Type	Diameter [diameter]	Diameter [diameter]	Form	Form	Form	Form

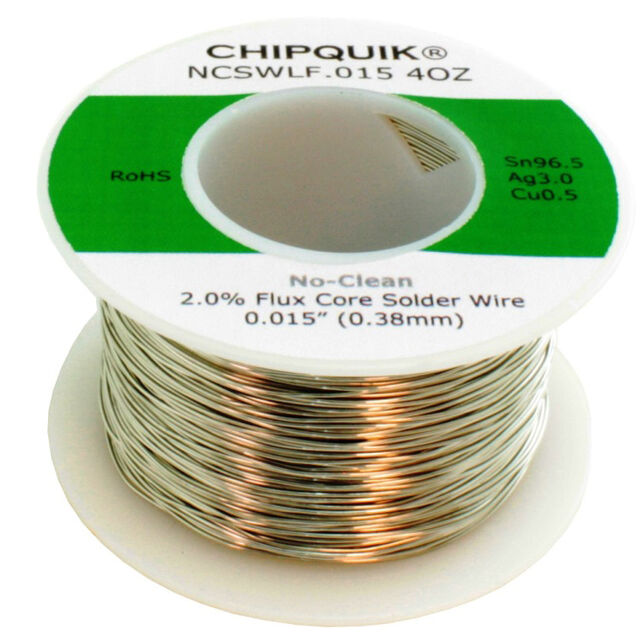

Chip Quik Inc. NCSWLF.015 4OZ	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	428 °F	220 °C	423 °F	217 °C	No-Clean	Wire Solder	0.38 mm	0.015 in	113.4 g	4 oz	Spool

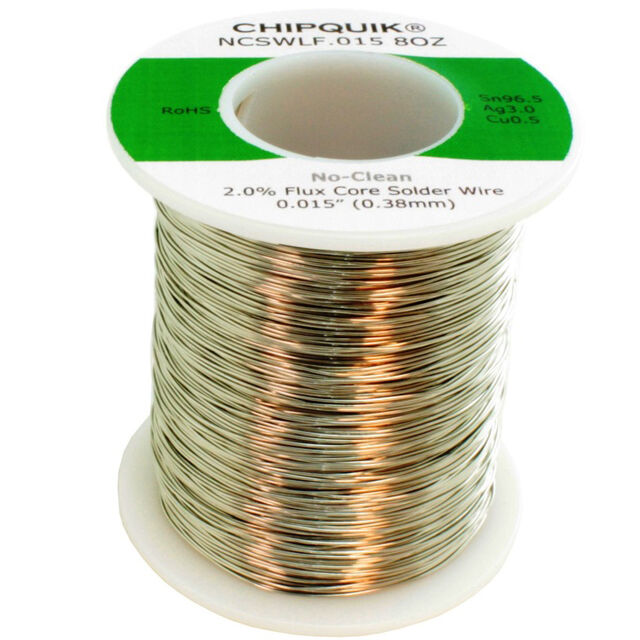

Chip Quik Inc. NCSWLF.015 8OZ	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	428 °F	220 °C	423 °F	217 °C	No-Clean	Wire Solder	0.38 mm	0.015 in	226.8 g	8 oz	Spool

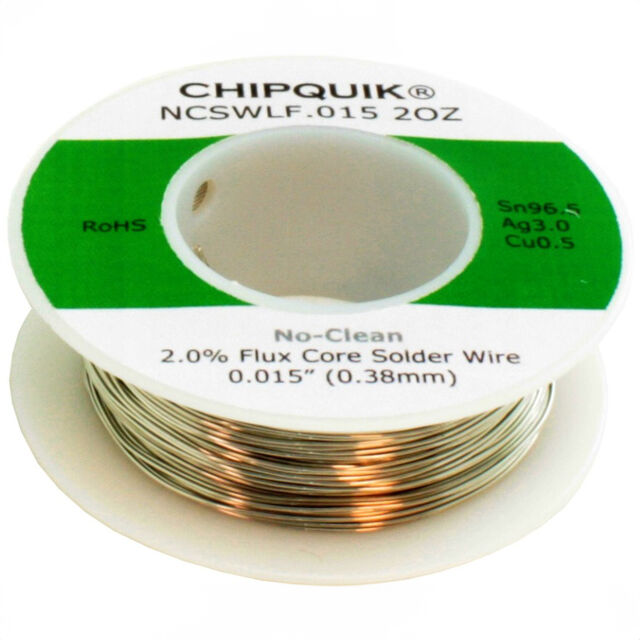

Chip Quik Inc. NCSWLF.015 2OZ	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	428 °F	220 °C	423 °F	217 °C	No-Clean	Wire Solder	0.38 mm	0.015 in	56.7 g	2 oz	Spool

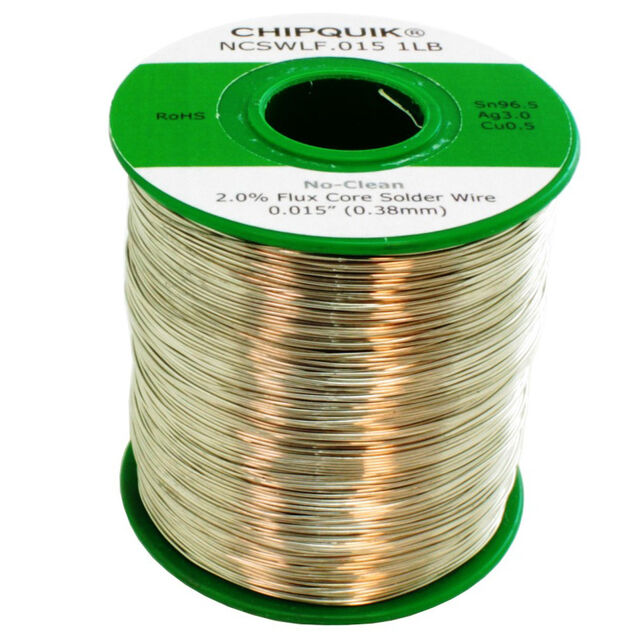

Chip Quik Inc. NCSWLF.015 1LB	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	428 °F	220 °C	423 °F	217 °C	No-Clean	Wire Solder	0.38 mm	0.015 in	16 oz	1 lb	Spool

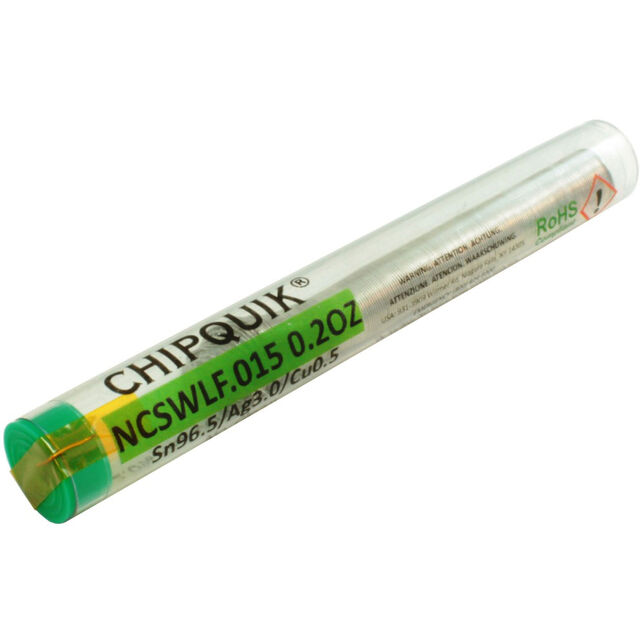

Chip Quik Inc. NCSWLF.015 0.2OZ	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	428 °F	220 °C	423 °F	217 °C	No-Clean	Wire Solder	0.38 mm	0.015 in	5.66 g	0.2 oz	Tube

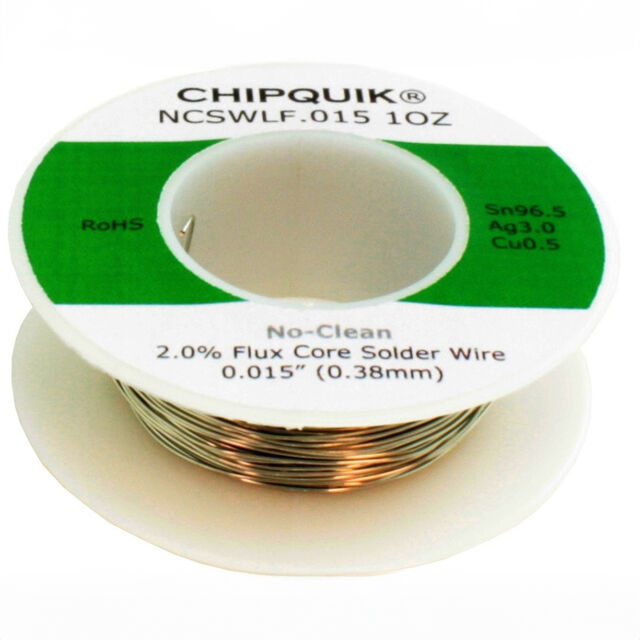

Chip Quik Inc. NCSWLF.015 1OZ	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	428 °F	220 °C	423 °F	217 °C	No-Clean	Wire Solder	0.38 mm	0.015 in	1 oz		Spool	28.35 g
