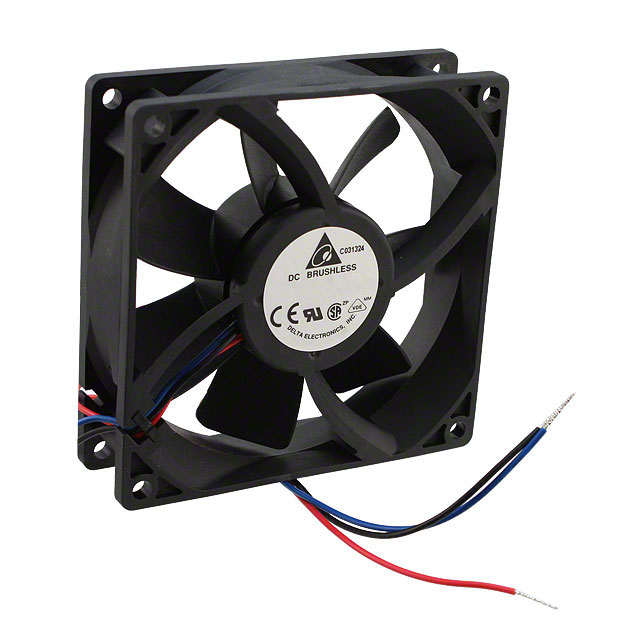

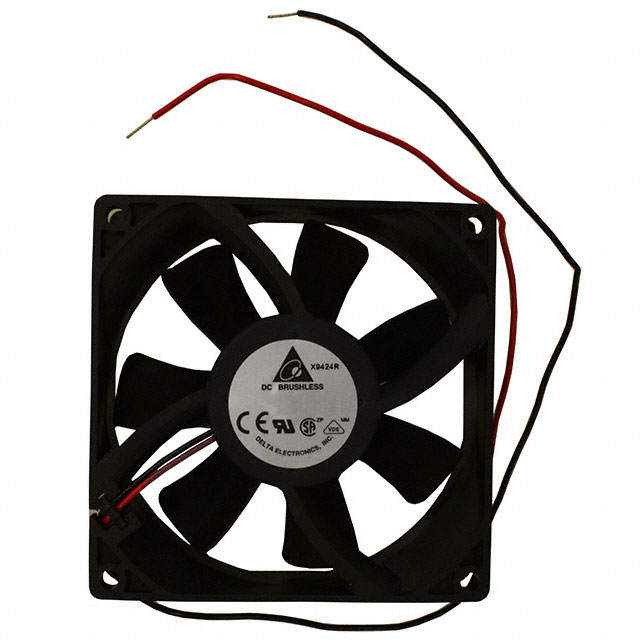

AFB0924 Series

Catalog

FAN AXIAL 92X25.4MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Power (Watts)	Fan Type	RPM	Noise	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Approval Agency	Features	Voltage - Rated	Termination	Weight	Weight	Air Flow	Air Flow	Bearing Type	Weight [custom]	Weight [custom]
Delta Electronics AFB0924VH-F00	0.22 A	Plastic	70000 Hrs	Plastic	27.6 VDC	14	75.2 Pa	0.302 in H2O	5.28 W	Tubeaxial	3800 RPM	45 dB(A)	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	24 VDC	3 Wire Leads	98.88 g	0.218 lb	67.8 CFM	1.9 m³/min	Ball
Delta Electronics AFB0924VH	0.22 A	Plastic	70000 Hrs	Plastic	27.6 VDC	14	75.2 Pa	0.302 in H2O	5.28 W	Tubeaxial	3800 RPM	45 dB(A)	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE		24 VDC	2 Wire Leads	98.88 g	0.218 lb	67.8 CFM	1.9 m³/min	Ball

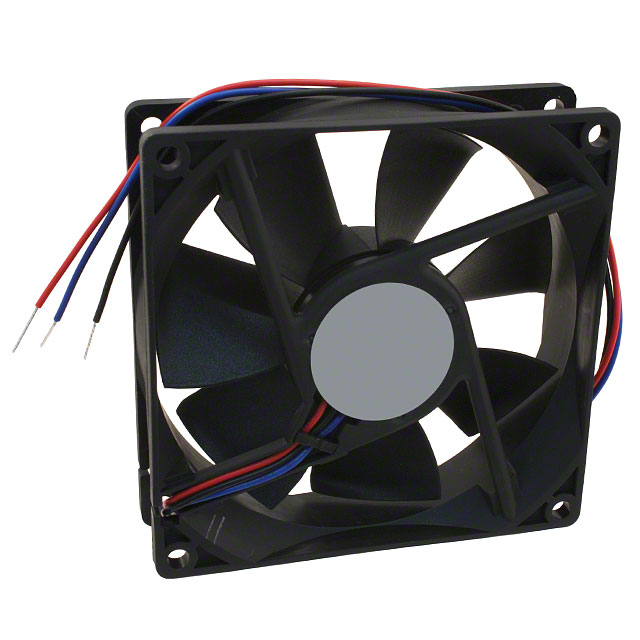

Delta Electronics AFB0924H-R00	100 mA	Plastic	70000 Hrs	Plastic	27.6 VDC	14	44.1 Pa	0.177 in H2O	2.4 W	Tubeaxial	2850 RPM	34 dB(A)	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE	Locked Rotor Sensor	24 VDC	3 Wire Leads	99.34 g	0.219 lb	51.2 CFM	1.43 mł/min	Ball

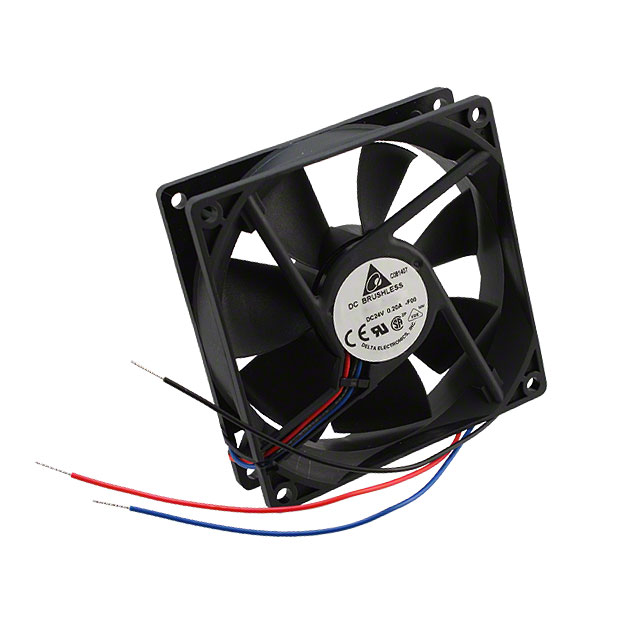

Delta Electronics AFB0924H-F00	100 mA	Plastic	70000 Hrs	Plastic	27.6 VDC	14	44.1 Pa	0.177 in H2O	2.4 W	Tubeaxial	2850 RPM	34 dB(A)	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	24 VDC	3 Wire Leads	99.34 g	0.219 lb	51.2 CFM	1.43 mł/min	Ball
Delta Electronics AFB0924M		Plastic	70000 Hrs	Plastic	27.6 VDC	14	32.4 Pa	0.13 in H2O	1.92 W	Tubeaxial	2450 RPM	30 dB	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE		24 VDC	2 Wire Leads	99.34 g	0.219 lb	43.8 CFM	1.23 m³/min	Ball
Delta Electronics AFB0924HH		Plastic	70000 Hrs	Plastic	27.6 VDC	14	55 Pa	0.221 in H2O	3.12 W	Tubeaxial	3200 RPM	38 dB(A)	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE		24 VDC	2 Wire Leads	98.88 g	0.218 lb	57.9 CFM	1.62 mł/min	Ball

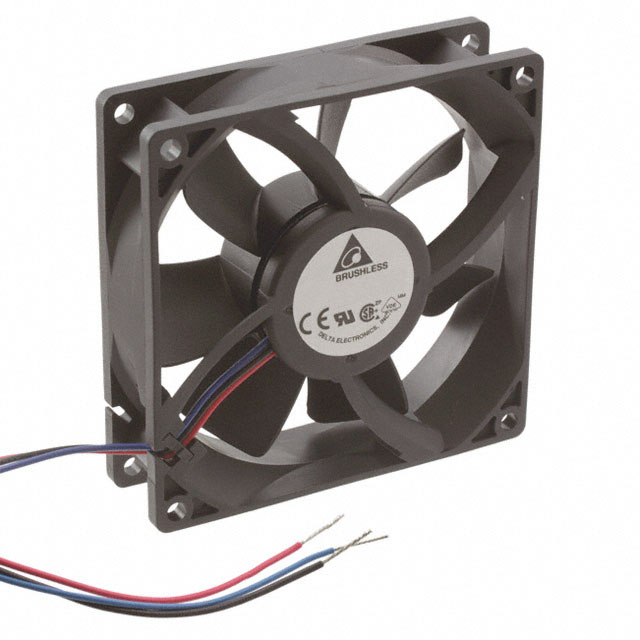

Delta Electronics AFB0924SH-AF00	400 mA	Plastic	70000 Hrs	Plastic	26.4 VDC	14 VDC	131 Pa	0.526 in H2O	9.6 W	Tubeaxial	4800 RPM	53 dB	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	24 VDC	3 Wire Leads	121.11 g	0.267 lb	102.6 CFM	2.87 m³/min	Ball

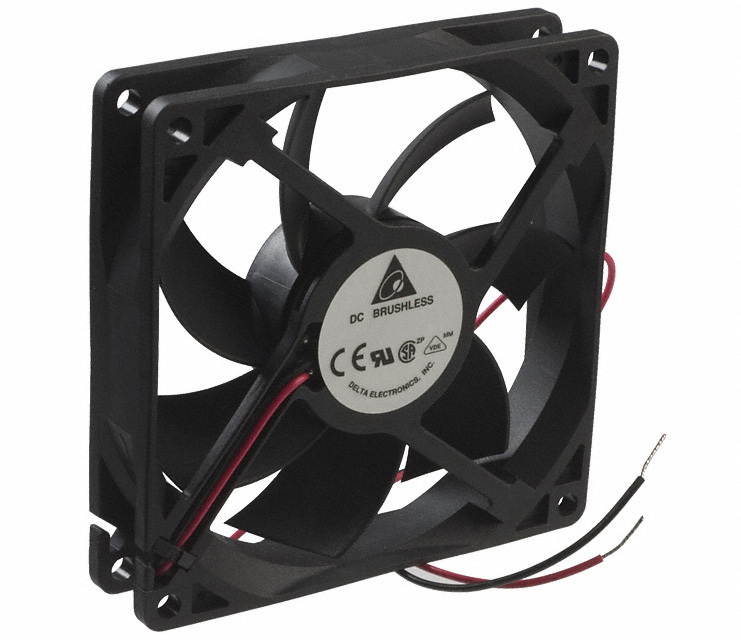

Delta Electronics AFB0924HD	100 mA	Plastic	70000 Hrs	Plastic	27.6 VDC	14	34.3 Pa	0.138 in H2O	2.4 W	Tubeaxial	2700 RPM	35 dB	92 mm	92 mm	70 °C	-10 °C	20 mm	CE CSA UL VDE		24 VDC	2 Wire Leads			54.6 CFM	1.53 mł/min	Ball	0.203 lb	92.08 g

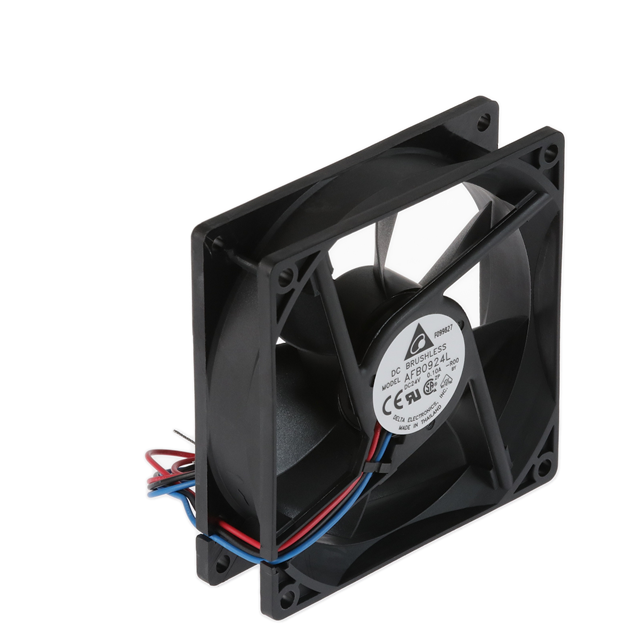

Delta Electronics AFB0924L-R00	60 mA	Plastic	70000 Hrs	Plastic	27.6 VDC	14	24.9 Pa	0.1 in H2O	1.44 W	Tubeaxial	2100 RPM	25 dB(A)	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE	Locked Rotor Sensor	24 VDC	3 Wire Leads	99.34 g	0.219 lb	37.1 CFM	1.04 mł/min	Ball
Delta Electronics AFB0924H	100 mA	Plastic	70000 Hrs	Plastic	27.6 VDC	14	44.1 Pa	0.177 in H2O	2.4 W	Tubeaxial	2850 RPM	34 dB(A)	92 mm	92 mm	70 °C	-10 °C	25.4 mm	CE CSA UL VDE		24 VDC	2 Wire Leads	99.34 g	0.219 lb	51.2 CFM	1.43 mł/min	Ball
