053748 Series

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 3.00mm Stack Height, 60 Circuits, without Vacuum Pick-up Tape

Manufacturer: Molex

Catalog

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 3.00mm Stack Height, 60 Circuits, without Vacuum Pick-up Tape

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Connector Type	Contact Finish	Mated Stacking Heights	Mounting Type
Molex 0537480604	0.094 "	2.4 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in	60	2	Outer Shroud Contacts Plug	Gold	3 mm	Surface Mount

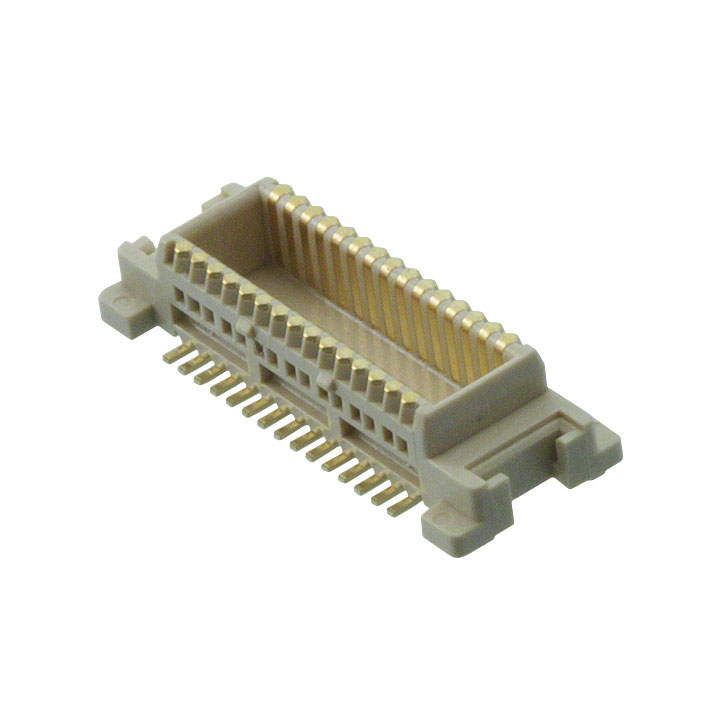

Molex 0537480304	0.094 "	2.4 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in	30	2	Outer Shroud Contacts Plug	Gold	3 mm	Surface Mount

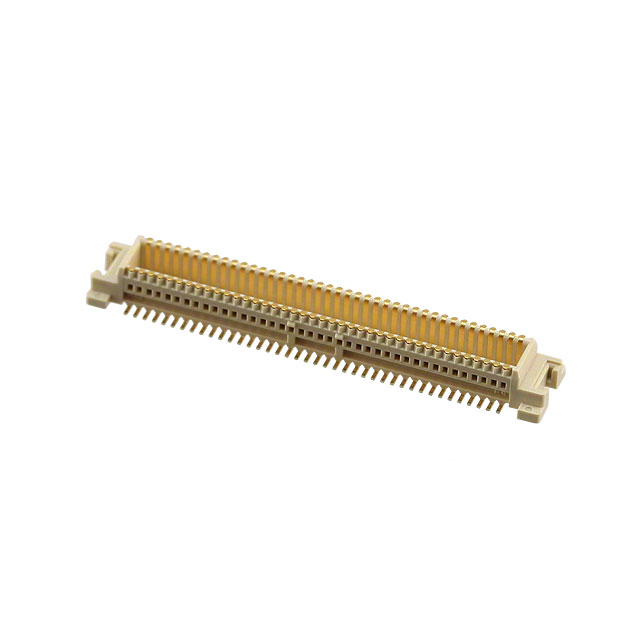

Molex 0537480808	0.094 "	2.4 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in	80	2	Outer Shroud Contacts Plug	Gold	3 mm	Surface Mount

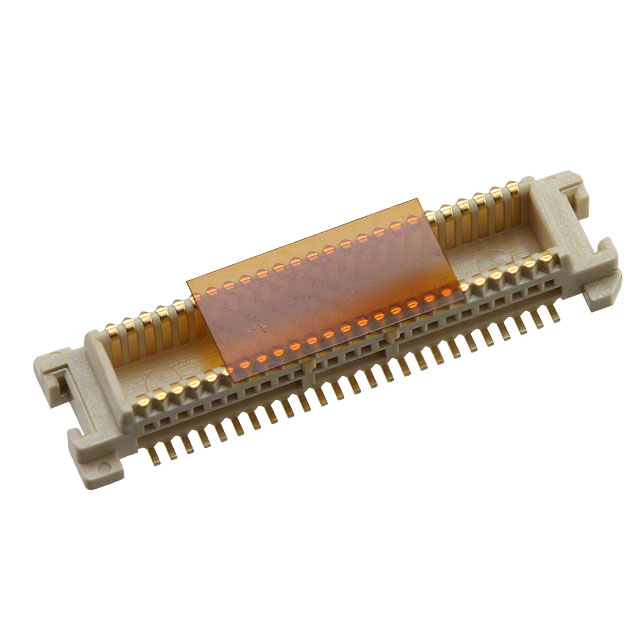

Molex 0537480504	0.094 "	2.4 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in	50	2	Outer Shroud Contacts Plug	Gold	3 mm	Surface Mount
Molex 0537480608	0.094 "	2.4 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in	60	2	Outer Shroud Contacts Plug	Gold	3 mm	Surface Mount

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 3.00mm Stack Height, 60 Circuits, without Vacuum Pick-up Tape
