Eurocard Type L Series

Catalog

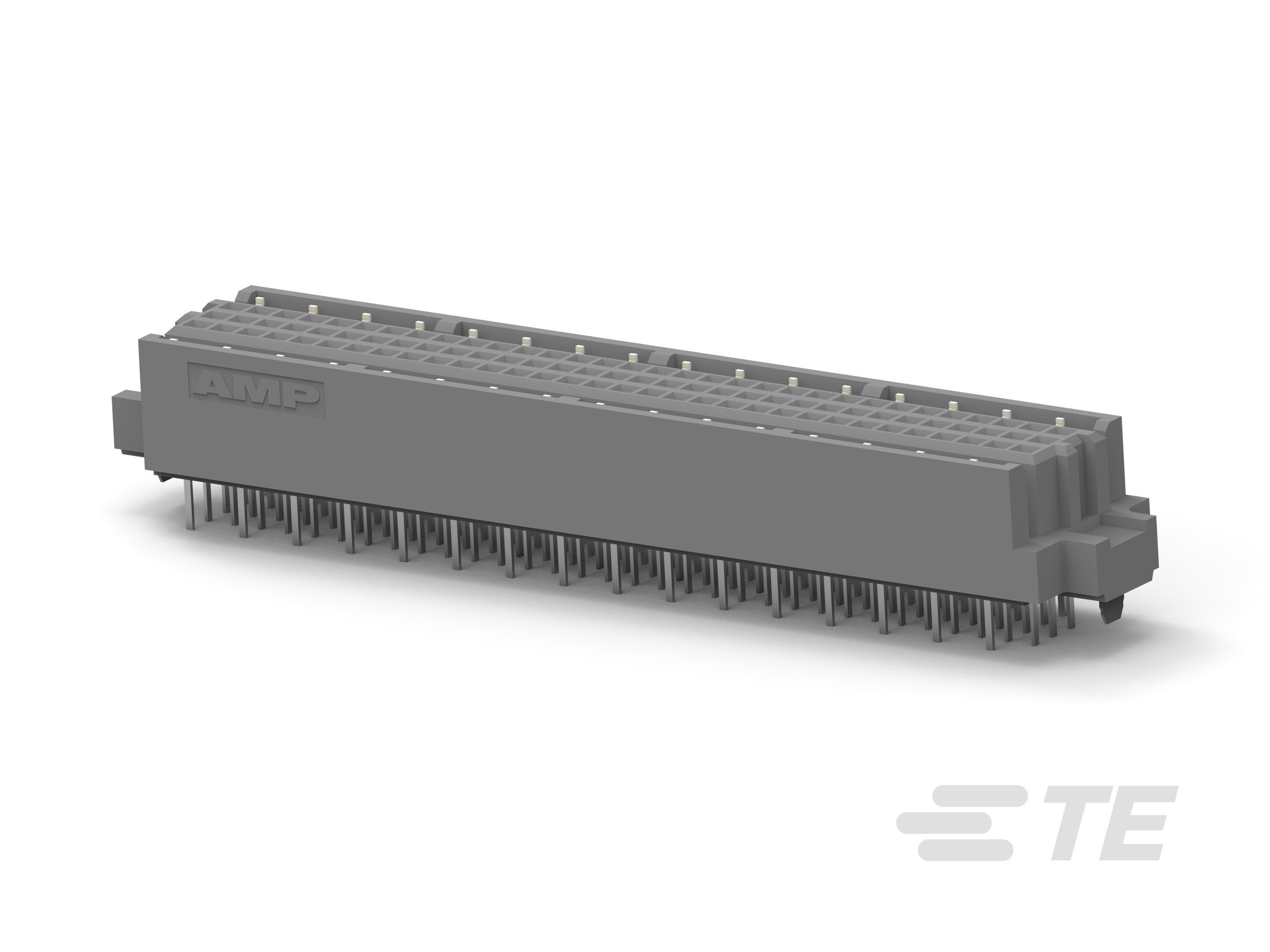

ASSY,RECPT,ENH.TYPE C,EUROCARD,L-FREE,5

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Connector Type	Termination	Pitch	Pitch	Number of Positions	Mounting Type	Contact Finish	Style	Number of Positions [custom]	Number of Positions [custom]	Features	Number of Positions [custom]	Number of Rows [custom]

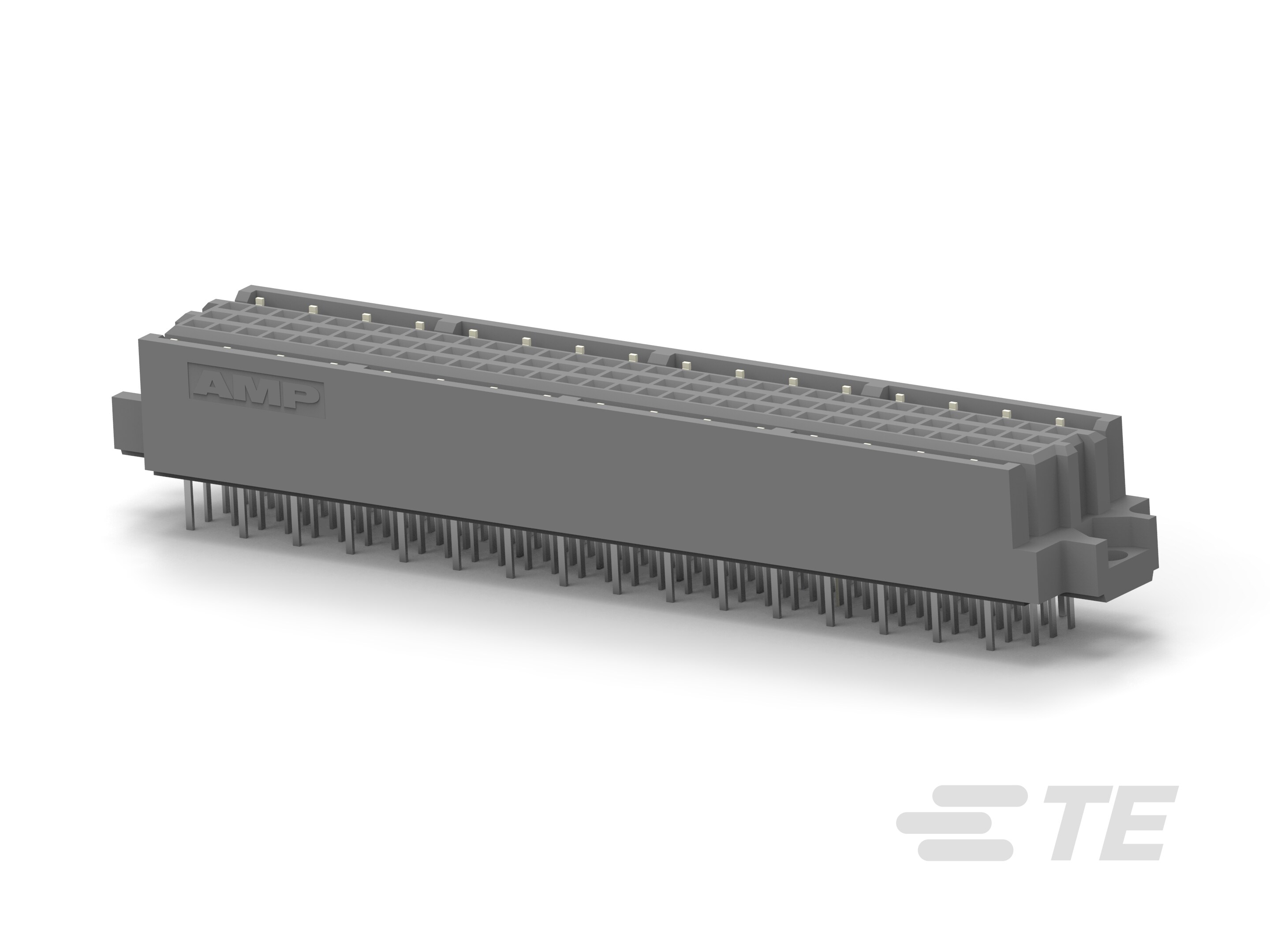

TE Connectivity AMP Connectors 5536153-5	-55 C	125 °C	Polymer Thermoplastic Glass Filled	UL94 V-0	5	All	Receptacle Female Sockets	Solder	0.1 "	2.54 mm	128	Through Hole	Gold	C
TE Connectivity AMP Connectors 5536155-5	-55 C	125 °C	Polymer Thermoplastic Glass Filled	UL94 V-0	5	All	Receptacle Female Sockets	Solder	0.1 "	2.54 mm	128	Through Hole	Gold	C	126	2	Board Lock
TE Connectivity AMP Connectors 5536154-5					5	All	Receptacle Female Sockets	Solder	0.1 "	2.54 mm		Through Hole	Gold	C		32	Board Lock	96
TE Connectivity AMP Connectors 5536149-5						All	Plug Male Pins	Solder	0.1 "	2.54 mm	96	Right Angle Through Hole	Gold	C			Board Lock Ground Plate		3
TE Connectivity AMP Connectors 5148452-5			Polymer Thermoplastic Glass Filled		5	All	Receptacle Female Sockets	Press-Fit	0.1 "	2.54 mm	160	Through Hole		C

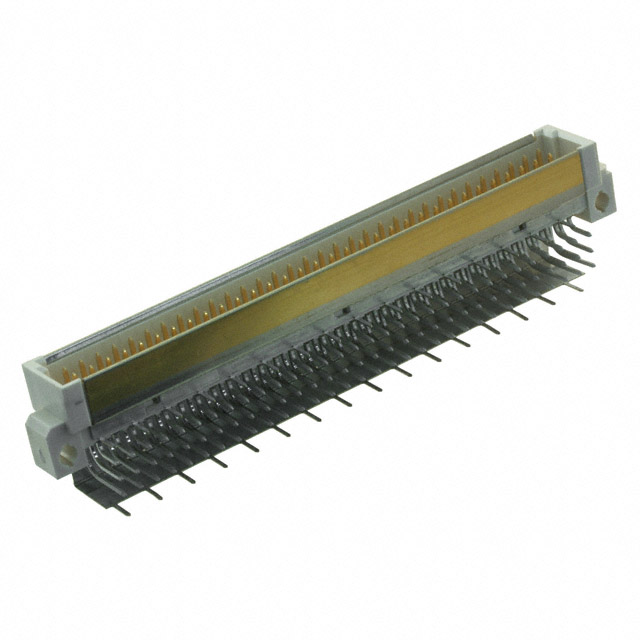

TE Connectivity AMP Connectors 5536146-5	-55 C	125 °C	Polymer Thermoplastic Glass Filled	UL94 V-0		All	Plug Male Pins	Solder	0.1 "	2.54 mm	96	Right Angle Through Hole	Gold	C			Ground Plate		3
