1747981 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

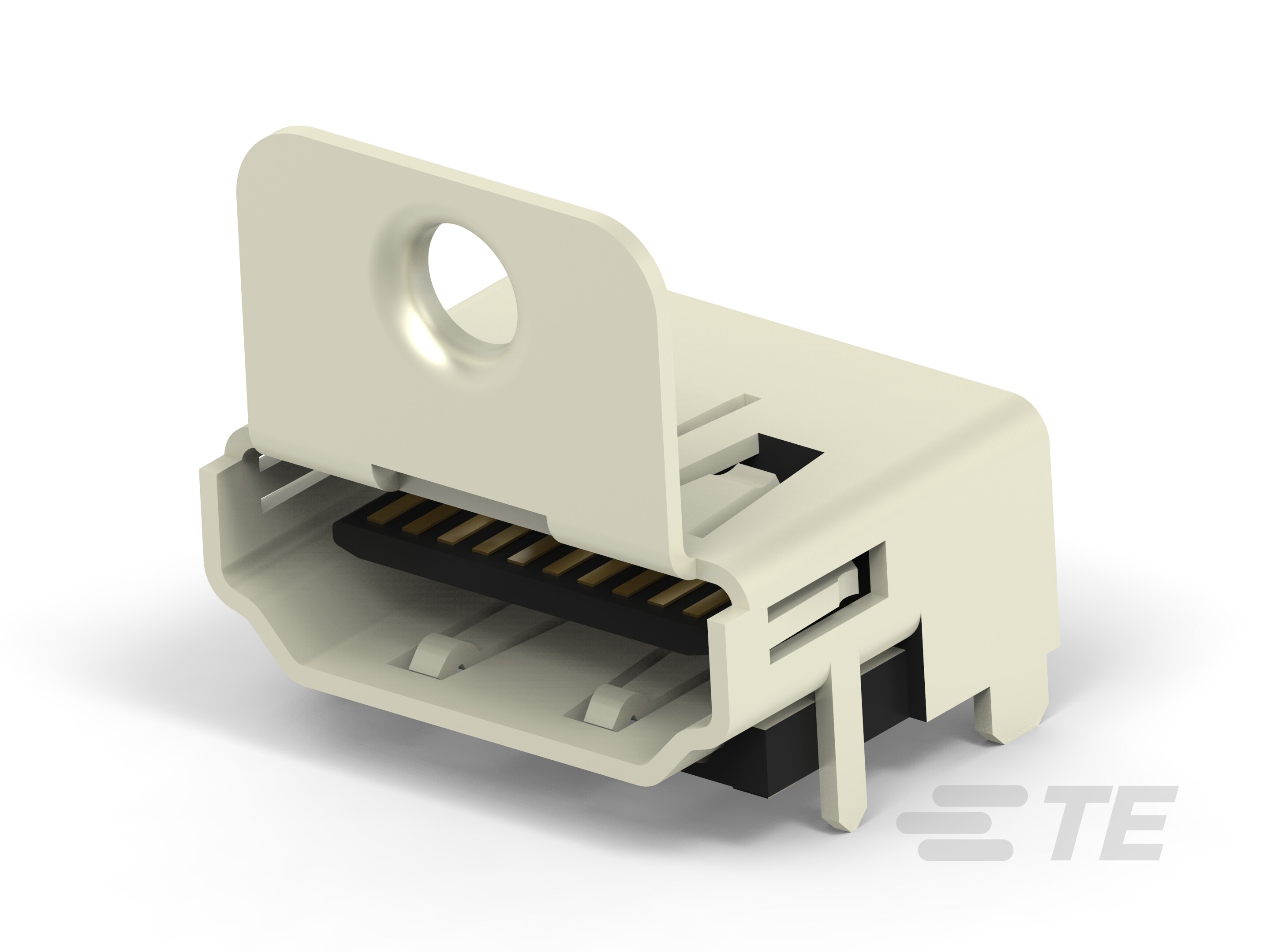

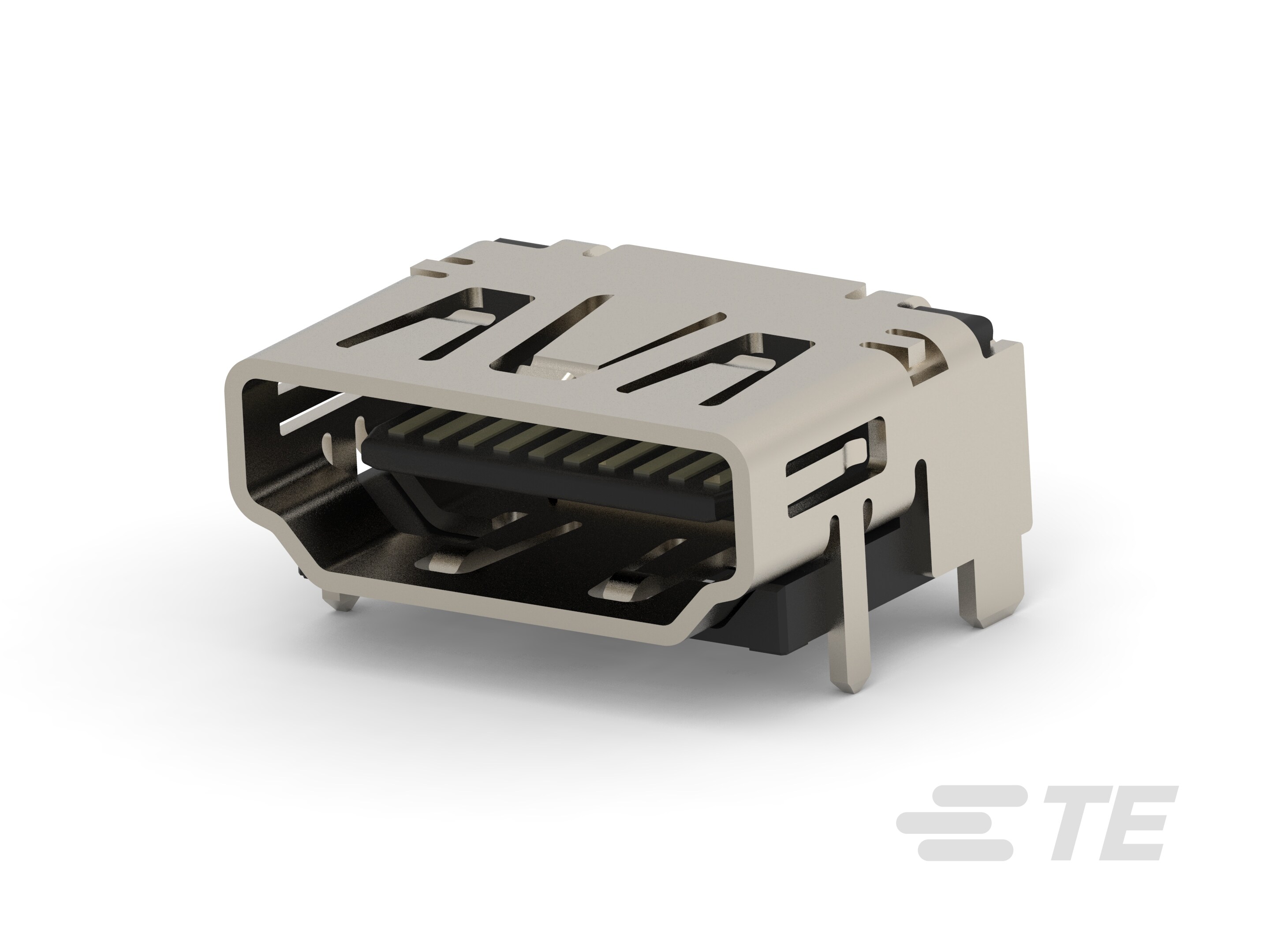

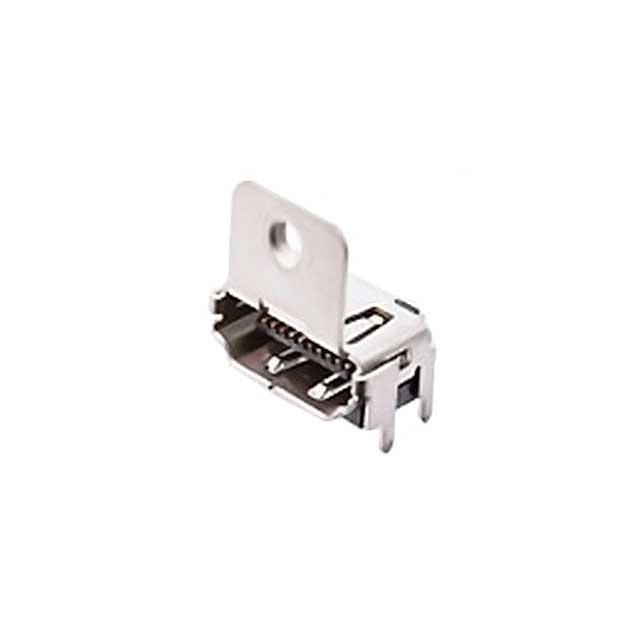

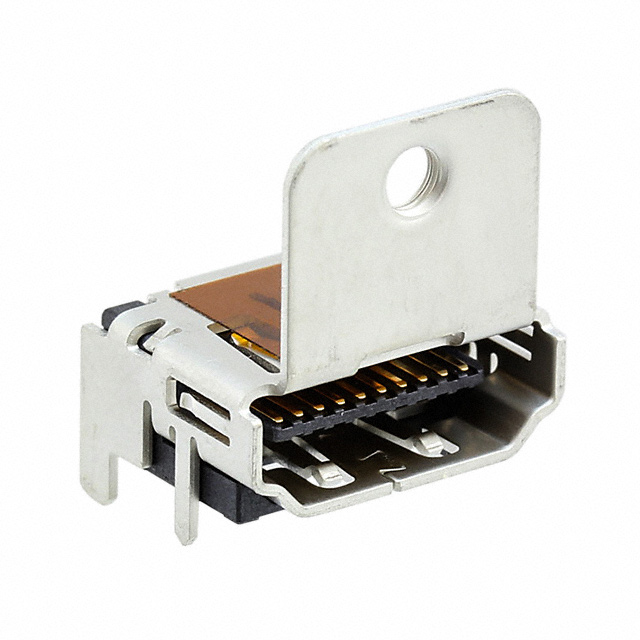

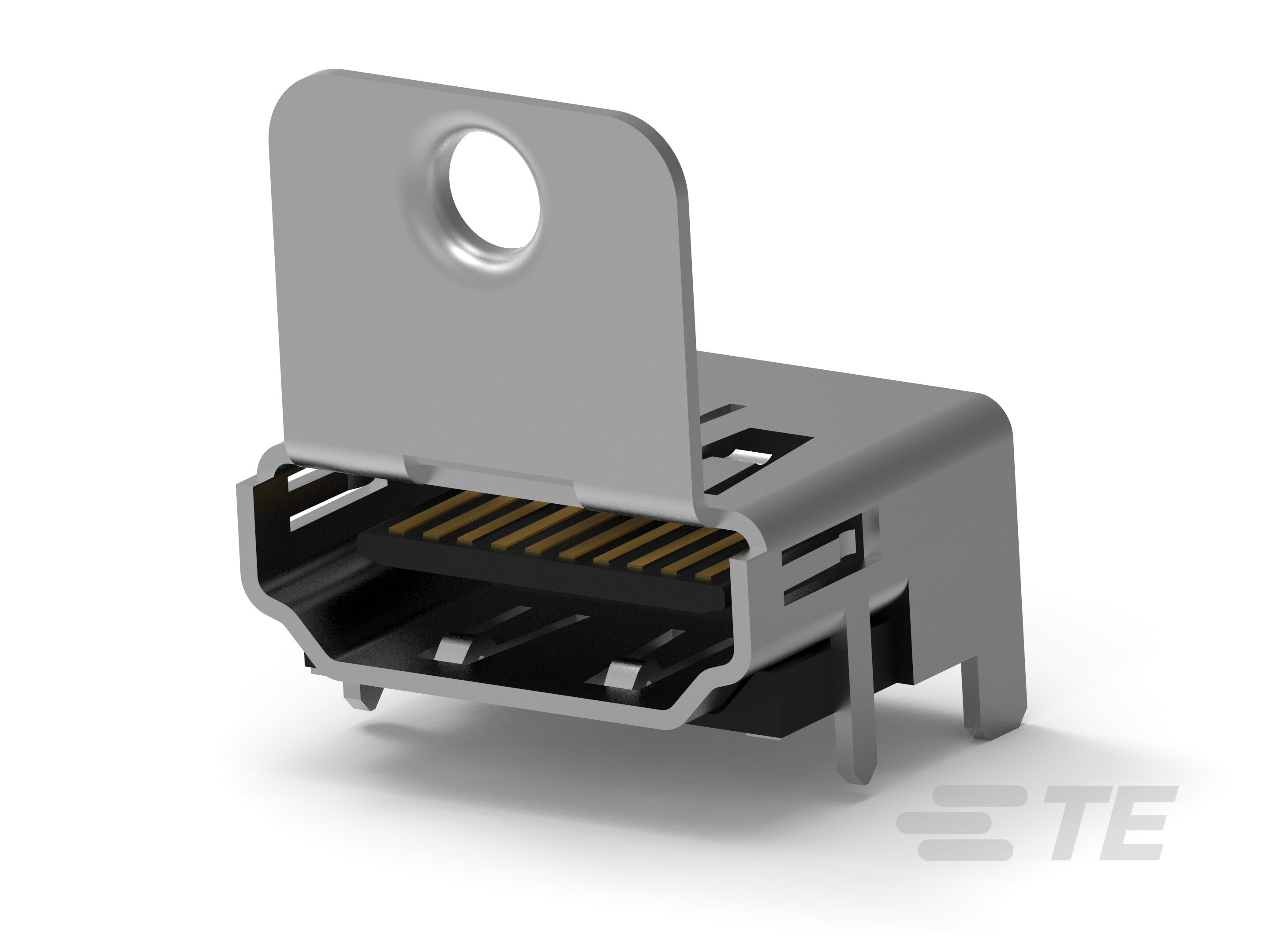

HDMI, DISPLAYPORT & DVI CONNECTORS ASSY HDMI RECEPTACLE SMT
| Part | Contact Finish | Shell/Shielding Material | Insulation Color | Material Flammability Rating | Mating Cycles | Number of Contacts | Features | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Gender | Voltage - Rated | Termination | Mounting Type | Number of Ports | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | Board Guide | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A |
 TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A | |
 TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A | |
 TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | HDMI | -25 °C | 70 °C | Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A | |
 TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A | |
TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | Board Guide | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A |
 TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A | |
TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A | |
TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | Board Guide | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A |
 TE Connectivity AMP Connectors | Gold | Copper Alloy | Black | UL94 V-0 | 10000 | 19 | HDMI | -25 °C | 70 °C | Flange Horizontal | Receptacle | 40 VAC | Solder | Panel Mount Surface Mount Right Angle Through Hole | 1 | 0.5 A |
