NPPC302 Series

Catalog

CONN HDR 60POS 0.1 GOLD PCB

Part	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Contact Material	Number of Rows [custom]	Insulation Color	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Current Rating (Amps)	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Type	Voltage Rating	Connector Type	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions NPPC302LFBN-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	2	Black	0.335 "	8.51 mm	UL94 V-0	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm	60	3 A	Push-Pull	0.126 "	3.2 mm	Solder	Female Socket	250 V	Header	Gold	Gold	All	Flash	0.1 in	2.54 mm

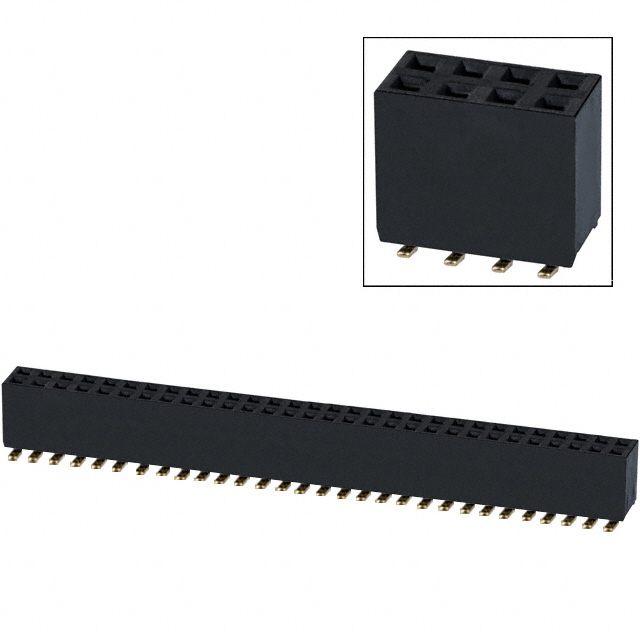

Sullins Connector Solutions NPPC302KFMS-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	2	Black		7.6 mm	UL94 V-0	-40 C	125 °C	Surface Mount	0.1 "	2.54 mm	60	3 A	Push-Pull			Solder	Female Socket	250 V	Header	Gold	Gold	All	Flash	0.1 in	2.54 mm	0.299 "
Sullins Connector Solutions NPPC302LJBN-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	2	Black			UL94 V-0	-40 C	105 ░C	Right Angle Through Hole	0.1 "	2.54 mm	60	3 A	Push-Pull			Solder	Female Socket	250 V	Header	Gold	Gold	All	Flash	0.1 in	2.54 mm	0.2 in	5.08 mm	0.124 in	3.15 mm
