HE6HWPR Series

Catalog

EUROSTRIP 2P12MM STANDOFF 40A 60

Part	Number of Rows	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Block Type	Top Termination	Barrier Type	Number of Wire Entries	Current Rating	Number of Circuits	Pitch	Bottom Termination	Voltage Rating	Material - Insulation	Terminal Screw Finish	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Terminal Screw Material	Mounting Type
Altech Corporation HE6HWPR/02	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	4	40 A	2	0.472 in	Closed	600 V
Altech Corporation HE6HWPR/03	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	6	40 A	3	0.472 in	Closed	600 V	Nylon 6/6 PA66 Polyamide	Blue Chromate	UL94 V-0	-30 °C	125 °C	Steel	Chassis Panel
Altech Corporation HE6HWPR/06	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	12	40 A	6	0.472 in	Closed	600 V	Nylon 6/6 PA66 Polyamide	Blue Chromate	UL94 V-0	-30 °C	125 °C	Steel	Chassis Panel

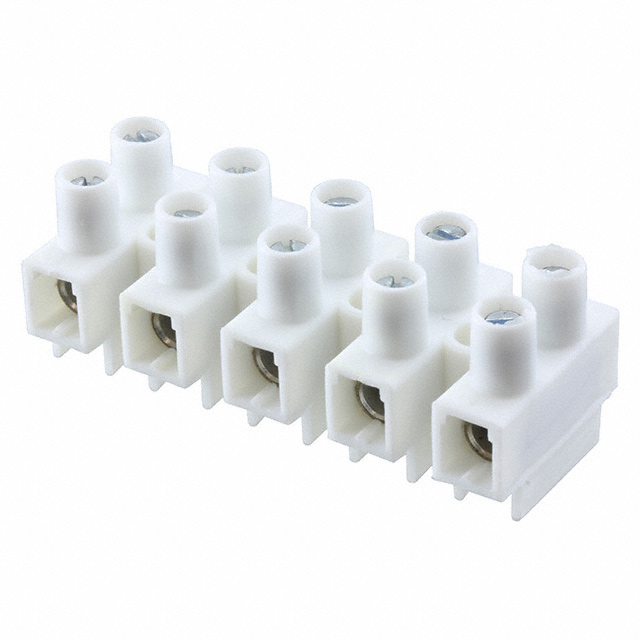

Altech Corporation HE6HWPR/05	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	10	40 A	5	0.472 in	Closed	600 V	Nylon 6/6 PA66 Polyamide	Blue Chromate	UL94 V-0	-30 °C	125 °C	Steel	Chassis Panel

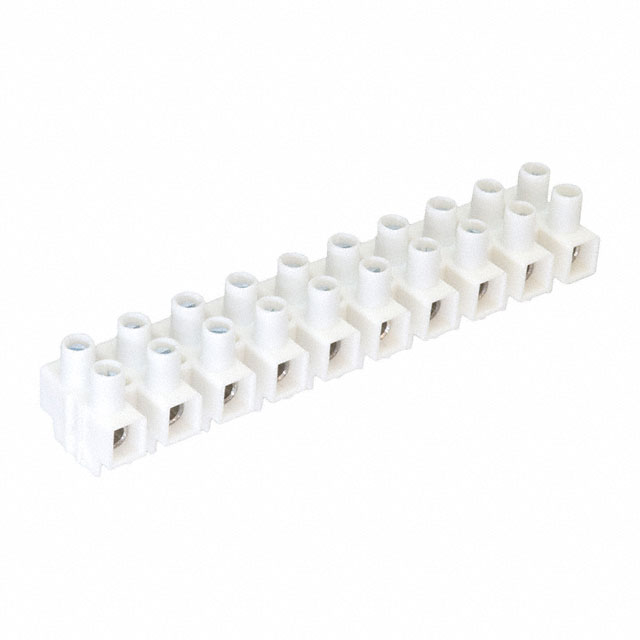

Altech Corporation HE6HWPR/10	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	20	40 A	10	0.472 in	Closed	600 V	Nylon 6/6 PA66 Polyamide	Blue Chromate	UL94 V-0	-30 °C	125 °C	Steel	Chassis Panel
Altech Corporation HE6HWPR/07	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	14	40 A	7	0.472 in	Closed	600 V
Altech Corporation HE6HWPR/04	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	8	40 A	4	0.472 in	Closed	600 V	Nylon 6/6 PA66 Polyamide	Blue Chromate	UL94 V-0	-30 °C	125 °C	Steel	Chassis Panel
Altech Corporation HE6HWPR/11	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	22	40 A	11	0.472 in	Closed	600 V
Altech Corporation HE6HWPR/08	2	White	10 AWG	20.5 AWG	Eurostyle Terminal Strip	Screws	Enclosed	16	40 A	8	0.472 in	Closed	600 V
