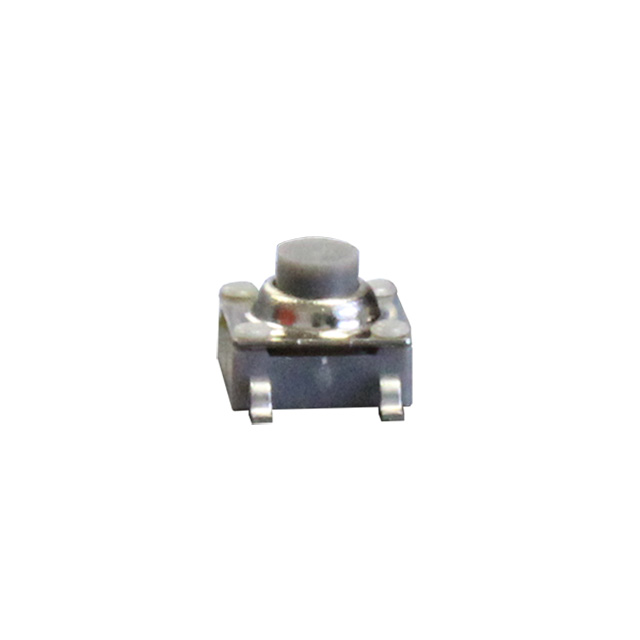

STR4.3 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

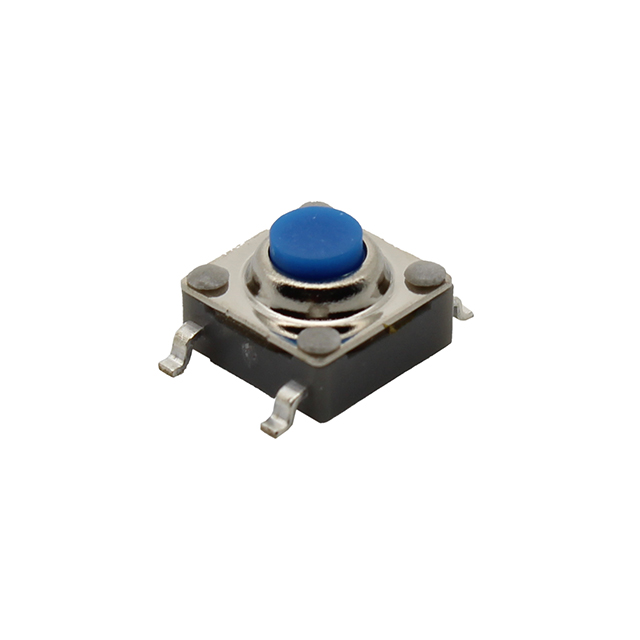

SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Actuator Material | Switch Travel | Operating Force | Mounting Type | Termination Style | Contact Rating @ Voltage | Circuit | Illumination | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Type | Actuator Orientation | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Polyamide (PA6T) Nylon 6T | 0.28 mm | 160 gf | Surface Mount | Gull Wing | 0.05 A 48 VDC | SPST-NO | Non-Illuminated | IP67 - Dust Tight Waterproof | 85 °C | -40 C | Off-Mom | Standard | Top Actuated | 6.2 mm | 6.2 mm | 4.3 mm |
 CIT Relay and Switch | Polyamide (PA6T) Nylon 6T | 0.28 mm | 0.2 kgf | Surface Mount | Gull Wing | 0.05 A 48 VDC | SPST-NO | Non-Illuminated | IP67 - Dust Tight Waterproof | 85 °C | -40 C | Off-Mom | Standard | Top Actuated | 6.2 mm | 6.2 mm | 4.3 mm |
