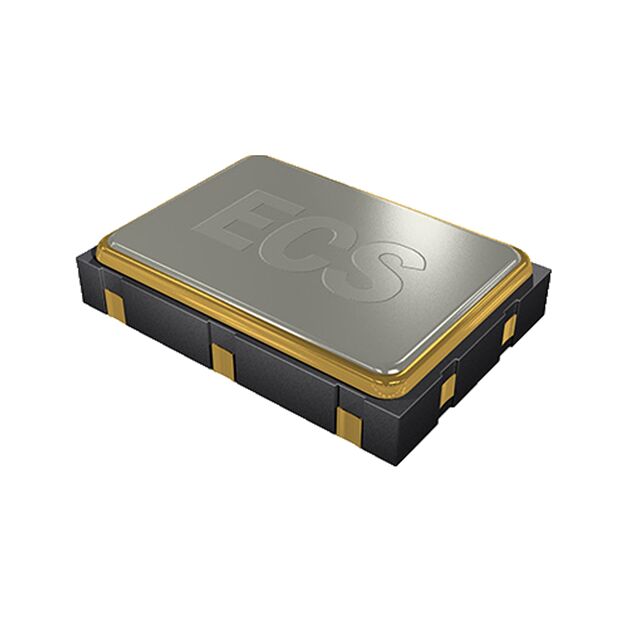

ECX-H Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS XTAL OSC XO 12.2880MHZ HCMOS SMD

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Frequency	Frequency Stability	Base Resonator [custom]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Output	Function	Voltage - Supply	Type	Package / Case	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
ECS Inc. ECX-H25BN-12.288	3.2 mm	0.126 in	5 mm	0.197 in	40 mA	85 °C	-40 C	Surface Mount	0.051 in	1.3 mm	12.288 MHz	50 ppm	Crystal	5	6-SMD	3.2	HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead
ECS Inc. ECX-H22CM-12.288		0.079 in	2.5 mm	0.098 in	40 mA	70 °C	-20 ░C	Surface Mount			12.288 MHz	25 ppm	Crystal	2.5	6-SMD	2	HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead	2 mm	0.039 in	1 mm
ECS Inc. ECX-H32BN-32.000		0.079 in	2.5 mm	0.098 in	40 mA	85 °C	-40 C	Surface Mount			32 MHz	50 ppm	Crystal	2.5	6-SMD	2	HCMOS	Enable/Disable	3.3 V	XO (Standard)	6-SMD No Lead	2 mm	0.039 in	1 mm
ECS Inc. ECX-H25CM-60.000	3.2 mm	0.126 in	5 mm	0.197 in	40 mA	70 °C	-20 ░C	Surface Mount	0.051 in	1.3 mm	60 MHz	25 ppm	Crystal	5	6-SMD	3.2	HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead
ECS Inc. ECX-H27CM-77.760		0.197 "	7 mm	0.276 "	40 mA	70 °C	-20 ░C	Surface Mount			77.76 MHz	25 ppm	Crystal		6-SMD (7x5)		HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead	5 mm	0.067 in	1.7 mm
ECS Inc. ECX-H25CM-11.0592	3.2 mm	0.126 in	5 mm	0.197 in	40 mA	70 °C	-20 ░C	Surface Mount	0.051 in	1.3 mm	11.0592 MHz	25 ppm	Crystal	5	6-SMD	3.2	HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead
ECS Inc. ECX-H27CM-75.000		0.197 "	7 mm	0.276 "	40 mA	70 °C	-20 ░C	Surface Mount			75 MHz	25 ppm	Crystal		6-SMD (7x5)		HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead	5 mm	0.067 in	1.7 mm
ECS Inc. ECX-H25CM-80.000	3.2 mm	0.126 in	5 mm	0.197 in	40 mA	70 °C	-20 ░C	Surface Mount	0.051 in	1.3 mm	80 MHz	25 ppm	Crystal	5	6-SMD	3.2	HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead
ECS Inc. ECX-H27CM-25.000		0.197 "	7 mm	0.276 "	40 mA	70 °C	-20 ░C	Surface Mount			25 MHz	25 ppm	Crystal		6-SMD (7x5)		HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead	5 mm	0.067 in	1.7 mm
ECS Inc. ECX-H23CM-12.000		0.098 in	3.2 mm	0.126 "	40 mA	70 °C	-20 ░C	Surface Mount			12 MHz	25 ppm	Crystal	3.2	6-SMD	2.5	HCMOS	Enable/Disable	2.5 V	XO (Standard)	6-SMD No Lead	2.5 mm	0.039 in	1 mm
