GF-126 Series
Manufacturer: CW Industries
Beta
⌘K

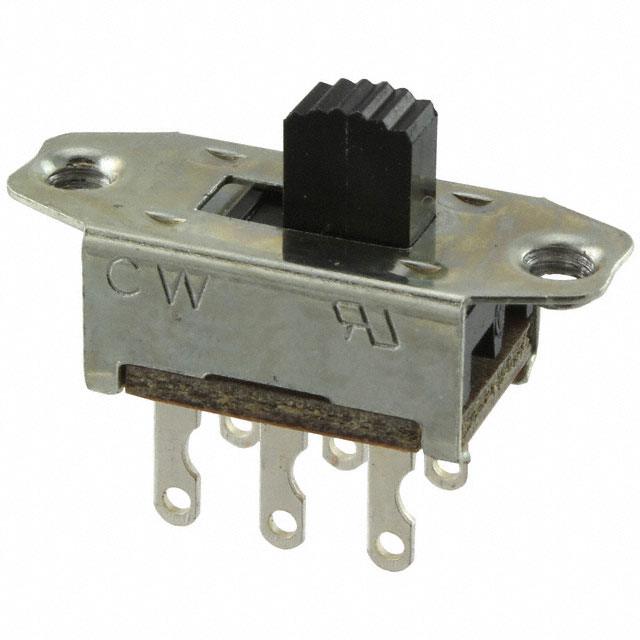

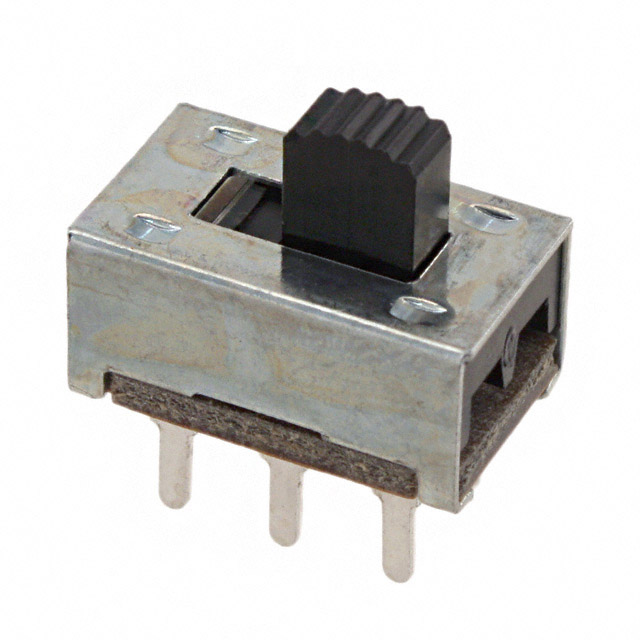

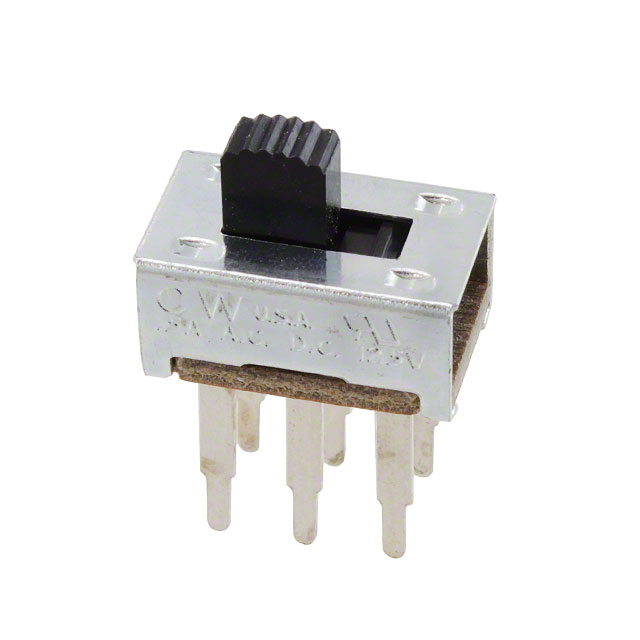

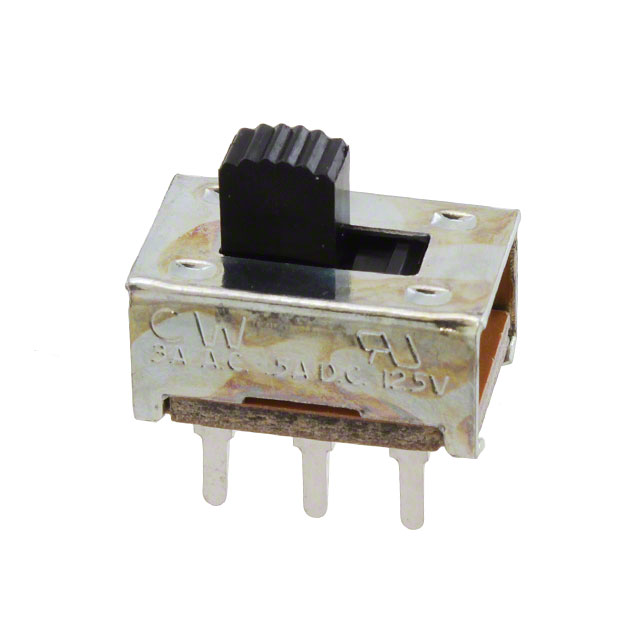

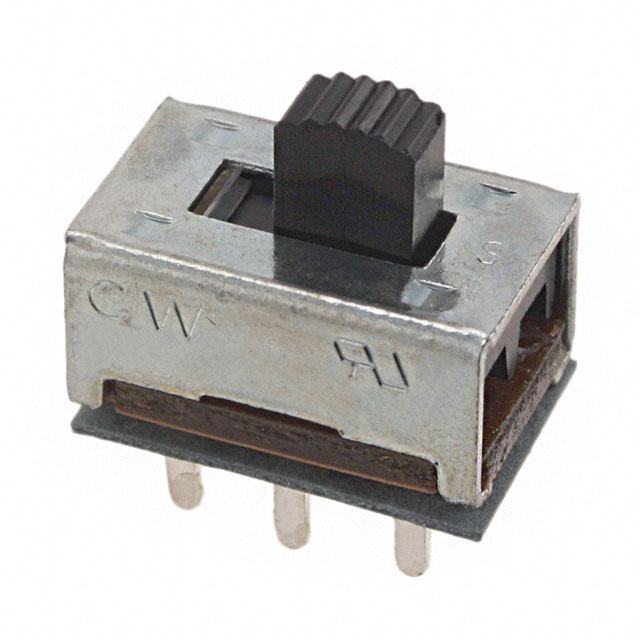

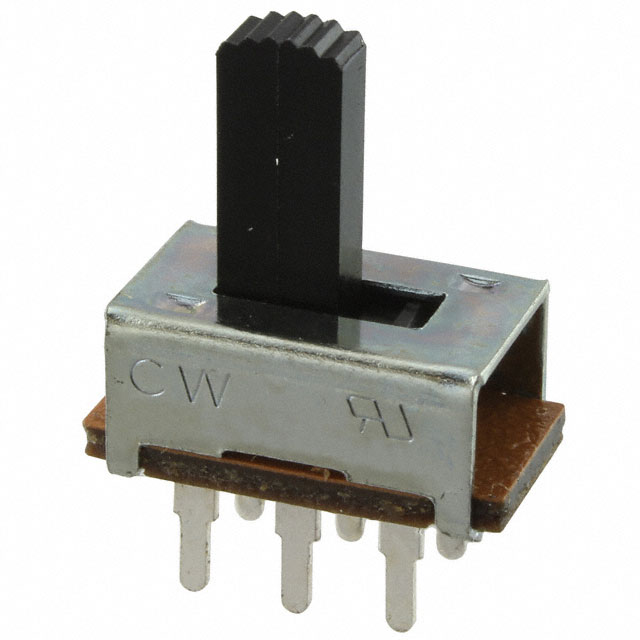

SWITCH SLIDE DPDT 3A 125V
| Part | Switch Travel | Actuator Material | Electrical Life | Mechanical Life | Mounting Type | Current Rating (Amps) | Termination Style | Voltage Rating - DC | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Timing | Switch Function | Actuator Type | Actuator Length [x] | Contact Finish | Voltage Rating - AC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Panel Mount | 3 A 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 5.08 mm | Silver | 125 V | DPDT |
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Through Hole | 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 5.08 mm | Silver | 125 V | DPDT |
CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Panel Mount | 3 A 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27 mm | Silver | 125 V | DPDT |
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Through Hole | 8.5 A 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 5.08 mm | Silver | 125 V | DPDT |
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Through Hole | 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 5.08 mm | Silver | 125 V | DPDT |
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Panel Mount | 500 mA | Solder Lug | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 5.08 mm | Silver | 125 V | DPDT |
CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Through Hole | 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27 mm | Silver | 125 V | DPDT |
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Through Hole | 3 A 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 5.08 mm | Silver | 125 V | DPDT |
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Through Hole | 8.5 A 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 11.5 mm | Silver | 125 V | DPDT |
 CW Industries | 3.61 mm | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 10000 Steps | Through Hole | 3 A 500 mA | PC Pin | 125 VDC | Copper | -10 °C | 104 °C | Not Specified | On-On | Standard | 5.08 mm | Silver | 125 V | DPDT |
