TPS23757 Series
Manufacturer: Texas Instruments
Beta
⌘K

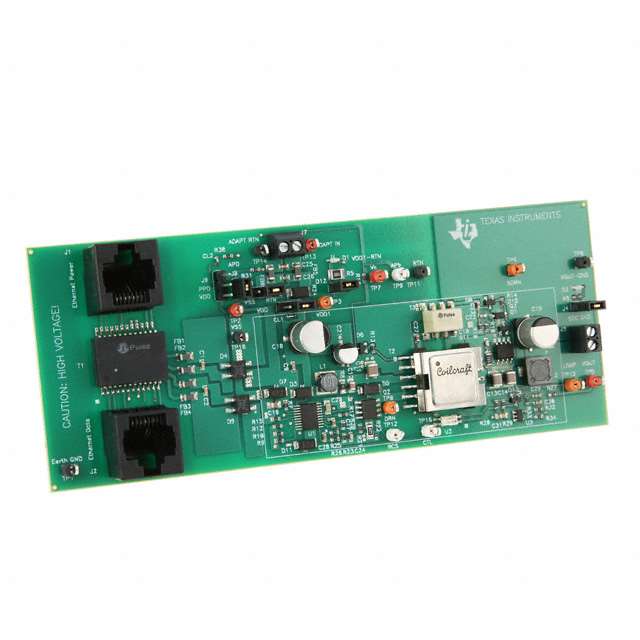

EVALUATION MODULE FOR TPS23757
| Part | Supplied Contents | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Input [Max] | Voltage - Input [Min] | Power - Output | Regulator Topology | Board Type | Voltage - Output | Frequency - Switching | Current - Output | Main Purpose | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Number of Channels | Standards | Auxiliary Sense | Internal Switch(s) | Package / Case [y] | Package / Case | Package / Case [x] | Type | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | TPS23757 | Isolated | 1 | 57 V | 30 V | 11 W | Flyback | Fully Populated | 5 V | 220 kHz | 2.2 A | Power Over Ethernet Special Purpose DC/DC | ||||||||||||||||
 Texas Instruments | Surface Mount | 0 V | 57 V | 20-TSSOP | 125 °C | -40 °C | 920 µA | 1 | 802.3af (PoE) 802.3at (PoE+) | Both | 4.4 mm | 20-TSSOP | 0.173 in | Controller (PD) DC/DC | 13 W | ||||||||||||||
 Texas Instruments | Surface Mount | 0 V | 57 V | 20-TSSOP | 125 °C | -40 °C | 920 µA | 1 | 802.3af (PoE) 802.3at (PoE+) | Both | 4.4 mm | 20-TSSOP | 0.173 in | Controller (PD) DC/DC | 13 W |
