OA254LF Series

Catalog

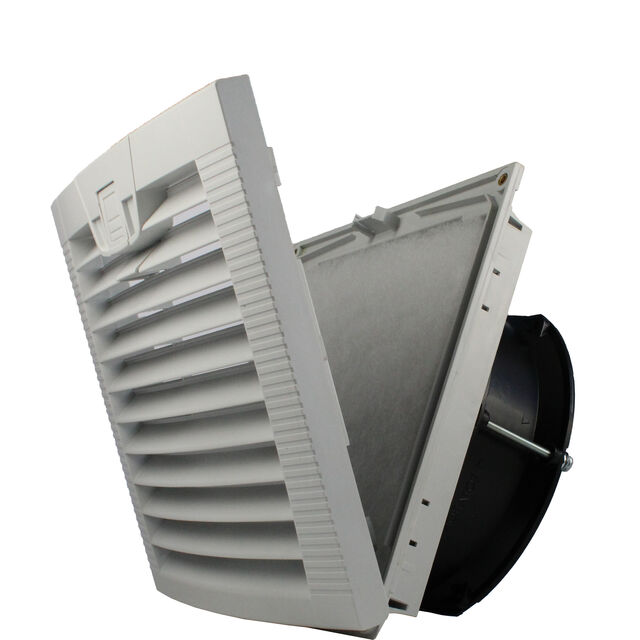

LOUVERED FILTER FAN HINGED GUARD KIT WITH 254 MM FAN INSTALLED, 115V

Part	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Lifetime @ Temp.	RPM	Termination	Features	Noise	Static Pressure	Static Pressure	Approval Agency	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Bearing Type	Voltage - Rated	Width [x]	Termination	Size / Dimension [y]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
ORION FANS OA254LFGH111T	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	0.29 A	40 °C 60000 Hrs	1650 RPM	2 Terminals or 2 Wire Leads	Capacitor Kit Thermal Overload Protector (TOP)	55 dB(A)	0.39 in H2O	97.1 Pa	cURus TUV	547 CFM	15.32 m³/min	-20 ░C	70 °C	33 W	142.4 mm	322.7 mm	322.7 mm	Tubeaxial	Ball	115 VAC
ORION FANS OA254LFGH221TXC	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC		40 °C 60000 Hrs	2700 RPM	2 Terminals or 2 Wire Leads	Capacitor Kit Thermal Overload Protector (TOP)	69 dB	0.78 in H2O	194.3 Pa	cURus TUV	850 CFM	23.8 mł/min	-20 ░C	70 °C	75 W	142.4 mm	322.7 mm	322.7 mm	Tubeaxial	Ball	230 VAC

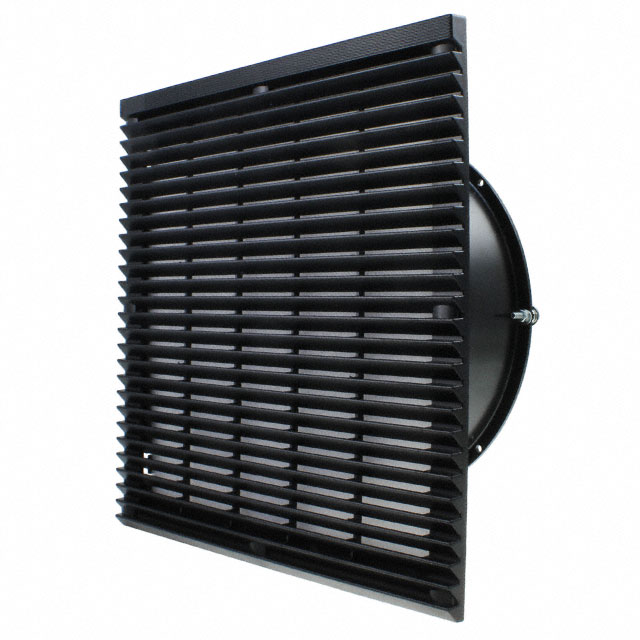

ORION FANS OA254LFG221T	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	140 mA	40 °C 60000 Hrs	1650 RPM		Capacitor Kit Thermal Overload Protector (TOP)	55 dB(A)	0.39 in H2O	97.1 Pa	cURus TUV	547 CFM	15.32 m³/min	-20 ░C	80 °C	33 W		320 mm	320 mm	Tubeaxial	Ball	230 VAC	122.5 mm	2
ORION FANS OA254LFGS221TXC	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC		40 °C 60000 Hrs	2700 RPM	2 Terminals or 2 Wire Leads	Capacitor Kit Thermal Overload Protector (TOP)	69 dB	0.78 in H2O	194.3 Pa	cURus TUV	850 CFM	23.8 mł/min	-20 ░C	70 °C	75 W	130.5 mm	317 mm		Tubeaxial	Ball	230 VAC			317 mm
ORION FANS OA254LFGS111T	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	0.29 A	40 °C 60000 Hrs	1650 RPM	2 Terminals or 2 Wire Leads	Capacitor Kit Thermal Overload Protector (TOP)	55 dB(A)	0.39 in H2O	97.1 Pa	cURus TUV	547 CFM	15.32 m³/min	-20 ░C	70 °C	33 W	130.5 mm	317 mm		Tubeaxial	Ball	115 VAC			317 mm
ORION FANS OA254LFG111TXC	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC		40 °C 60000 Hrs	2700 RPM		Capacitor Kit	69 dB	0.78 in H2O	194.3 Pa	cURus TUV	850 CFM	23.8 mł/min	-40 C	70 °C	75 W		320 mm	320 mm	Tubeaxial	Ball	115 VAC	122.5 mm	2		IP54 - Dust Protected Water Resistant	70 °C	-40 °C
ORION FANS OA254LFGS221T	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	0.29 A	40 °C 60000 Hrs	1650 RPM	2 Terminals or 2 Wire Leads	Capacitor Kit Thermal Overload Protector (TOP)	55 dB(A)	0.39 in H2O	97.1 Pa	cURus TUV	547 CFM	15.32 m³/min	-20 ░C	70 °C	33 W	130.5 mm	317 mm		Tubeaxial	Ball	230 VAC			317 mm
ORION FANS OA254LFG221TXC	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC		40 °C 60000 Hrs	2700 RPM		Capacitor Kit	69 dB	0.78 in H2O	194.3 Pa	cURus TUV	850 CFM	23.8 mł/min	-40 C	70 °C	75 W		320 mm	320 mm	Tubeaxial	Ball	230 VAC	122.5 mm	2		IP54 - Dust Protected Water Resistant	70 °C	-40 °C

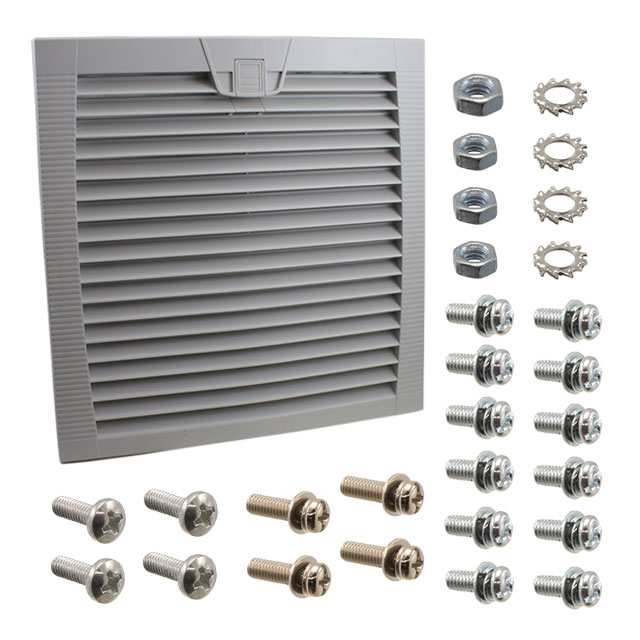

ORION FANS OA254LFGH111TXC	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC		40 °C 60000 Hrs	2700 RPM	2 Terminals or 2 Wire Leads	Capacitor Kit Thermal Overload Protector (TOP)	69 dB	0.78 in H2O	194.3 Pa	cURus TUV	850 CFM	23.8 mł/min	-20 ░C	70 °C	75 W	142.4 mm	322.7 mm	322.7 mm	Tubeaxial	Ball	115 VAC
