6300UE Series
Manufacturer: Belden Inc.
Beta
⌘K

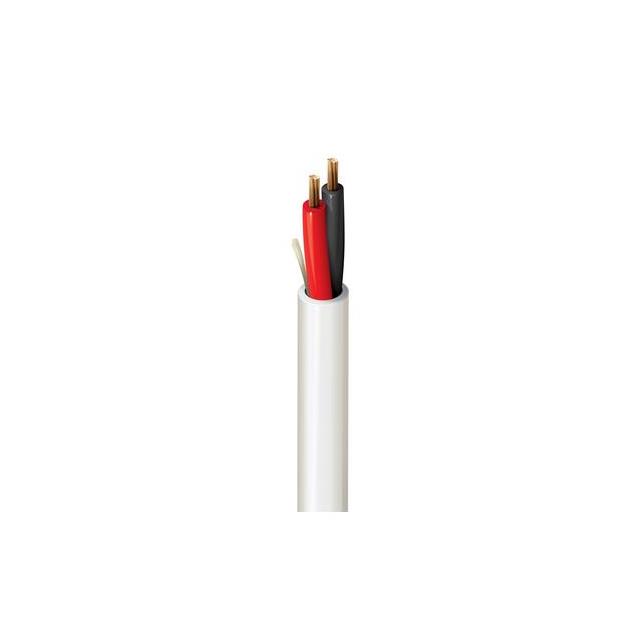

CABLE 2COND 18AWG BLACK
| Part | Usage | Length | Length | Wire Gauge | Voltage | Number of Conductors | Jacket Color | Features | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Material | Cable Type | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Commercial Audio | 304.8 m | 1000 ft | 18 AWG | 300 VDC | 2 | Black | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 304.8 m | 1000 ft | 18 AWG | 300 VDC | 2 | Yellow | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 304.8 m | 1000 ft | 18 AWG | 300 VDC | 2 | Gray | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 18 AWG | 300 VDC | 2 | Black | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) | ||
Belden Inc. | Commercial Audio | 152.4 m | 500 ft | 18 AWG | 300 VDC | 2 | Black | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 76.2 m | 250 ft | 18 AWG | 300 VDC | 2 | White | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 152.4 m | 500 ft | 18 AWG | 300 VDC | 2 | Gray | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 304.8 m | 1000 ft | 18 AWG | 300 VDC | 2 | Natural | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 152.4 m | 500 ft | 18 AWG | 300 VDC | 2 | White | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
Belden Inc. | Commercial Audio | 152.4 m | 500 ft | 18 AWG | 300 VDC | 2 | Black | Rip Cord | 75 ░C | 0 °C | 26 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | Copper Bare | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) |
