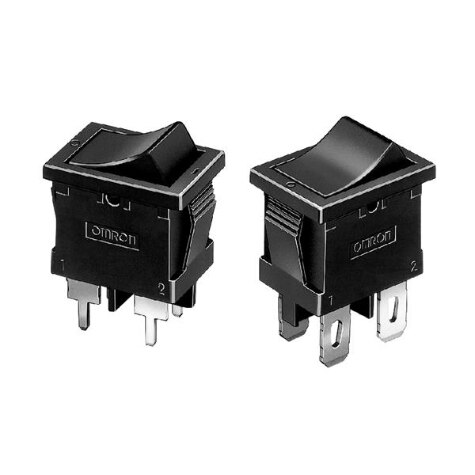

A8L Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
ROCKER; DPST; POS: 2; ON-OFF; 10A/250VAC; BLACK; IP40; NONE; A8L
| Part | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - AC | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Ingress Protection | Actuator Type | Color - Actuator/Cap | Termination Style | Mounting Type | Switch Function | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10 A | 12.9 mm | 19.2 mm | 125 V | OFF ON Vertical | 55 °C | -20 ░C | DPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Snap-In | On-Off | cUL UL |
Omron Electronics Inc-EMC Div | 10 A | 17.5 mm | 19.2 mm | 125 V | OFF ON Vertical | 55 °C | -20 ░C | SPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Right Angle Snap-In | On-Off | cUL UL |
Omron Electronics Inc-EMC Div | 10 A | 12.9 mm | 19.2 mm | 125 V | OFF ON Vertical | 55 °C | -20 ░C | SPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Snap-In | On-Off | cULus EN UL |
Omron Electronics Inc-EMC Div | 10 A | 17.5 mm | 19.2 mm | 125 V | O I | 55 °C | -20 ░C | DPST | Concave (Curved) | Black | PC Pin | Panel Mount Right Angle Snap-In | On-Off | cUL UL | |
 Omron Electronics Inc-EMC Div | 10 A | 12.9 mm | 19.2 mm | 125 V | OFF ON Vertical | 55 °C | -20 ░C | DPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Snap-In | On-Off | cUL UL |
Omron Electronics Inc-EMC Div | 10 A | 12.9 mm | 19.2 mm | 125 V | OFF ON Vertical | 55 °C | -20 ░C | SPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Snap-In | On-Off | cUL UL |
Omron Electronics Inc-EMC Div | 10 A | 12.9 mm | 19.2 mm | 125 V | OFF ON Vertical | 55 °C | -20 ░C | DPST | IP40 | Concave (Curved) | Black | Quick Connect | Panel Mount Snap-In | On-Off | cUL UL |
Omron Electronics Inc-EMC Div | 10 A | 17.5 mm | 19.2 mm | 125 V | O - | 55 °C | -20 ░C | SPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Right Angle Snap-In | On-Off | cUL UL |
Omron Electronics Inc-EMC Div | 10 A | 17.5 mm | 19.2 mm | 125 V | OFF ON Vertical | 55 °C | -20 ░C | DPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Right Angle Snap-In | On-Off | cUL UL |
Omron Electronics Inc-EMC Div | 10 A | 12.9 mm | 19.2 mm | 125 V | O - | 55 °C | -20 ░C | SPST | IP40 | Concave (Curved) | Black | PC Pin | Panel Mount Snap-In | On-Off | cULus EN UL |
