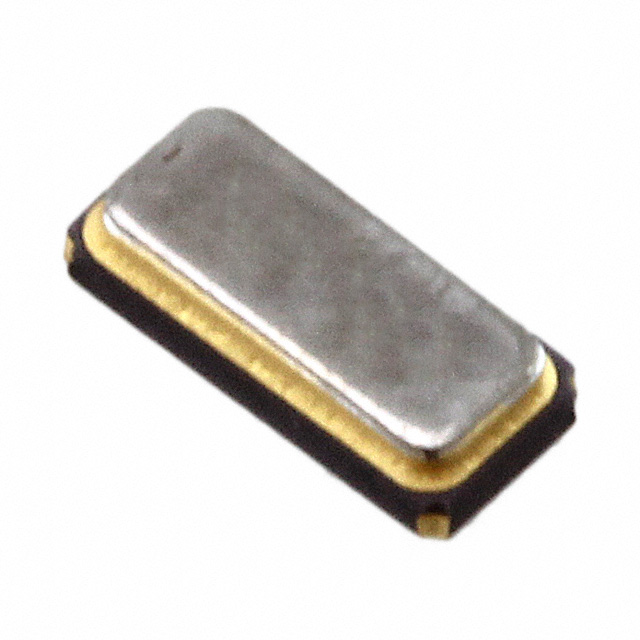

AH Series

Catalog

CRYSTALS 3.0X1.5 - 32.768KHZ QUARTZ XTAL - AUTOMOTIVE GRADE / CERAMIC, +/-10PPM A.25C, -40 TO 85C OPERATING TEMP, 6PF - AEC-Q200 CERTIFIED

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Tolerance	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Frequency	ESR (Equivalent Series Resistance)	Load Capacitance	Mounting Type	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Type	Operating Mode
TXC CORPORATION AH-32.768KEZC-T	0.033 in	0.85 mm	85 °C	-40 C	10 ppm	AEC-Q200	1.5 mm	3.2 mm	0.126 in	0.059 "	2-SMD No Lead	0.032768 MHz	70 kOhms	9 pF	Surface Mount	1.5	2-SMD	3.2	kHz Crystal (Tuning Fork)
TXC CORPORATION AH03270003	0.033 in	0.85 mm	85 °C	-40 C	20 ppm	AEC-Q200	1.5 mm	3.2 mm	0.126 in	0.059 "	2-SMD No Lead	0.032768 MHz	70 kOhms	12.5 pF	Surface Mount	1.5	2-SMD	3.2	kHz Crystal (Tuning Fork)	Fundamental
