MAP80 Series

Catalog

AC/DC CNVRTR 5V 24V +/-15V 80W

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Output 1	Current - Output 1 [custom]	Voltage - Output 3	Operating Temperature [Max]	Voltage - Output 4	Approval Agency	Type	Number of Outputs	Current - Output 2	Voltage - Isolation	Voltage - Output 2	Current - Output 4	Power (Watts)	Mounting Type	Applications	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1

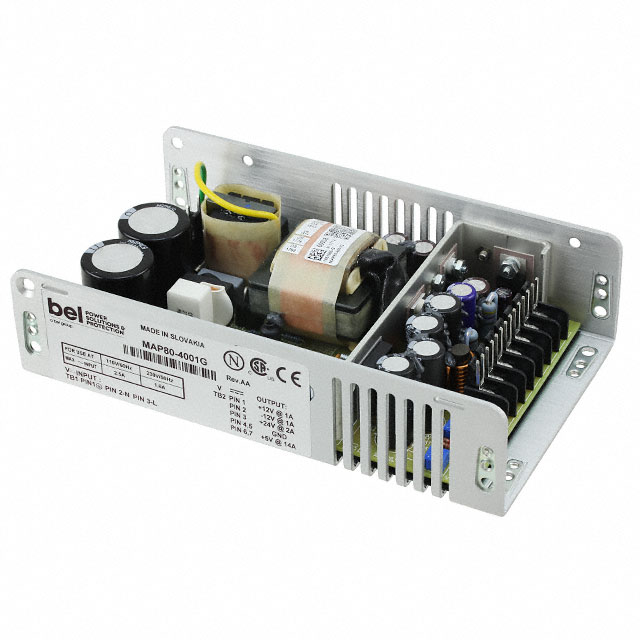

Bel Fuse Inc. MAP80-4004G	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V	14 A	-15 V	70 °C	15 V	CE	Open Frame	4	2 A	2.6 kV	24 V	1 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC
Bel Fuse Inc. MAP80-4003	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V	14 A	-5 V	70 °C	-15 V	CE	Open Frame	4	4 A	2.6 kV	15 V	1 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC
Bel Fuse Inc. MAP80-1024	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	24 V			70 °C		CE	Open Frame	1		2.6 kV			80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC	3.8 A
Bel Fuse Inc. MAP80-4004	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V	14 A	-15 V	70 °C	15 V	CE	Open Frame	4	2 A	2.6 kV	24 V	1 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC
Bel Fuse Inc. MAP80-4001G	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V	14 A	-12 V	70 °C	12 V	CE	Open Frame	4	2 A	2.6 kV	24 V	1 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC
Bel Fuse Inc. MAP80-4000G	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V		-5 V	70 °C	-12 V	CE	Open Frame	4	7 A	2.6 kV	12 V	1 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC	16 A
Bel Fuse Inc. MAP80-1012G	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	12 V			70 °C		CE	Open Frame	1		2.6 kV			80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC
Bel Fuse Inc. (MAP80-4000)	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V		-5 V	70 °C	-12 V	CE	Open Frame	4	7 A	2.6 kV	12 V	1 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC	16 A
Bel Fuse Inc. (MAP80-4002)	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V	14 A	-12 V	70 °C	12 V	CE	Open Frame	4	4 A	2.6 kV	12 V	1 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC
Bel Fuse Inc. MAP80-4010G	182.9 mm	7.2 "	1.8 in	106.7 mm	45.7 mm	4.2 in	Adjustable Output Universal Input	5 V	14 A	-5 V	70 °C	-12 V	CE	Open Frame	4	4 A	2.6 kV	12 V	3 A	80 W	Chassis Mount	ITE (Commercial)	80 %	264 VAC	90 VAC
