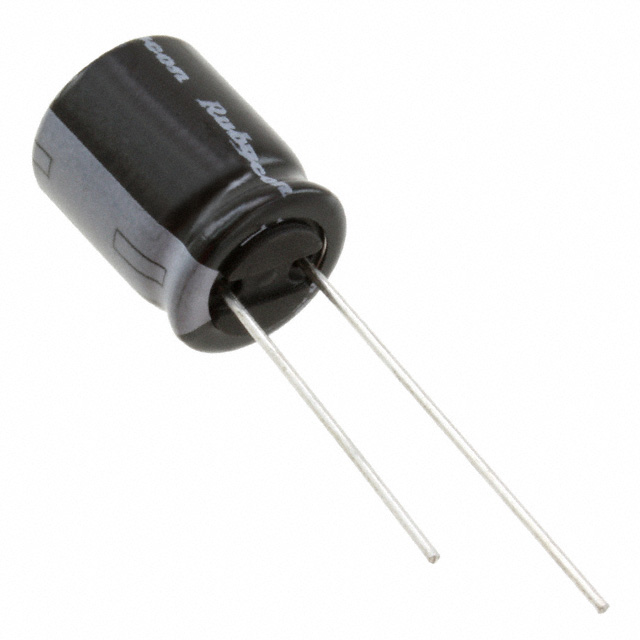

YXF Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW IMPEDANCE ELECTROLYTIC CAPACITORS

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Capacitance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Ripple Current @ High Frequency	Impedance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Applications	Lead Spacing	Lead Spacing	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]
Rubycon 100YXF220MEFC16X25	1.063 in	27 mm	20 %	220 µF	630 mA	10000 Hrs	900 mA	73 mOhms	100 V	0.63 in	16 mm	Polar	General Purpose	0.295 in	7.5 mm	Can Radial	Through Hole	-40 C	105 ░C
Rubycon 25YXF330MEFC10X12.5	0.551 in	14 mm	20 %	330 µF	406 mA	7000 Hrs	580 mA	0.16 Ohms	25 VDC	0.394 in	10 mm	Polar	General Purpose	0.197 "	5 mm	Can Radial	Through Hole	-40 C	105 ░C
Rubycon 25YXF100MEFC6.3X11		0.492 in	20 %	100 µF	175 mA	5000 Hrs	250 mA	400 mOhms	25 VDC	0.248 "	6.3 mm	Polar	General Purpose	0.098 in	2.5 mm	Can Radial	Through Hole	-40 C	105 ░C	12.5 mm
Rubycon 16YXF2200MEFC12.5X25	1.063 in	27 mm	20 %	2200 µF	1.32 A	10000 Hrs	1.65 A	48 mOhms	16 V	0.492 in	12.5 mm	Polar	General Purpose	0.197 "	5 mm	Can Radial	Through Hole	-40 C	105 ░C
Rubycon 10YXF220MEFC6.3X11		0.492 in	20 %	220 µF	175 mA	4000 Hrs	250 mA	400 mOhms	10 V	0.248 "	6.3 mm	Polar	General Purpose	0.098 in	2.5 mm	Can Radial	Through Hole	-40 C	105 ░C	12.5 mm
Rubycon 63YXF33MEFC6.3X11		0.492 in	20 %	33 ÁF	77 mA	5000 Hrs	140 mA	1.2 Ohm	63 V	0.248 "	6.3 mm	Polar	General Purpose	0.098 in	2.5 mm	Can Radial	Through Hole	-40 C	105 ░C	12.5 mm
