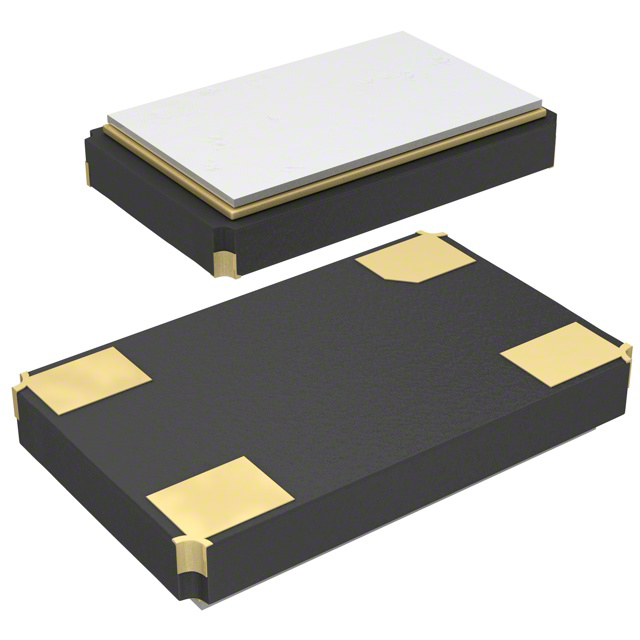

ECX-53BQ Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 24.000MHZ 18PF 100PPM -40 TO 125C

Part	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Operating Mode	Frequency Stability	Frequency Tolerance	Ratings	Load Capacitance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Mounting Type
ECS Inc. ECS-240-18-30BQ-DS	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	MHz Crystal	Fundamental	100 ppm	30 ppm	AEC-Q200	18 pF	30 Ohm	0.033 in	0.85 mm	125 °C	-40 C	24 MHz	Surface Mount
ECS Inc. ECS-200-18-30BQ-DS	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	MHz Crystal	Fundamental	100 ppm	30 ppm	AEC-Q200	18 pF	40 Ohms	0.033 in	0.85 mm	125 °C	-40 C	20 MHz	Surface Mount
ECS Inc. ECS-120-12-30BQ-AEN-TR	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	MHz Crystal	Fundamental	50 ppm	25 ppm	AEC-Q200	12 pF	80 Ohm	0.033 in	0.85 mm	85 °C	-40 C	12 MHz	Surface Mount
