HM25S Series

Catalog

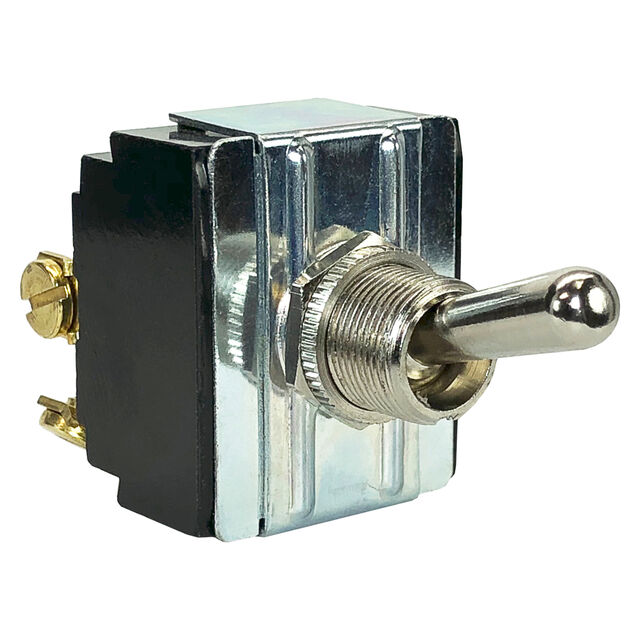

TOGGLE SWITCH, UNSEALED, (ON)-OFF-(ON), 3PDT, NON ILLUMINATED, H SERIES, PANEL MOUNT, 15 A

Part	Actuator Material	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Bushing Thread	Illumination	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Circuit	Switch Function	Actuator Type	Voltage Rating - AC	Termination Style
Carling Technologies HM25S-73	Brass Nickel Plated	25000 Steps	0 °C	85 °C	Panel Mount	15/32-32	Non-Illuminated	15 A	12.7 mm	17.45 mm	3PDT	Mom-Off-Mom	Standard Round	125 V	Screw Terminal
