56K611 Series
Manufacturer: Rosenberger
Beta
⌘K

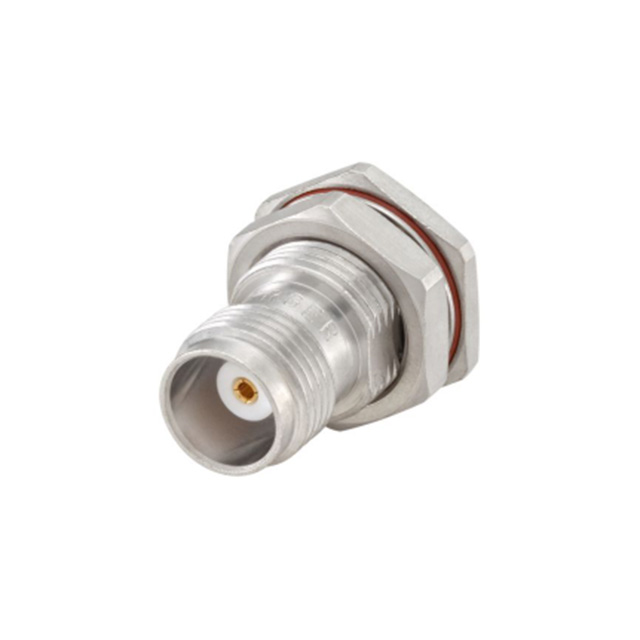

CONN TNC JACK STR 50OHM SOLDER
| Part | Voltage Rating | Body Finish | Mating Cycles | Includes | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Connector Style | Impedance | Number of Ports | Ingress Protection | Connector Type | Cable Group | Mounting Feature | Housing Color | Frequency - Max [Max] | Mounting Type | Contact Termination | Fastening Type | Shield Termination | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 V | White Bronze | 500 | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Brass | Gold | 85 °C | -45 °C | Polytetrafluoroethylene (PTFE) | TNC | 50 Ohms | 1 | IP67 - Dust Tight Waterproof | Female Socket Jack | RG-405 (.085" Semi Rigid) | Bulkhead - Front Side Nut | Silver | 10 GHz | Panel Mount | Solder | Threaded | Solder | Bronze |
