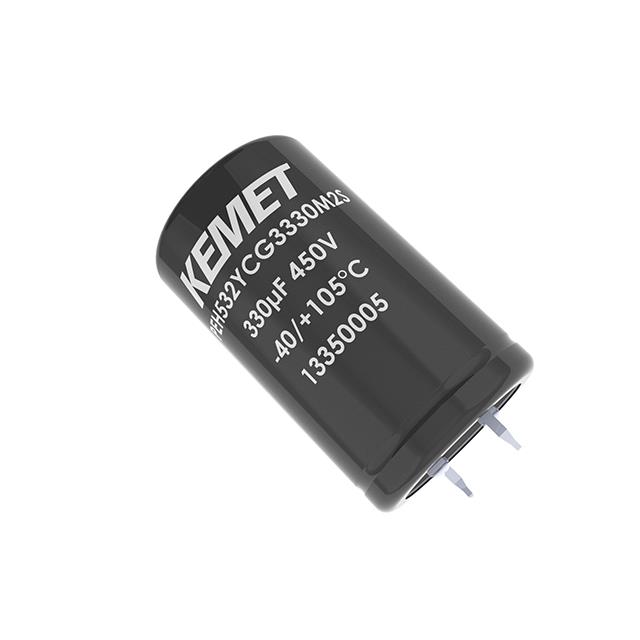

PEH532 Series
Manufacturer: KEMET
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 450V 100UF 20% 105C 1500HRS
| Part | Mounting Type | Ripple Current @ High Frequency | Ripple Current @ Low Frequency | Capacitance | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Package / Case | Polarization | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Applications | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Through Hole | 1.8 A | 600 mA | 100 µF | 37 mm | 1.457 in | Radial Can - Snap-In | Polar | 20 % | 450 V | 910 mOhm | General Purpose | 0.394 in | 10 mm | -40 C | 105 ░C | 0.866 " | 22 mm | 2000 Hrs |
