BUK9606 Series

Catalog

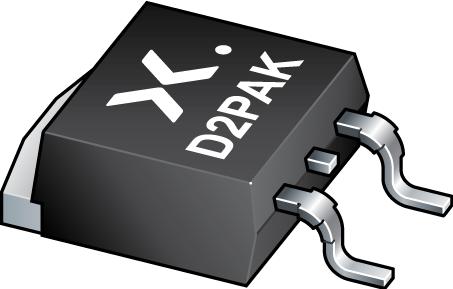

MOSFET N-CH 40V 75A D2PAK

Part	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max) [Max]	Qualification	Vgs(th) (Max) @ Id	Mounting Type	Supplier Device Package	Vgs (Max)	Package / Case	Technology	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]
Nexperia USA Inc. BUK9606-40B,118	4901 pF	N-Channel	Automotive	175 °C	-55 °C	44 nC	40 V	5 mOhm	5 V 10 V	203 W	AEC-Q101	2 V	Surface Mount	D2PAK	15 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	MOSFET (Metal Oxide)	75 A
Nexperia USA Inc. BUK9606-55A,118		N-Channel	Automotive	175 °C	-55 °C		55 V	5.8 mOhm	4.5 V 10 V		AEC-Q101	2 V	Surface Mount	D2PAK	15 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	MOSFET (Metal Oxide)	75 A	300 W	8600 pF
