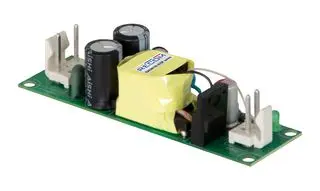

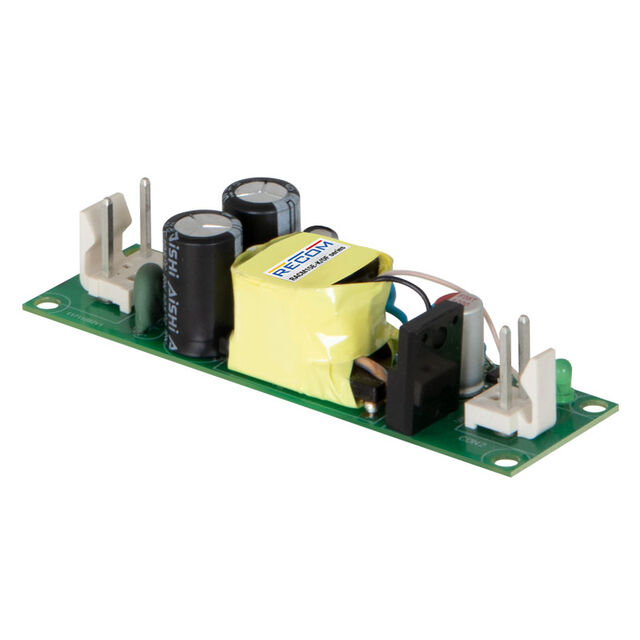

15W AC/DC-CONVERTER 'POWERLINE' OF 4.2KV REG
15W AC/DC-CONVERTER 'POWERLINE' OF 4.2KV REG
| Part | Minimum Load Required | Voltage - Input [Min] | Voltage - Input [Max] | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Efficiency | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Features | Number of Outputs | Voltage - Isolation | Current - Output 1 | Power (Watts) | Type | Voltage - Output 1 | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 80 VAC 120 VDC | 275 VAC 370 VDC | 60335-1 60601-1 62368-1 | -40 °C | 85 °C | Household Appliances ITE (Commercial) Medical | 86 % | Chassis Mount | 20.3 mm | 3.1 in | 0.8 " | 22.9 mm | 0.9 in | 78.7 mm | Baseplate DC Input Capable PFC Universal Input | 1 | 4.2 kV | 500 mA | 15 W | Open Frame | 30 V | CB Scheme CE cURus FCC UKCA | |
 Recom Power | 80 VAC 120 VDC | 275 VAC 370 VDC | 60335-1 60601-1 62368-1 | -40 °C | 85 °C | Household Appliances ITE (Commercial) Medical | Chassis Mount DIN Rail | 27.9 mm | 81.28 mm | 1.1 in | 25.4 mm | 1 " | 81.3 mm | Baseplate DC Input Capable PFC Universal Input | 1 | 4.2 kV | 3 A | 15 W | Enclosed | 5 V | CB Scheme CE cURus FCC UKCA |
