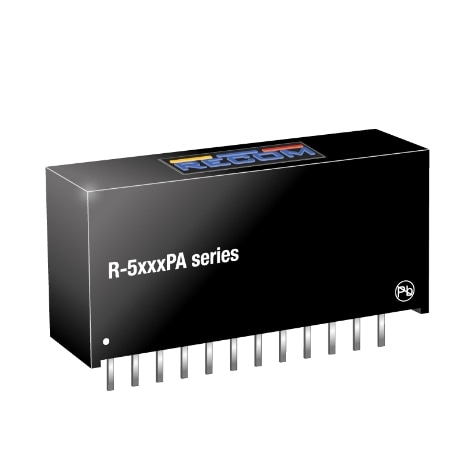

R-5xxxP_DA Series
Manufacturer: Recom Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS DC/DC REG 4.5-18VIN 1.1-4.5OUT
| Part | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Power (Watts) | Voltage - Input (Max) | Current - Output (Max) | Mounting Type | Type | Efficiency | Voltage - Output 1 | Features | Package / Case | Applications | Voltage - Input (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Number of Outputs | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1.27 in | 0.36 in | 0.59 in | 5.4 W | 18 V | 3 A | Through Hole | Non-Isolated PoL Module | 89 % | 1.8 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 4.5 V | -40 °C | 85 °C | 1 | Active High Enable |
 Recom Power | 1.27 in | 0.36 in | 0.59 in | 4.8 W | 18 V | 4 A | Through Hole | Non-Isolated PoL Module | 82 % | 1.2 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 4.5 V | -40 °C | 85 °C | 1 | Active High Enable |
Recom Power | 1.27 in | 0.59 in | 0.36 in | 6.6 W | 18 V | 2 A | Right Angle Through Hole | Non-Isolated PoL Module | 92 % | 3.3 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 4.5 V | -40 °C | 85 °C | 1 | Active High Enable |
 Recom Power | 1.27 in | 0.59 in | 0.36 in | 5 W | 18 V | 2 A | Right Angle Through Hole | Non-Isolated PoL Module | 91 % | 2.5 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 4.5 V | -40 °C | 85 °C | 1 | Active High Enable |
 Recom Power | 1.27 in | 0.36 in | 0.59 in | 9.9 W | 18 V | 3 A | Through Hole | Non-Isolated PoL Module | 94 % | 3.3 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 4.5 V | -40 °C | 85 °C | 1 | Active High Enable |
Recom Power | 1.27 in | 0.36 in | 0.59 in | 20 W | 18 V | 4 A | Through Hole | Non-Isolated PoL Module | 95 % | 5 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 6.5 V | -40 °C | 85 °C | 1 | Active High Enable |
Recom Power | 1.27 in | 0.36 in | 0.59 in | 25 W | 18 V | 5 A | Through Hole | Non-Isolated PoL Module | 94 % | 5 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 7 V | -40 °C | 85 °C | 1 | Active High Enable |
Recom Power | 1.27 in | 0.36 in | 0.59 in | 10 W | 18 V | 4 A | Through Hole | Non-Isolated PoL Module | 91 % | 2.5 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 4.5 V | -40 °C | 85 °C | 1 | Active High Enable |
Recom Power | 1.27 in | 0.59 in | 0.36 in | 20 W | 18 V | 4 A | Right Angle Through Hole | Non-Isolated PoL Module | 95 % | 5 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 6.5 V | -40 °C | 85 °C | 1 | Active High Enable |
Recom Power | 1.27 in | 0.59 in | 0.36 in | 25 W | 18 V | 5 A | Right Angle Through Hole | Non-Isolated PoL Module | 94 % | 5 V | OCP Remote On/Off SCP | 12-SIP Module | ITE (Commercial) | 7 V | -40 °C | 85 °C | 1 | Active High Enable |
