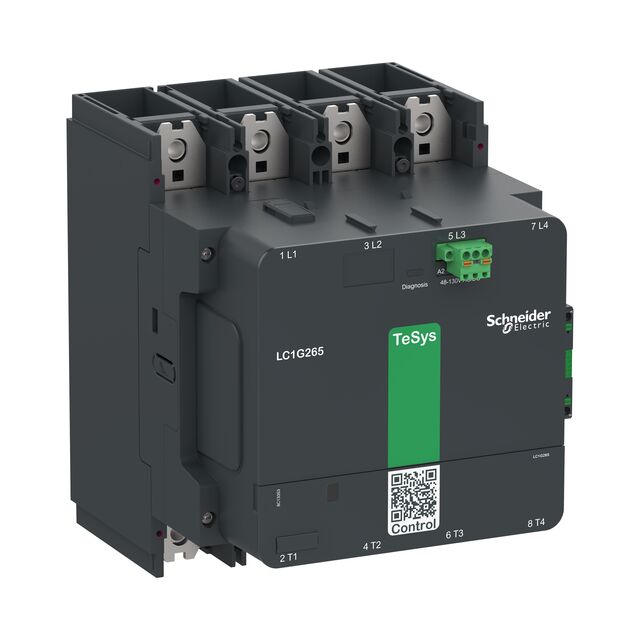

tesys-g Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
CONTACTOR: 4-POLE; NO X4; AUXILIARY CONTACTS: NO + NC; 500A; 1KV
| Part | Contact Rating (Current) | Contact Form | Termination Style | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Coil Voltage [Max] | Coil Voltage [Min] | Mounting Type | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 700 A | 4PST-NO (4 Form A) | Box Lug | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 130 VAC/DC | 48 VAC/DC | Chassis Mount | ||
 SCHNEIDER ELECTRIC | 440 A | 4PST-NO (4 Form A) | Box Lug | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 250 VAC/DC | 100 VAC | Chassis Mount | 70 ms | 50 ms |
 SCHNEIDER ELECTRIC | 500 A | 3PST-NO (3 Form A) | Box Lug | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 500 VAC | 200 VAC/DC | Chassis Mount | 70 ms | 50 ms |
 SCHNEIDER ELECTRIC | 275 A | 4PST-NO (4 Form A) | Spring Terminal | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 500 VAC | 200 VAC/DC | Chassis Mount | 70 ms | 50 ms |
 SCHNEIDER ELECTRIC | 385 A | 4PST-NO (4 Form A) | Box Lug | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 130 VAC/DC | 48 VAC/DC | Chassis Mount | 70 ms | 50 ms |
 SCHNEIDER ELECTRIC | 305 A | 4PST-NO (4 Form A) | Box Lug | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 250 VAC/DC | 100 VAC | Chassis Mount | 70 ms | 50 ms |
 SCHNEIDER ELECTRIC | 500 A | 3PST-NO (3 Form A) | Box Lug | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 130 VAC/DC | 48 VAC/DC | Chassis Mount | ||
 SCHNEIDER ELECTRIC | 25 A | 3PST-NO (3 Form A) | Spring Terminal | 460 VDC 1000 VAC | -40 C | 70 °C | Auxiliary Contacts | 130 VAC/DC | 48 VAC/DC | Chassis Mount | 70 ms | 50 ms |
SCHNEIDER ELECTRIC | 330 A | 4PST-NO (4 Form A) | Spring Terminal | 460 VDC 1000 VAC | -40 C | 70 °C | Auxiliary Contacts | 130 VAC/DC | 48 VAC/DC | Chassis Mount | 70 ms | 50 ms |
SCHNEIDER ELECTRIC | 550 A | 4PST-NO (4 Form A) | Spring Terminal | 460 VDC 1000 VAC | -25 °C | 60 °C | Auxiliary Contacts | 130 VAC/DC | 48 VAC/DC | Chassis Mount | 70 ms | 50 ms |
