HFBR-1414 Series

Catalog

FIBER OPTIC TRANSMITTER, MINIATURE LINK, ST PORT, 820 NM, 160 MBAUD, 2.7 KM, 100 MA, 1.84 V, 3.8 V

Part	Capacitance	Voltage - DC Reverse (Vr) (Max) [Max]	Connector Type	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Wavelength

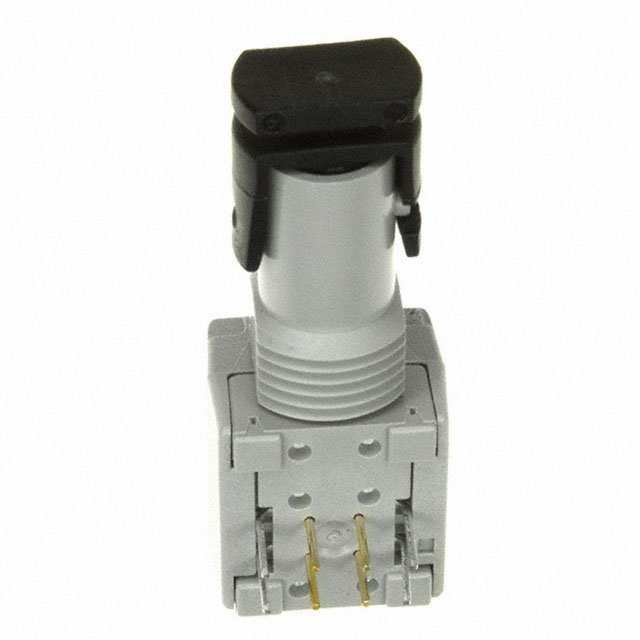

Broadcom Limited HFBR-1414TZ	55 pF	1.8 V	ST	1.7 V	100 mA	820 nm

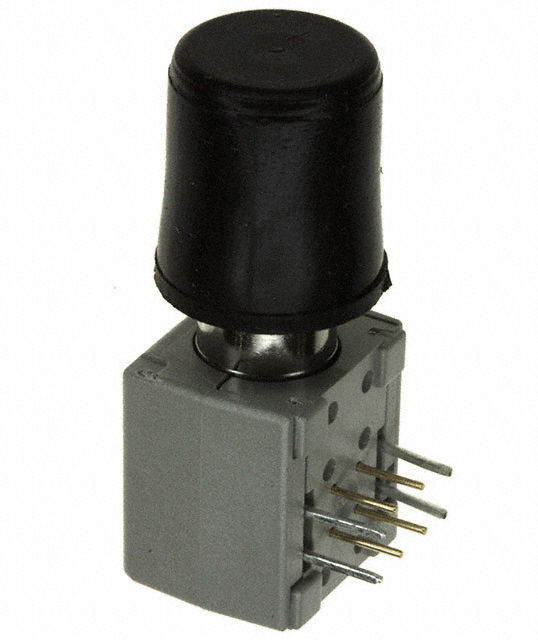

Broadcom Limited HFBR-1414MZ	55 pF	1.8 V	ST	1.7 V	100 mA	820 nm

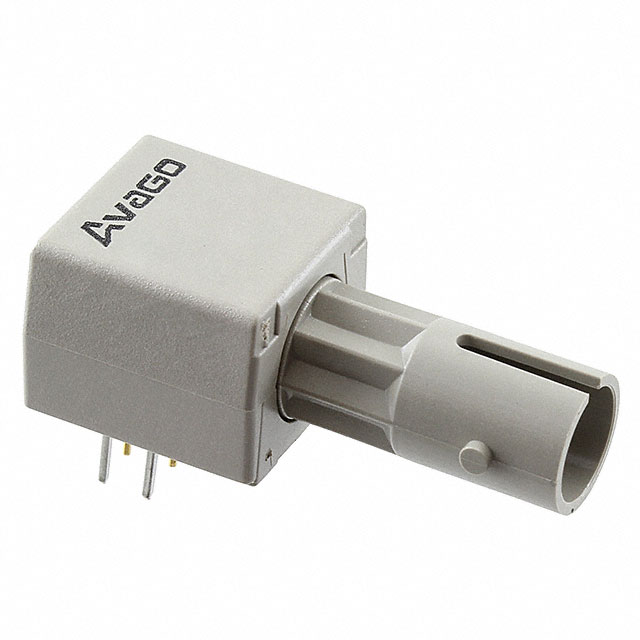

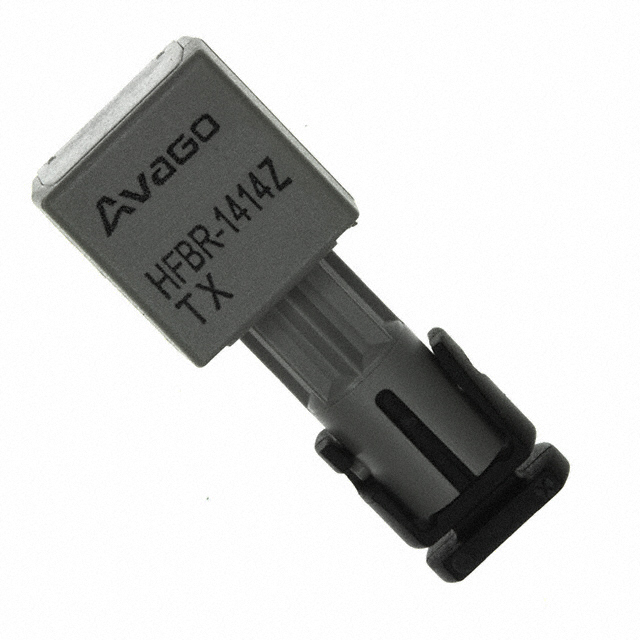

Broadcom Limited HFBR-1414Z	55 pF	1.8 V	ST	1.7 V	100 mA	820 nm

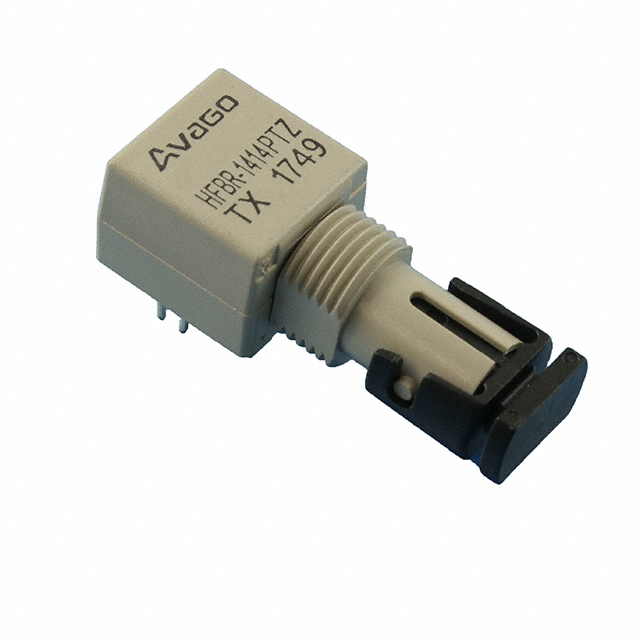

Broadcom Limited HFBR-1414PTZ	55 pF		ST	1.7 V	60 mA	820 nm
Broadcom Limited HFBR-1414PZ	55 pF		ST	1.7 V	60 mA	820 nm
