1MA TO-5 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

INDUSTRIAL RELAYS 12V MICRO MIN RELAY 1 FORM C (SPDT) 1 CO

Part	Seal Rating	Must Release Voltage	Contact Rating (Current)	Switching Voltage [Max]	Operate Time	Load - Max Switching	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Contact Form	Relay Type	Termination Style	Must Operate Voltage	Mounting Type	Features	Coil Type	Coil Current	Contact Material	Coil Resistance	Grade	Qualification
TE Connectivity AMP Connectors J1MACD-12XMS	Sealed - Hermetically	0.63 VDC	1 A	28 VDC 115 VAC	2 ms	28 W 115 VA	4 ms	-65 ░C	125 °C	12 VDC	SPDT (1 Form C)	General Purpose	PC Pin	7 VDC	Through Hole	Diode	Non Latching	24 mA	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors J1MAWD-5XL	Sealed - Hermetically	0.23 VDC	1 A	28 VDC 115 VAC	2 ms	28 W 115 VA	4 ms	-65 ░C	125 °C	5 VDC	SPDT (1 Form C)	General Purpose	PC Pin	2.8 VDC	Through Hole	Diode	Non Latching	79.4 mA	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors J1MAP-26XM	Sealed - Hermetically	1.37 VDC	1 A	28 VDC 115 VAC	2 ms	28 W 115 VA	2 ms	-65 ░C	125 °C	26.5 VDC	SPDT (1 Form C)	General Purpose	PC Pin	14.2 VDC	Through Hole		Non Latching	13.3 mA	Gold (Au) Silver Palladium (AgPd)	2 kOhms	Military	MIL-R-39016/7
TE Connectivity AMP Connectors J1MAPDD-5XL	Sealed - Hermetically	0.23 VDC	1 A	28 VDC 115 VAC	2 ms	28 W 115 VA	4 ms	-65 ░C	125 °C	5 VDC	SPDT (1 Form C)	General Purpose	PC Pin	3.5 VDC	Through Hole	Diode	Non Latching	0.1 A	Gold (Au) Silver Palladium (AgPd)

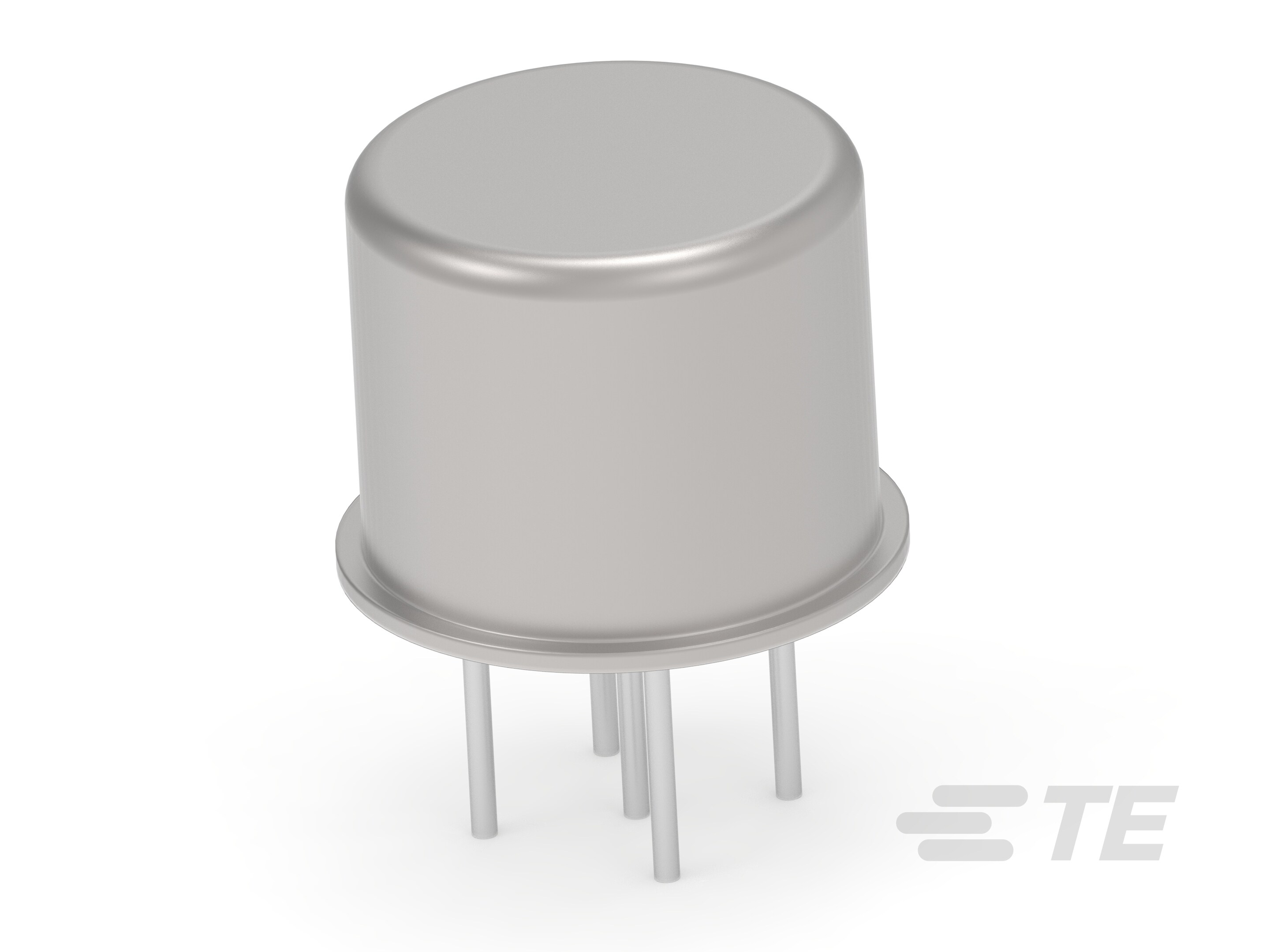

TE Connectivity AMP Connectors J1MAPD-26XP	Sealed - Hermetically	1.37 VDC	1 A	28 VDC 115 VAC	2 ms	28 W 115 VA	4 ms	-65 ░C	125 °C	26.5 VDC	SPDT (1 Form C)	General Purpose	PC Pin	14.2 VDC	Through Hole	Diode	Non Latching	13.3 mA	Gold (Au) Silver Palladium (AgPd)
