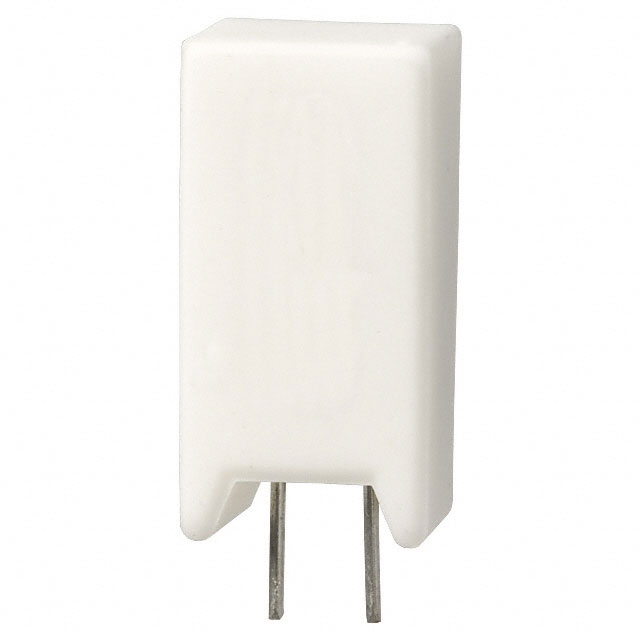

TWM Series

Manufacturer: Ohmite

Catalog

METAL OXIDE RESISTORS 4.7K OHM 7W 5% METAL OXIDE RADIAL

Part	Number of Terminations [custom]	Package / Case	Supplier Device Package	Tolerance	Features	Composition	Temperature Coefficient	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Ohmite TWM7J4K7E	2	Radial	Radial	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	4.7 kOhms	-55 C	275 °C	7 W
Ohmite TWM3J390E	2	Radial	Radial Radial Lead	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	390 Ohms	-55 C	275 °C	3 W	0.335 in 0.354 in	12.5 mm	8.5 mm 9 mm	0.492 "	26 mm	1.024 in
Ohmite TWM5J75RE	2	Radial	Radial	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	75 Ohms	-55 C	275 °C	5 W	0.354 in	12.5 mm	9 mm	0.492 "	26 mm	1.024 in
Ohmite TWM7J2K0E	2	Radial	Radial	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	2 kOhms	-55 C	275 °C	7 W	0.354 in	13 mm	9 mm	0.512 "			40.5 mm	1.594 in

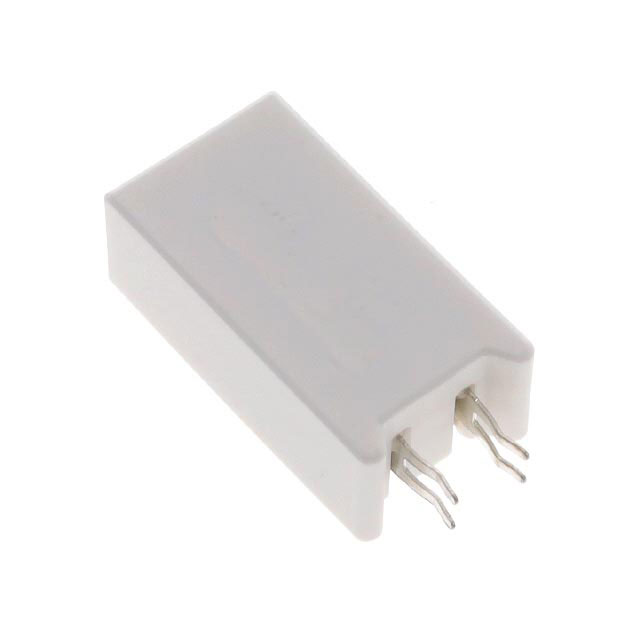

Ohmite TWM15J7K5E	2	Radial	Radial	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	7.5 kOhms	-55 C	275 °C	15 W	0.512 "	20 mm	13 mm	0.787 "		1.535 in			39 mm
Ohmite TWM5J3K9E	2	Radial	Radial Radial Lead	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	3.9 kOhms	-55 C	275 °C	5 W	0.354 in	12.5 mm	9 mm	0.492 "	26 mm	1.024 in
Ohmite TWM3J1K5E	2	Radial	Radial Radial Lead	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	1500 Ohms	-55 C	275 °C	3 W	0.335 in 0.354 in	12.5 mm	8.5 mm 9 mm	0.492 "	26 mm	1.024 in
Ohmite TWM7J4K3E	2	Radial	Radial	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	4.3 kOhms	-55 C	275 °C	7 W
Ohmite TWM3J68RE	2	Radial	Radial	5 %	Flame Proof Safety	Metal Oxide Film	350 ppm/°C	68 Ohms	-55 C	275 °C	3 W	0.354 in	12.5 mm	9 mm	0.492 "	26 mm	1.024 in
