T9GV1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 110V
| Part | Coil Resistance | Must Operate Voltage | Relay Type | Contact Form | Load - Max Switching | Coil Type | Mounting Type | Release Time | Coil Insulation | Operate Time | Switching Voltage [Max] | Must Release Voltage | Coil Voltage | Contact Material | Seal Rating | Termination Style | Approval Agency | Contact Rating (Current) | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

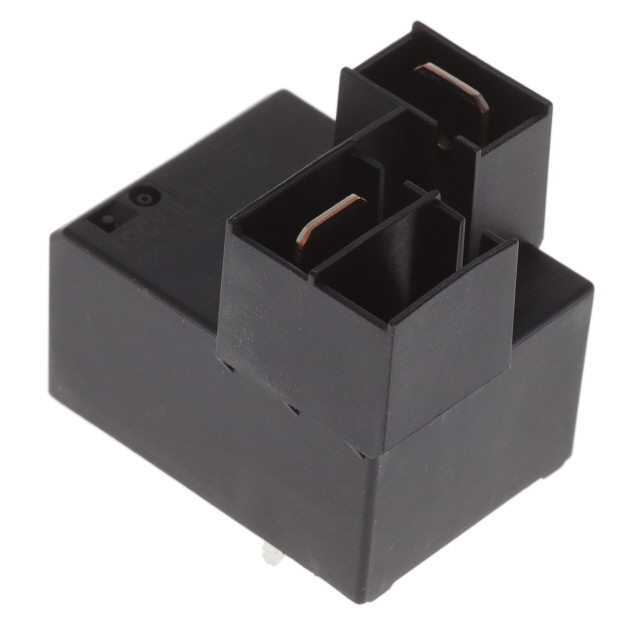

 TE Connectivity AMP Connectors | 13.4 kOhms | 82.5 VDC | General Purpose | SPST-NO (1 Form A) | 14400 VA | Non Latching | Through Hole | 22 ms | Class B | 15 ms | 480 VAC | 11 VDC | 110 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | PC Pin Quick Connect - 0.250" (6.3mm) | CQC cURus VDE | 30 A | 8.2 mA | -40 C | 105 ░C |

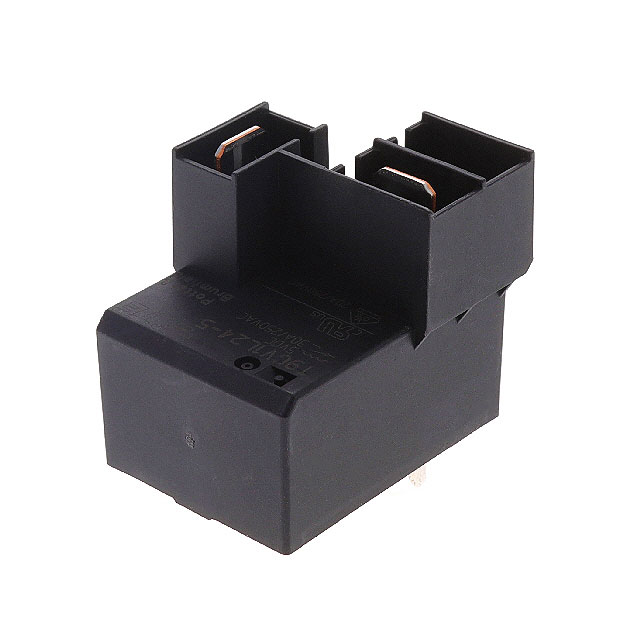

 TE Connectivity AMP Connectors | 28 Ohms | 3.75 VDC | General Purpose | SPST-NO (1 Form A) | 14400 VA | Non Latching | Through Hole | 22 ms | Class B | 15 ms | 480 VAC | 0.5 VDC | 5 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | PC Pin Quick Connect - 0.250" (6.3mm) | CQC cURus VDE | 30 A | 180 mA | -40 C | 105 ░C |

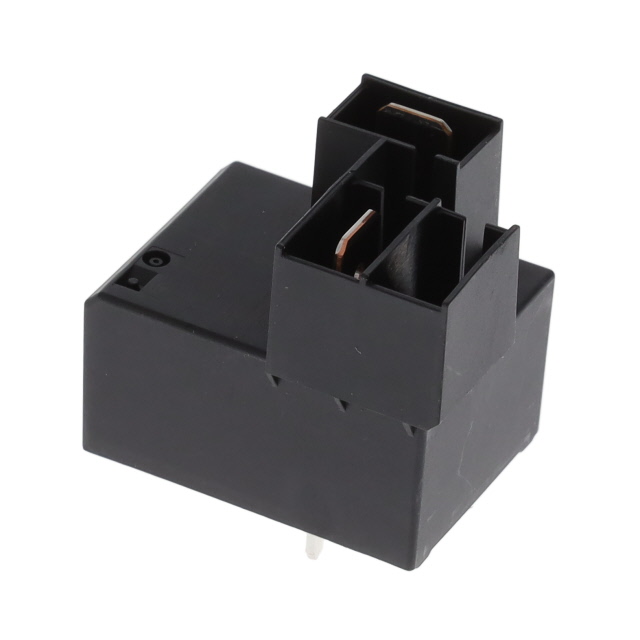

 TE Connectivity AMP Connectors | 2500 Ohms | 36 VDC | General Purpose | SPST-NO (1 Form A) | 14400 VA | Non Latching | Through Hole | 22 ms | Class B | 15 ms | 480 VAC | 4.8 VDC | 48 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | PC Pin Quick Connect - 0.250" (6.3mm) | CQC cURus VDE | 30 A | 18.8 mA | -40 C | 105 ░C |
