LCXP Series

Catalog

POWER INDUCTORS - SMD HIGH QUALITY, INDUCTOR SMD POWER, 4.7UH20% ,T&R

Part	Supplier Device Package	Mounting Type	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Ratings	Tolerance	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Type	DC Resistance (DCR)	Current Rating (Amps)	Material - Core	Inductance Frequency - Test	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Taiyo Yuden LCXPD2020KKT4R7M0G	1212	Surface Mount	Unshielded	3 mm	0.118 in	3 mm	0.118 "	760 mA	AEC-Q200	20 %	3030 Metric	1212	125 °C	-40 C	0.039 in	1 mm	4.7 ÁH	Wirewound	320 mOhm	820 mA	Ferrite	100 kHz
Taiyo Yuden LCXPD3030MKT4R7M	1212	Surface Mount	Unshielded	3 mm	0.118 in	3 mm	0.118 "	1.25 A	AEC-Q200	20 %	3030 Metric	1212	125 °C	-40 C			4.7 ÁH	Wirewound	190 mOhm	0.85 A	Ferrite	100 kHz	48 MHz	1.2 mm	0.047 "

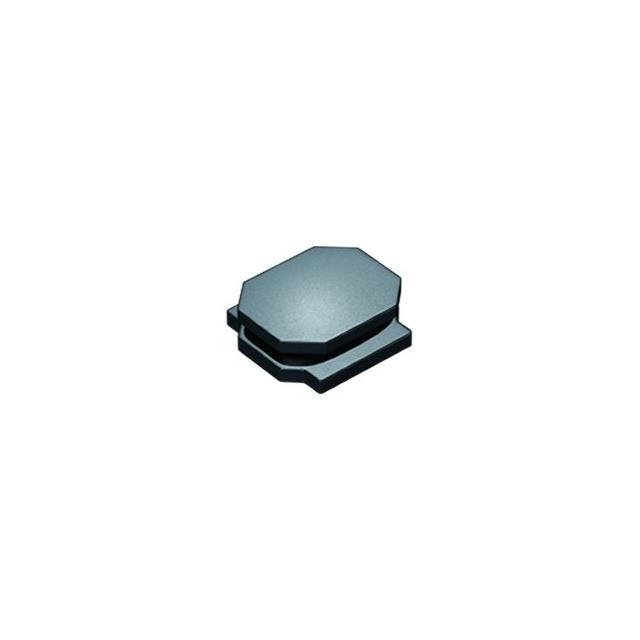

Taiyo Yuden LCXPD3030MKT1R0N	1212	Surface Mount	Unshielded	3 mm	0.118 in	3 mm	0.118 "	2.5 A	AEC-Q200	30 %	3030 Metric	1212	125 °C	-40 C			1 µH	Wirewound	65 mOhm	1.6 A	Ferrite	100 kHz	110 MHz	1.2 mm	0.047 "
