1432826 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

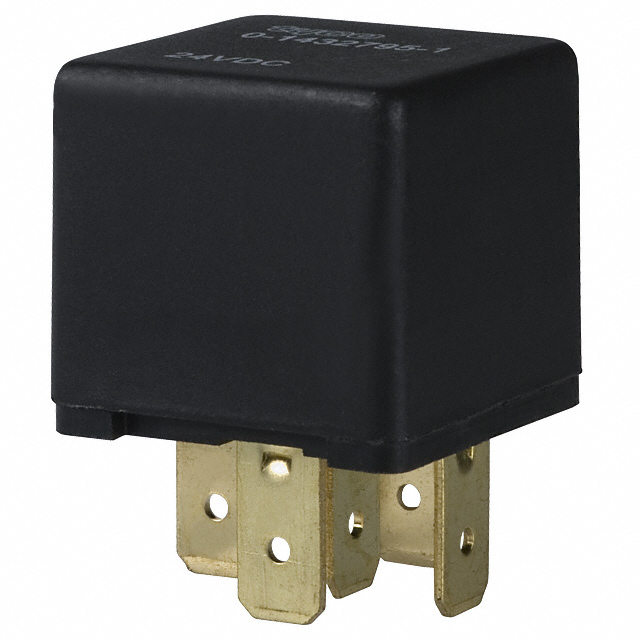

POWER RELAY 24VDC SPDT(26.5X26.5X24.5)MM SOCKET
| Part | Coil Resistance | Switching Voltage | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Form | Must Release Voltage | Coil Type | Coil Voltage | Operate Time | Contact Material | Coil Current | Contact Rating (Current) | Termination Style | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 360 Ohms | 14 VDC | 5 ms | 85 °C | -40 C | Socketable | SPDT (1 Form C) | 2.4 VDC | Non Latching | 24 VDC | 8 ms | Silver Tin Oxide (AgSnO) | 66.7 mA | 30 A | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
