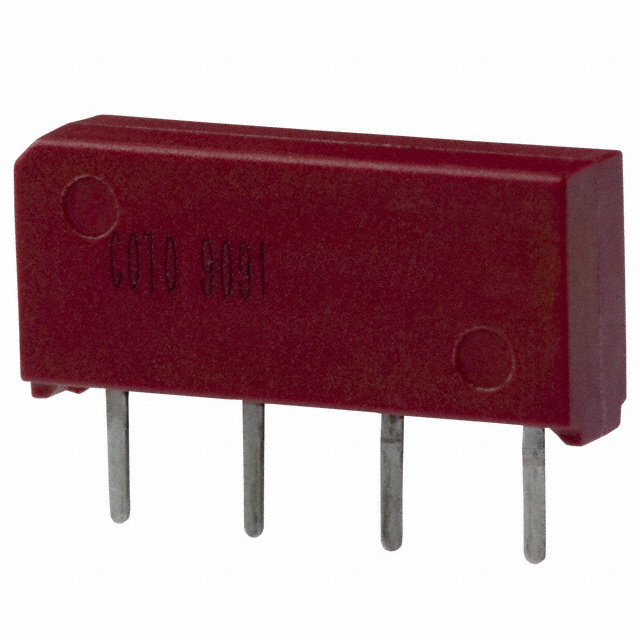

9091 Series

Catalog

REED RELAY, SPST-NO, 5 VDC, 9091 SERIES, THROUGH HOLE, 500 OHM, 500 MA

Part	Coil Resistance	Must Operate Voltage	Contact Form	Coil Type	Release Time	Contact Rating (Current)	Switching Voltage [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Features	Must Release Voltage	Termination Style	Operate Time	Coil Current
COTO TECHNOLOGY 9091-05-11	500 Ohms	3.75 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	5 VDC	Diode EMI Shielded	0.4 VDC	PC Pin	500 µs	10 mA
COTO TECHNOLOGY 9091-12-10	1 kOhms	9 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	12 VDC	EMI Shielded	1 VDC	PC Pin	500 µs	12 mA
COTO TECHNOLOGY 9091-12-01	1 kOhms	9 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	12 VDC	Diode	1 VDC	PC Pin	500 µs	12 mA
COTO TECHNOLOGY 9091-05-00	500 Ohms	3.75 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	5 VDC		0.4 VDC	PC Pin	500 µs	10 mA
COTO TECHNOLOGY 9091-12-11	1 kOhms	9 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	12 VDC	Diode EMI Shielded	1 VDC	PC Pin	500 µs	12 mA
COTO TECHNOLOGY 9091-05-10	500 Ohms	3.75 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	5 VDC	EMI Shielded	0.4 VDC	PC Pin	500 µs	10 mA
COTO TECHNOLOGY 9091-05-01	500 Ohms	3.75 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	5 VDC	Diode	0.4 VDC	PC Pin	500 µs	10 mA
COTO TECHNOLOGY 9091-12-00	1 kOhms	9 VDC	SPST-NO (1 Form A)	Non Latching	0.3 ms	0.5 A	200 VDC 200 VAC	Through Hole	85 °C	-20 ░C	12 VDC		1 VDC	PC Pin	500 µs	12 mA
