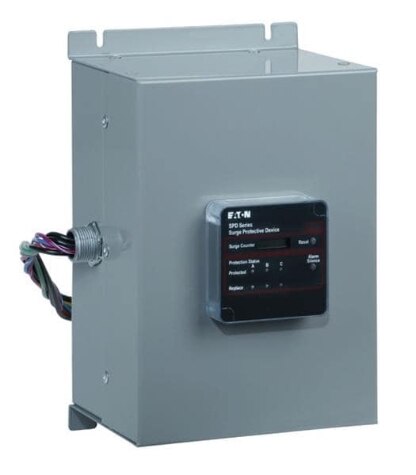

BSPD Series
Surge Suppressors SPD, 200KA, STD PKG., NEMA 4X ENC.
Manufacturer: Eaton - Electronics Division
Catalog
Surge Suppressors SPD, 200KA, STD PKG., NEMA 4X ENC.
Beta
⌘K
Surge Suppressors SPD, 200KA, STD PKG., NEMA 4X ENC.
Surge Suppressors SPD, 200KA, STD PKG., NEMA 4X ENC.
Surge Suppressors SPD, 200KA, STD PKG., NEMA 4X ENC.
| Part | Form | Number of Poles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Protection Rating (VPR) | Approval Agency | Current - Short Circuit Rating (SCCR) | Features | Voltage - Continuous Operating (Max) (MCOV) [Max] | Mounting Type | Type | Current - Discharge (Nom) (8/20µS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Base + Module | 1 | -40 C | 50 °C | 2 kV | CSA UL | 200 kA | Thermally Protected | 480 VAC | Chassis Mount | Type 1 | 20 kA |
 Eaton - Electronics Division | Base + Module | 1 | -40 C | 50 °C | 1 kV | CSA UL | 200 kA | Thermally Protected | 240 VAC | Chassis Mount | Type 2 | 20 kA |
Eaton - Electronics Division | Base + Module | 1 | -40 C | 50 °C | 1.5 kV | CSA UL | 200 kA | Thermally Protected | 208 VAC | Chassis Mount | Type 2 | 20 kA |
Eaton - Electronics Division | Base + Module | 1 | -40 C | 50 °C | 2.5 kV | CSA UL | 200 kA | Thermally Protected | 480 VAC | Chassis Mount | Type 2 | 20 kA |
Eaton - Electronics Division | Base + Module | 1 | -40 C | 50 °C | 2.5 kV | CSA UL | 200 kA | Thermally Protected | 600 VAC | Chassis Mount | Type 2 | 20 kA |
Eaton - Electronics Division | Base + Module | 1 | -40 C | 50 °C | 2.5 kV | CSA UL | 200 kA | Thermally Protected | 600 VAC | Chassis Mount | Type 1 | 20 kA |
