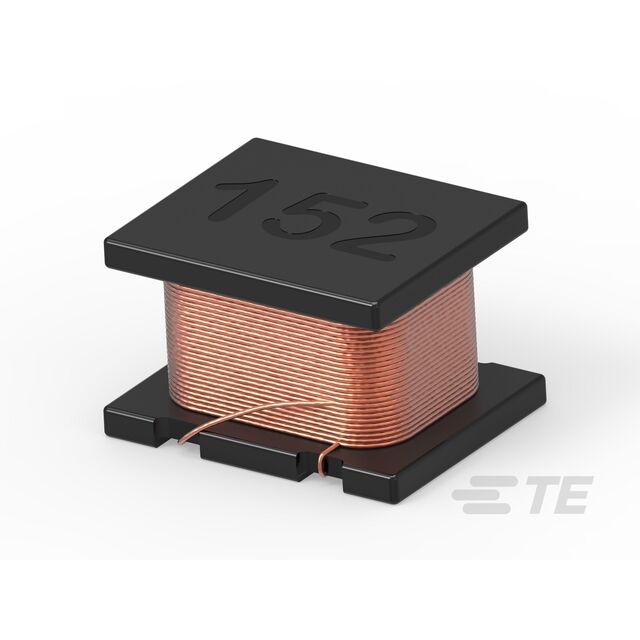

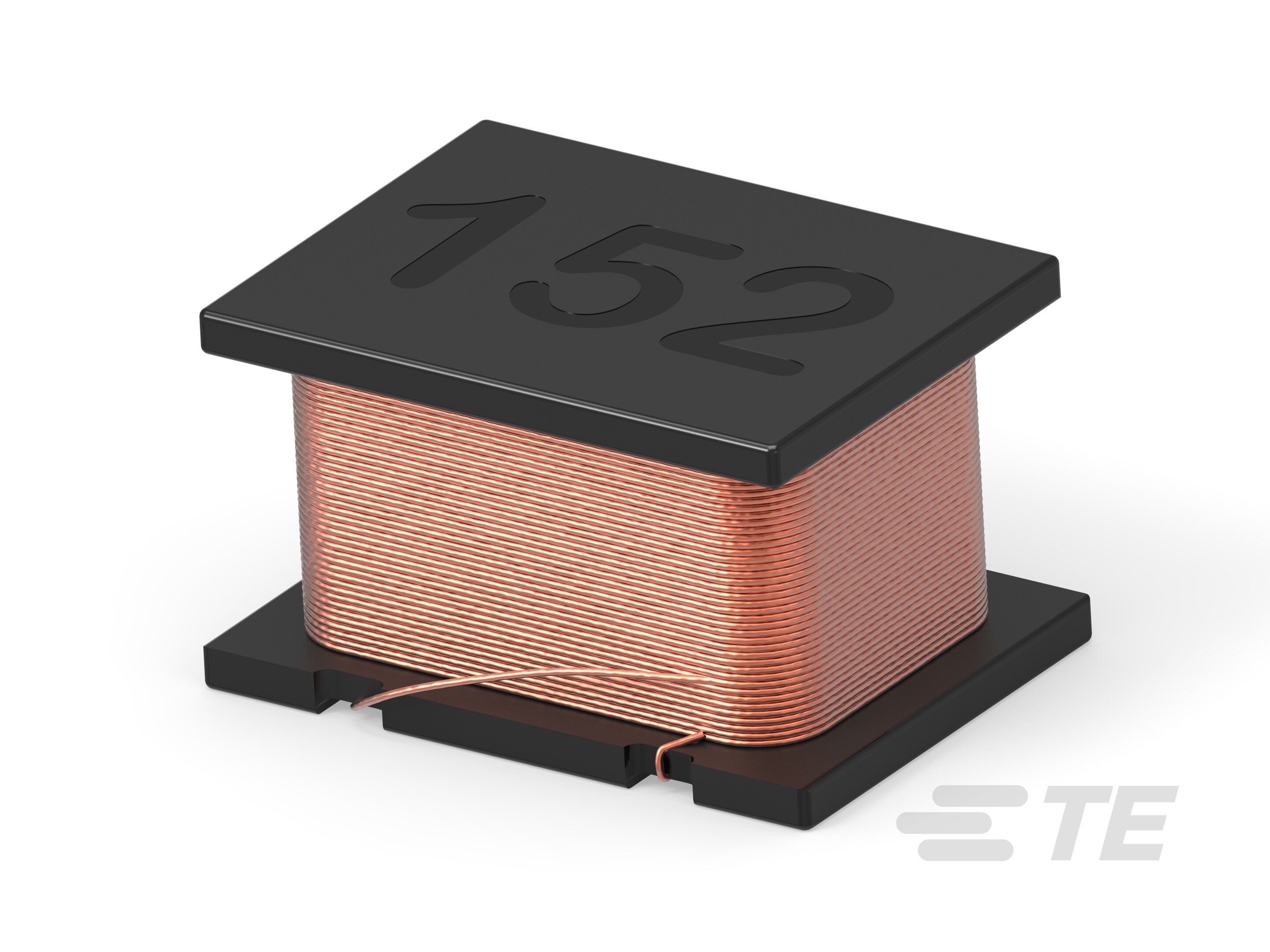

Sigma 3627 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

FIXED IND 6.8UH 2A 0.104OHM SMD

...

Part	Inductance Frequency - Test	Supplier Device Package	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Package / Case	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Material - Core	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Supplier Device Package	DC Resistance (DCR)	Frequency - Self Resonant	Height - Seated (Max) [Max]
TE Connectivity AMP Connectors 3627575047C6R8M	1 MHz	2220	104 mOhm	2 A	2220	5750 Metric	Surface Mount	Wirewound	125 °C	-40 C	6.8 µH	0.197 in	5 mm	Unshielded	Ferrite	5.7 mm	0.224 "	0.197 "	5 mm	20 %
TE Connectivity AMP Connectors 3627575047C150K	1 MHz	2220	210 mOhm	1.4 A	2220	5750 Metric	Surface Mount	Wirewound	125 °C	-40 C	15 µH	0.197 in	5 mm	Unshielded	Ferrite	5.7 mm	0.224 "	0.197 "	5 mm	10 %
TE Connectivity AMP Connectors 36274532264R7K	1 MHz		400 mOhm	0.5 A	1812 (4532 Metric)		Surface Mount	Wirewound	125 °C	-40 C	4.7 ÁH			Unshielded	Ferrite	4.5 mm	0.177 in	0.126 in		10 %	0.118 "	3 mm	3.2 mm
TE Connectivity AMP Connectors 3627322515100K	1 MHz			0.45 A	1210	3225 Metric	Surface Mount	Wirewound	125 °C	-40 C	10 µH			Unshielded	Ferrite	3.2 mm	0.126 "	0.098 in		10 %	0.073 in	1.85 mm	2.5 mm	1210	420 mOhm	26 MHz
TE Connectivity AMP Connectors 3627322520101K	1 MHz			80 mA	1210	3225 Metric	Surface Mount	Wirewound	125 °C	-40 C	100 µH		0.091 in	Unshielded	Ferrite	3.2 mm	0.126 "	0.098 in		10 %			2.5 mm	1210			2.3 mm
TE Connectivity AMP Connectors 3627322515470K	1 MHz		2.2 Ohm	0.17 A	1210	3225 Metric	Surface Mount	Wirewound	125 °C	-40 C	47 µH			Unshielded	Ferrite	3.2 mm	0.126 "	0.098 in		10 %	0.073 in	1.85 mm	2.5 mm	1210		13 MHz
TE Connectivity AMP Connectors 3627322520221K	1 MHz		11.8 Ohm	0.065 A	1210	3225 Metric	Surface Mount	Wirewound	125 °C	-40 C	220 µH		0.091 in	Unshielded	Ferrite	3.2 mm	0.126 "	0.098 in		10 %			2.5 mm	1210			2.3 mm
TE Connectivity AMP Connectors 3627575047C1R5M	1 MHz	2220	31 mOhm	3.7 A	2220	5750 Metric	Surface Mount	Wirewound	125 °C	-40 C	1.5 µH	0.197 in	5 mm	Unshielded	Ferrite	5.7 mm	0.224 "	0.197 "	5 mm	20 %
TE Connectivity AMP Connectors 36273225201R0M	1 MHz		500 mOhm	445 mA	1210	3225 Metric	Surface Mount	Wirewound	125 °C	-40 C	1 µH		0.091 in	Unshielded	Ferrite	3.2 mm	0.126 "	0.098 in		20 %			2.5 mm	1210			2.3 mm
TE Connectivity AMP Connectors 3627575047C680K	1 MHz	2220	938 mOhm	0.64 A	2220	5750 Metric	Surface Mount	Wirewound	125 °C	-40 C	68 µH	0.197 in	5 mm	Unshielded	Ferrite	5.7 mm	0.224 "	0.197 "	5 mm	10 %
