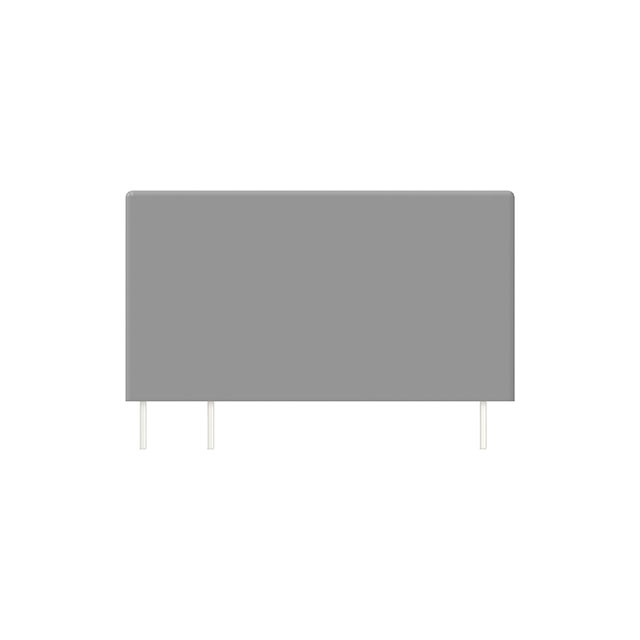

1415534 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
RTD34012WG
| Part | Coil Resistance | Coil Insulation | Contact Form | Switching Voltage [Max] | Load - Max Switching | Contact Material | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Contact Rating (Current) | Relay Type | Operate Time | Approval Agency | Coil Current | Must Operate Voltage | Termination Style | Release Time | Must Release Voltage | Mounting Type | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 360 Ohms | Class F | SPST-NO (1 Form A) | 400 VAC | 6400 VA | Silver Nickel (AgNi) | Non Latching | 85 °C | -40 C | 12 VDC | 16 A | General Purpose | 8 ms | CQC CSA cURus VDE | 33.3 mA | 8.4 VDC | PC Pin | 6 ms | 1.2 VDC | Through Hole | Sealed - Fully |
