3382-4S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

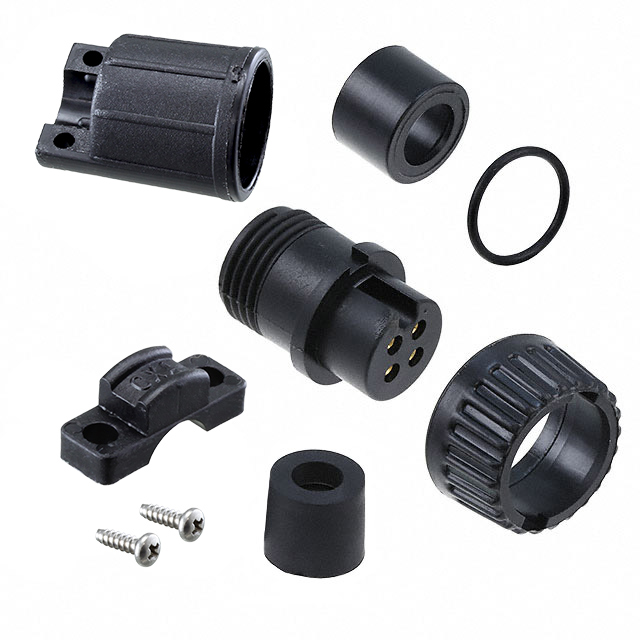

CONN PLUG FMALE 4P GOLD SLDR CUP
| Part | Shielding | Fastening Type | Color | Connector Type | Contact Finish - Mating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Backshell Material, Plating | Mounting Type | Primary Material | Voltage Rating | Features | Orientation | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Unshielded | Bayonet Lock | Black | Plug Female Sockets | Gold | 6.86 mm | 0.24 " | 0.27 " | 6.1 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Plastic | 600 V | Backshell Cable Clamp | Keyed | Brass | 115 °C | -40 C | Weathertight | 4 |
 SWITCHCRAFT/CONXALL | Unshielded | Bayonet Lock | Black | Plug Female Sockets | Gold | 8.13 mm | 0.3 in | 0.32 in | 7.62 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Plastic | 600 V | Backshell | Keyed | Brass | 115 °C | -40 C | Weathertight | 4 |
 SWITCHCRAFT/CONXALL | Unshielded | Bayonet Lock | Black | Plug Female Sockets | Gold | 4.32 mm | 0.15 " | 0.17 in | 3.81 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Plastic | 600 V | Backshell | Keyed | Brass | 115 °C | -40 C | Weathertight | 4 |
SWITCHCRAFT/CONXALL | Unshielded | Bayonet Lock | Black | Plug Female Sockets | Gold | 8.13 mm | 0.3 in | 0.32 in | 7.62 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Plastic | 600 V | Backshell Cable Clamp | Keyed | Brass | 115 °C | -40 C | Weathertight | 4 |
 SWITCHCRAFT/CONXALL | Unshielded | Bayonet Lock | Black | Plug Female Sockets | Gold | 7.37 mm | 0.28 in | 0.29 in | 7.11 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Plastic | 600 V | Backshell Cable Clamp | Keyed | Brass | 115 °C | -40 C | Weathertight | 4 |
SWITCHCRAFT/CONXALL | Unshielded | Bayonet Lock | Black | Plug Female Sockets | Gold | 5.08 mm | 0.18 " | 0.2 " | 4.57 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Plastic | 600 V | Backshell Cable Clamp | Keyed | Brass | 115 °C | -40 C | Weathertight | 4 |
SWITCHCRAFT/CONXALL | Unshielded | Bayonet Lock | Black | Plug Female Sockets | Gold | Nylon Polyamide (PA) | Free Hanging (In-Line) | Plastic | 600 V | Backshell | Keyed | Brass | 115 °C | -40 C | Weathertight | 4 |
